CAME BX STRONG TOP set for sliding gates weighing up to 800 kg
Professional automation set CAME BX STRONG TOP designed for sliding gates weighing up to 800 kg and up to 14 m in length. It combines power, reliability and advanced electronics with modern design.
- 230V motor with high thrust - for intensive operation
- ZBX7N control panel with display and Memory Roll function
- Optimum smoothness of operation and precise braking
- Optical encoder for safe operation
- Compatible with CAME CONNECT and CAME KEY systems
Key benefits
- Drive dedicated to gates up to 800 kg and 14 meters in length
- Robust housing in anthracite color with IP44 protection class
- Full control and diagnostics through the control unit ZBX7N
- Smooth start and stop function
- Possibility of remote control via CAME CONNECT

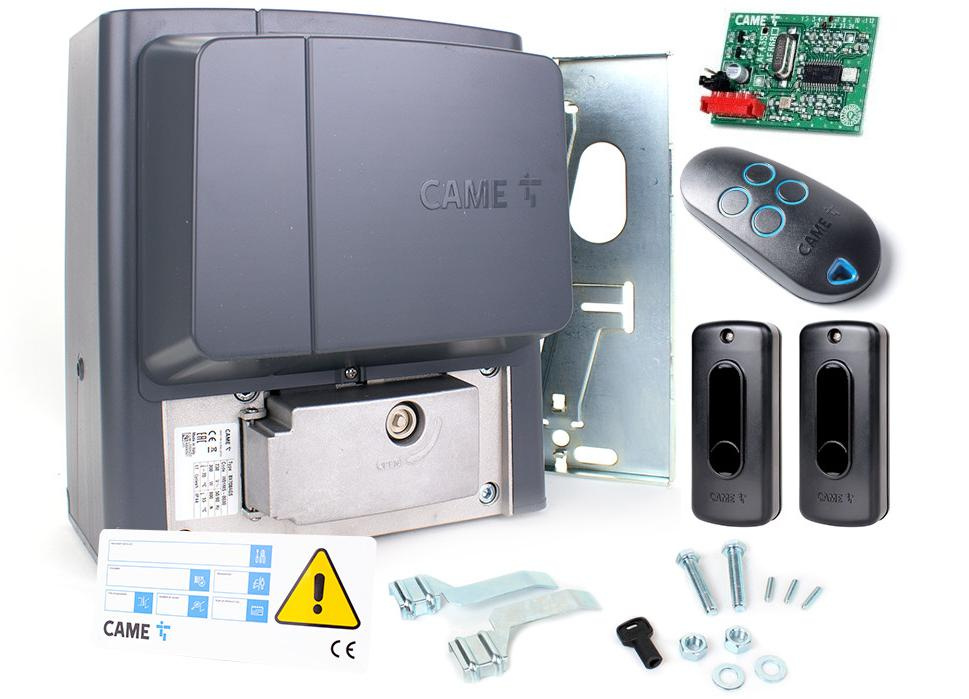

Features and equipment

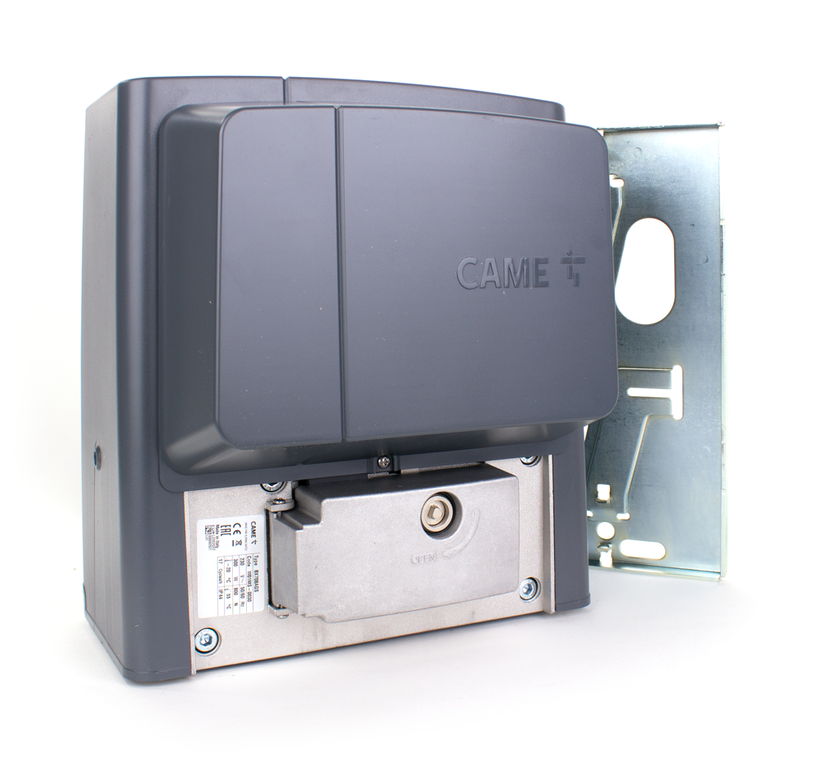

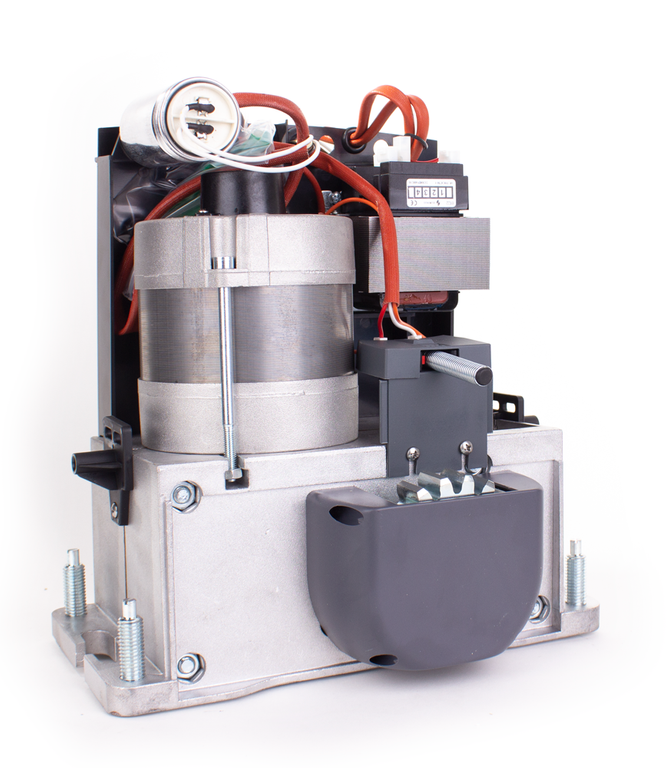

- Actuator: CAME BX STRONG (BX708AGS) 230V

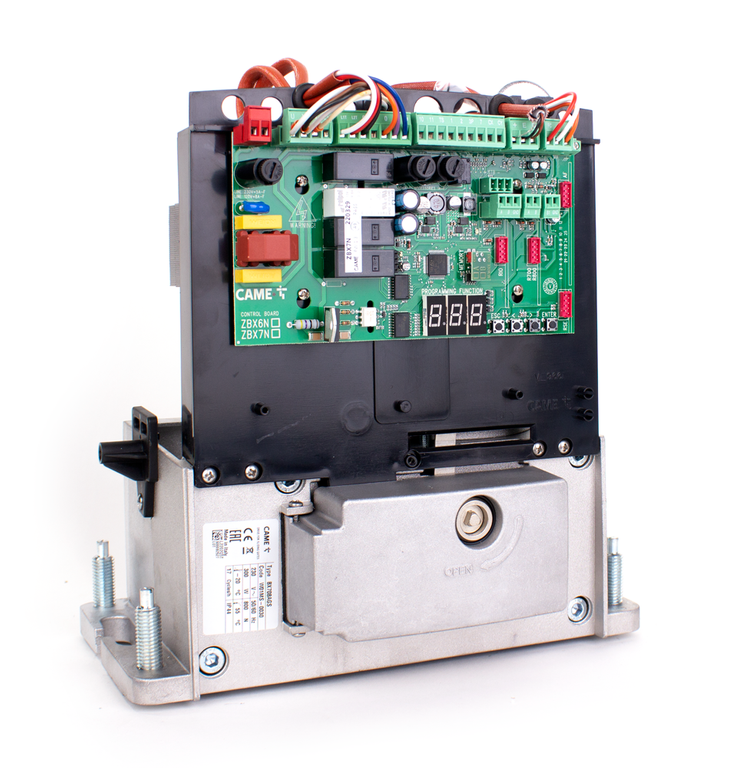

- Control panel: ZBX7N with LCD display

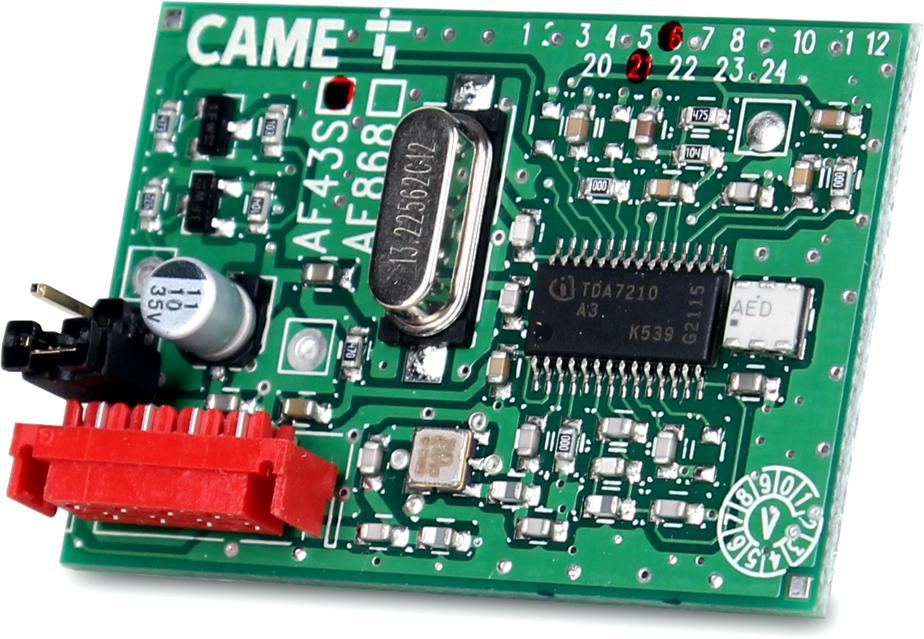

- Radio card: AF43S

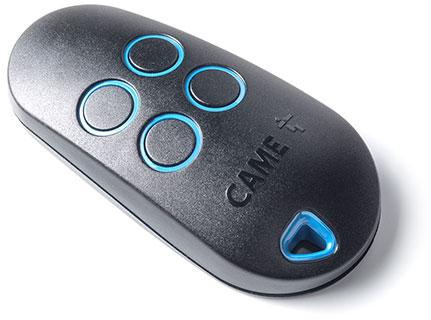

- Remote control: CAME TOP - four-channel

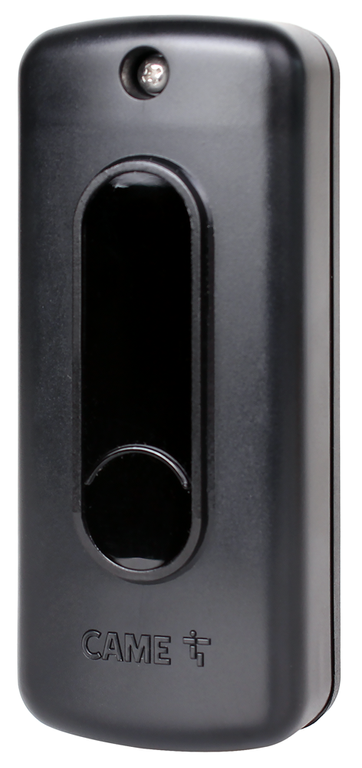

- Photocells: DIR10

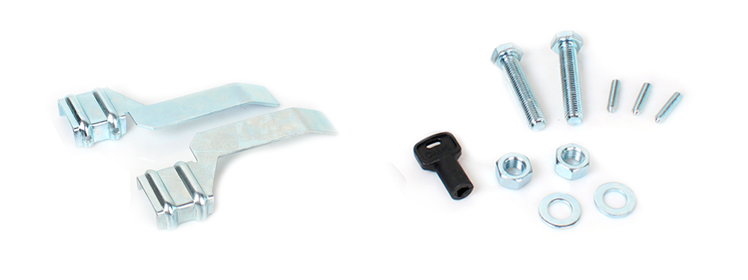

- Steel foundation plate and compLet mounting accessories
- Two compLets of declutching keys
- Mechanical limit switches
Application
The CAME BX STRONG TOP operator is ideal for residential, estate and industrial sliding gates. Robust motor and control panel with large configuration possibilities ensure long-term and safe operation in all conditions.
Technical data
| Actuator type | BX708AGS |
| Maximum weight of the leaf | 800 kg |
| Maximum leaf length | 14 m |
| Power supply | 230V AC |
| Motor power | 530 W |
| Thrust | 800 N |
| Traverse speed | 10 m/min |
| Duty cycle | 30% |
| Degree of protection | IP44 |
| Working temperature | -20°C to +55°C |
| Capacitor | 20 μF |
| Power consumption (standby) | 2.4 W |
| Power consumption with RGP1 module | 0.5 W |
| Motor protection | 150°C |
Summary
The CAME BX STRONG TOP set is a strong, durable and intelligent sliding gate automation that guarantees smooth, safe and modern operation every day.
brand=CAME, model=BX STRONG TOP (BX708AGS), coil=No, warranty=5 years, return_policy=30 days, power=530W, voltage=230V AC, connectivity=CAME CONNECT / CAME KEY, appLication=Sliding gates up to 800kg and 14m, material=Metal/ABS, color=Anthracite
FAQ (customer)
- Q: Does it include installation accessories? A: Yes, basic mounting accessories are included.
- Q: Can it be used outdoors? A: Yes, the housing is weather-resistant (IP44).
- Q: Is it compatible with smart home systems? A: Yes, through the CAME CONNECT pLatform.
- Q: How long is the warranty? A: The warranty period is 5 years.
- Q: Can I program it via smartphone? A: Yes, using the CAME KEY interface and mobile app.
FAQ (expert)
- Q: What communication protocols are supported? A: Compatible with CAME CONNECT and KNX integration.
- Q: What’s the nominal input voltage tolerance? A: ±10% of rated voltage.
- Q: Does it support firmware updates? A: Yes, via CAME KEY connection.
- Q: What’s the IP protection rating? A: IP44.
- Q: Can it be integrated with BMS systems? A: Yes, through RS-485 or Ethernet interface.
