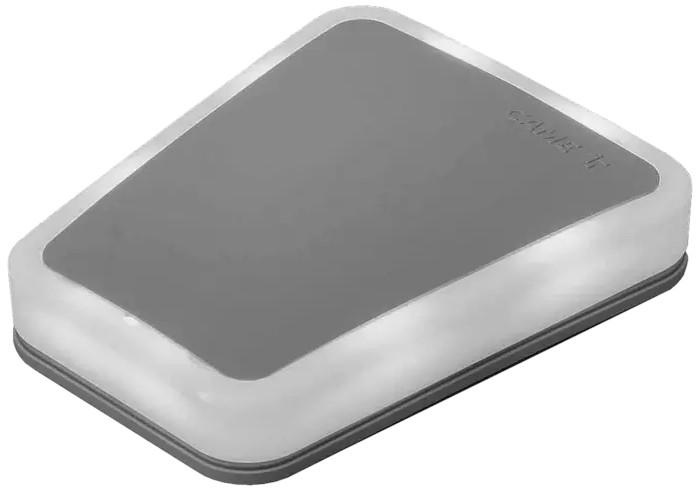

CAME KLT1FDSW LED RGW 24V lamp (806LA-0060)

Key benefits

• Universal 24V AC/DC power supply - one lamp for multiple controllers and panels.
• Flexible signaling: flashing light as standard or steady light after changing the bridge setting.
• One luminaire, three colors: red, green, white - easy adaptation to signaling functions.
• Integrated antenna with 433.92 MHz and 868.35 MHz frequencies, beneficial for automation installations.
• Rugged IP54 construction with PA6 and PMMA - durable in typical outdoor conditions.

Features and equipment

• Operating modes: flashing (factory) or steady light after cutting the bridge on the lamp board.
• Light signal personalization: selectable red, green and white LEDs.
• Built-in antenna with two frequencies: 433.92 MHz and 868.35 MHz.
• Low power consumption: rated power of 3 W.

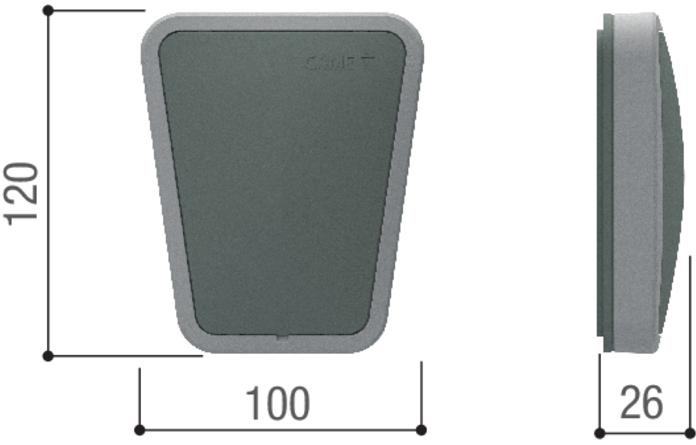

• Compact housing for easy installation in limited space.

Application and installation

The light is designed to be mounted on CAME GARD GT4/GT8 and LS4/LS6 series barrier housings or directly on the wall. With 24V AC/DC power supply, it integrates with popular automation control panels. Permanent light mode setting is realized by cutting the bridge on the lamp board, according to the manufacturer's instructions.

TECHNICAL DATA

SUMMARY

CAME KLT1FDSW is a versatile 24V AC/DC signal lamp with three LED colors, flashing or fixed mode and built-in dual-frequency antenna, designed for GARD barriers and wall mounting.
