Dahua IP surveillance set of 8 2MP PTZ cameras with DVR and 1TB drive

Dahua IP Surveillance Kit - 8 2MP PTZ Cameras with DVR and 1TB Drive

A comprehensive solution for effective monitoring of your home, office or business.

---

Key Features:

• Technology: IP
• Number of cameras: 8 pcs
• Camera resolution: 2MP (Full HD)
• Illuminator range: up to 50m
• Camera housing type: PTZ
• System support: Android, iOS, Windows

---

Detailed Technical Parameters:

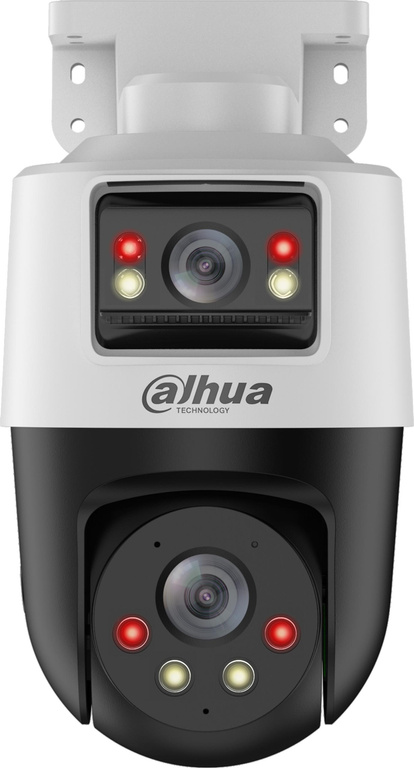

Dahua IP camera SDT2A200-2F-NB-A-PV

• Sensor: 1/2.8" 2-megapixel CMOS sensor
• Lens: 2x 2MP dual lens
• Functions: People and vehicle detection, two-way voice communication
• Night illumination: IR and warm light, three night view modes
• Encoding: H.265
• Panning range: Vertical: from -10° to 15°

Dahua IP DVR NVR4116HS-4KS3

• Video inputs: 16 IP channels
• Video outputs: 1x VGA, 1x HDMI
• Max recording resolution: 12MP
• Compression format: H.265/H.264
• Disk support: 1x HDD Sata III (1TB drive included)
• Playback: 8 channels (1 channel @12MP/8MP or 6 channels @2MP)
• Compatibility with standard: ONVIF
• Connection support: P2P
• Dimensions: 205 x 206 x 48 mm

Seagate SkyHawk ST1000VX013 1TB HDD

• Capacity: 1TB
• Purpose: 24/7 continuous operation
• Workload: 180 TB/year
• MTBF: 1 million hours

Switch PoE GetFort 8FE x PoE + 2FE Uplink 120W PoE+

• Ports: 10 100Mbps RJ45 ports (8x PoE)
• PoE power supply: Up to 30W per port
• Power Supply: 52V/120W
• Long Range Mode: Up to 250m
• VLAN Support: Port isolation

---

Typical Product Application:

• Single family homes: Monitoring of properties, entrances, garages
• Offices and Businesses: Surveillance of employees, access control
• Warehouses: Protecting goods, monitoring loading and unloading
• Restaurants and hotels: Ensuring the safety of guests and staff
• Public Facilities: Schools, medical facilities, parking lots

---

Key User Benefits:

• High image quality: Full HD resolution provides detailed and clear images
• Flexibility of monitoring: PTZ cameras allow remote control of viewing direction
• Effective night monitoring: IR illuminators and warm light allow for colorful images at night
• Intelligent analysis: People and vehicle detection reduces false alarms
• Two-way communication: Built-in microphone and speaker enable listening and voice communication
• Ease of installation: PoE power simplifies installation, eliminating the need for additional power cables
• Remote access: DMSS mobile app allows you to view the video from anywhere

---

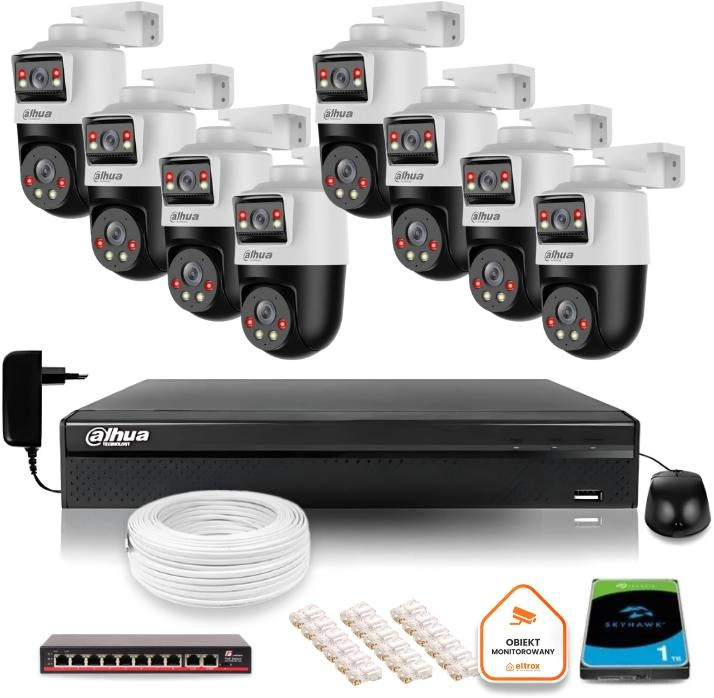

Kit Contents:

• Cameras: 8x Dahua SDT2A200-2F-NB-A-PV IP Camera
• DVR : 1x Dahua IP DVR NVR4116HS-4KS3
• Hard Drive: 1x Seagate SkyHawk ST1000VX013 1TB HDD
• Switch PoE: 1x Switch PoE GetFort 8FE x PoE + 2FE Uplink 120W PoE+
• Network cable: 40m GetFort Premium Cat.5E U/UTP PVC twisted pair cable
• Network plugs: 18x GetFort RJ45 Cat.5e 8P8C network plugs
• Accessories: 1x "Facility Monitored" sticker

Invest in security with the Dahua monitoring kit - reliability and modern technology in one.
