Description

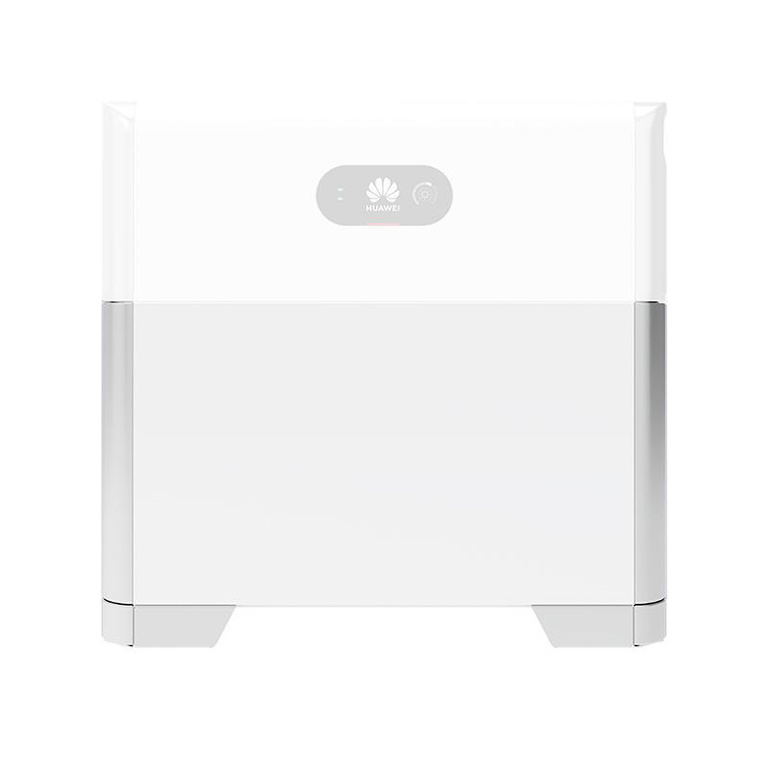

HUAWEI LUNA2000 5kWh battery
The Huawei LUNA2000 5kWh battery is designed for home use. Creates an intelligent energy storage system. The LUNA2000 battery uses Lithium Iron Phosphate (LFP) cells for added safety. It is characterized by a unique appearance, has a modular structure and enables flexible power expansion from 5 kWh to 30kWh. Each power bank module has a built-in optimizer and manages charging and discharging independently. Old and new power bank modules can be used together, making full use of each's potential.
To complete the energy storage, you need to buy:
Huawei LUNA2000 control module
DTSU 666-H intelligent power meter
LUNA2000 5kWh battery - benefits:
LiFePO4 technology - increased fire safety and reliability,
simple installation of Huawei Luna2000 energy storage and quick commissioning
10-year warranty,
enables full (100%) discharge,
modular design, system efficiency from 5 to 15kWh,
possibility of connecting two systems in parallel up to 30 kWh,
automatic mapping via the app.
Huawei LUNA2000 battery
Technical Specifications:
power module - LUNA2000-5kW
energy storage module - LUNA2000-5-E0
usable capacity of the battery module - 5 kWh
maximum output power - 2.5kW
peak output power - 3.5kW, 10 s
nominal voltage - 360V
operating voltage range (1 phase) - 350-560V
nominal voltage - 600V
operating voltage range (3 phases) - 600-980V
communication - RS485 / CAN
display - SOC status indicator, LED indicator
General specification:
power module dimensions - 670 x 150 x 240 mm
power module weight - 12.00 kg
module and stand dimensions - 670 x 150 x 600 mm
weight (floor stand included) - 63.80 kg
working temperature -10 C to +55 C
cooling - natural convection
relative humidity 5-95%
degree of protection - IP65
noise emission <29dB
cell technology - LiFePO4
-10 years warranty
Compatible inverters / inverters:
SUN2000L-2/3 / 3.68 / 4 / 4.6 / 5KTL
SUN2000-2 / 3 / 3.68 / 4 / 4.6 / 5 / 6KTL-L1
SUN2000-3 / 4/5/6/8 / 10KTL-M0
SUN2000-3 / 4/5/6/8 / 10KTL-M1
Certificates - CE, RCM, CEC, VDE2510-50, IEC62619, IEC 60730, UN38.3
