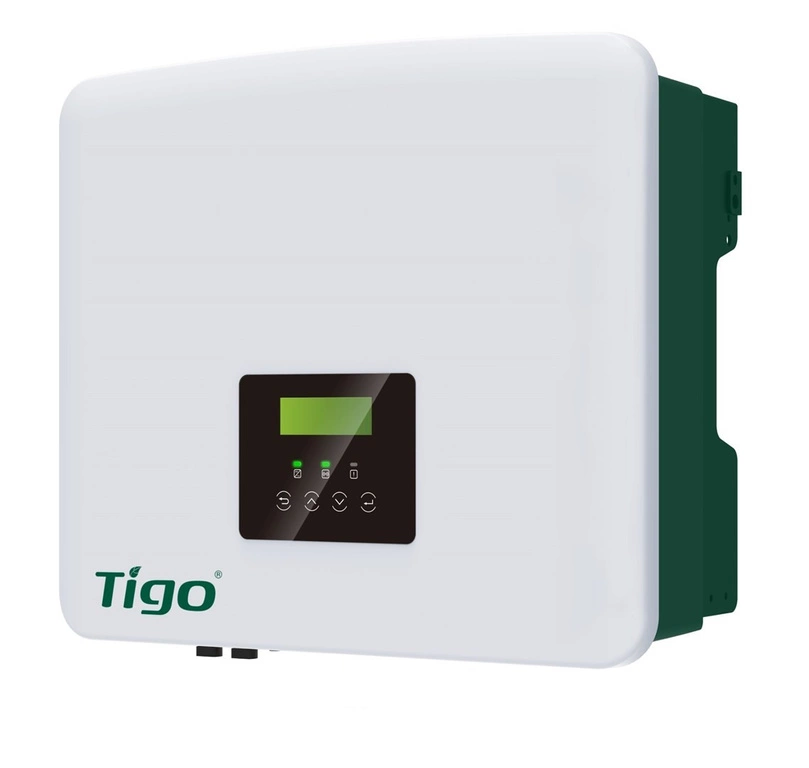

Hybrid inverter Tigo TSI-6K1D, 6 kW, 1-phase, 2-MPPT

Tigo Inverter - TSI-6K1D 6kW Single-Phase Hybrid

• Frequency: 50 / 60 Hz
• Warranty: 144 months factory warranty
• Product Depth: 181 mm
• Quantity: 1
• Manufacturer Code: TSI-6K1D
• Product Color: White
• Compatibility: Tigo EI Residential Solution
• Number of MPPT Inputs: 3
• Maximum PV Input Power: 9000 W
• Maximum Output Power: 6600 VA
• Maximum PV Circuit Voltage: 600 VDC
• Maximum MPPT Working Current: 16 / 20 A
• Maximum Input Current per Phase: 40 A
• Maximum Output Current: 28.6 A
• Maximum Charging Current: 30 A
• Apparent Power: 9200 VA
• AC Output Power: 6000 W
• Startup Voltage: 90 V
• Nominal Grid Voltage: 220 / 230 / 240 V
• Nominal Output Current per Phase: 26.1 A
• Grid Connection: Single-phase
• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Cooling Type: Natural
• IP Protection Rating: IP65
• Product Width: 482 mm
• Product Weight: 22 kg
• Product Height: 417 mm
• Battery Voltage Range: 80 - 480 V
• MPPT Voltage Range: 70 - 550 V
• Operating Temperature Range: -35 - 60 °C
• Storage Temperature Range: -20 - 70 °C
• Connectivity: Ethernet, Bluetooth, RS485, Wi-Fi, Tigo EI App
