HIKVISION 5W1 DVR iDS-7216HQHI-M2/XT(STD)
- The HIKVISION iDS-7216HQHI-M2/XT 5-in-1 DVR is a 16-channel AcuSense DVR with H.265 Pro+ compression and support for analog and IP cameras up to 8 MP.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

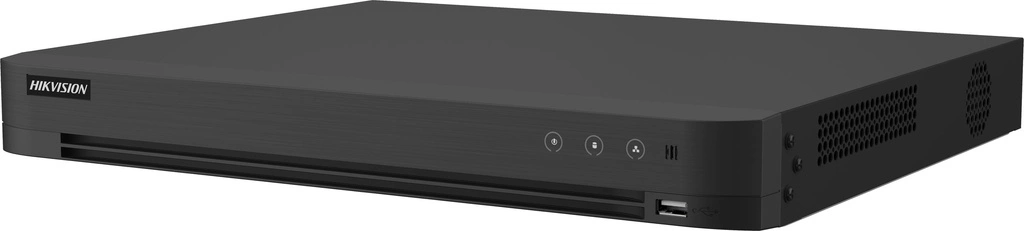

Hikvision iDS-7216HQHI-M2/XT 16-ch 1080P 1U H.265 AcuSense DVR
The Hikvision iDS-7216HQHI-M2/XT is a 16-channel 1U AcuSense DVR with support for H.265 Pro+ compression technology and HDTVI/AHD/CVI/CVBS/IP inputs. The device offers up to 24 channels of IP inputs, Motion Detection 2.0, perimeter protection and facial recognition features, according to the manufacturer's documentation.
- 16 analog video channels and 2 hard drive bays in a 1U AcuSense DVR enclosure.
- Adaptive inputs of 5 signals: HDTVI, AHD, CVI, CVBS, IP.
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression.
- Support up to 24 channels of IP cameras, each channel up to 6 MP, total bit rate 256 Mbps.
- Up to 16 channels of (analog) Motion Detection 2.0 and up to 8 channels of perimeter protection (advanced model).
- Up to 4 channels of face recognition (advanced model) and support for face photo libraries.
AcuSense intelligence features and video analytics
The iDS-7216HQHI-M2/XT DVR uses deep learning technology to implement Motion Detection 2.0 to classify objects into people and vehicles and significantly reduce false alarms caused by, for example, leaves or lights, according to the manufacturer's documentation. The device supports up to 8 channels of perimeter protection (for the advanced model) and up to 4 channels of face detection and recognition, including face photo libraries with the ability to create up to 16 libraries and a face photo comparison alarm function for 4 HD analog channels.
Compression, recording and playback
The DVR supports H.265 Pro+ compression, which can be enabled to improve encoding efficiency and reduce storage costs, and recording at resolutions up to 8 MP, according to the manufacturer's documentation. The device offers various encoding resolutions, including 3K lite, 5 MP lite, 4 MP lite, 1080p/1080p lite, 720p/720p lite, VGA, WD1, 4CIF and CIF, with adjustable main and auxiliary streams, video bit rates from 32 Kbps to 6 Mbps, and support for dual stream, smart playback and synchronous playback of up to 16 channels.
Video, audio, network and storage interfaces
The iDS-7216HQHI-M2/XT has 16 analog BNC video inputs with coaxitron support, HDTVI inputs up to 3K and 5 MP, AHD and HDCVI inputs up to 5 MP, one HDMI output up to 4K/30 Hz, one VGA output up to 1080p/60 Hz, and a CVBS BNC output. The device provides 1 RCA audio input, 16 audio channels via coaxial cable, 1 RCA audio output, 1 RJ45 10/100/1000 Mbps network interface, 2 SATA connectors with support for drives up to 12 TB each, RS-485 interface, and 3 USB ports (1× USB 2.0 on the front, 2× USB 3.0 on the back), according to the manufacturer's documentation.
Specifications
| Available model | iDS-7216HQHI-M2/XT |
| Device type | 16-ch 1080P 1U H.265 AcuSense DVR |
| Key features | 16 channels and 2 HDD in 1U chassis, AcuSense technology, intelligent analysis functions. |
| Video signal inputs | 5 types of signals: HDTVI/AHD/CVI/CVBS/IP (adaptive). |
| Maximum number of IP channels | 8 IP channels, expandable to 24 IP channels, each channel up to 4 Mbps. |
| Maximum resolution of IP cameras | Up to 6 MP per IP channel. |
| Decoding capability | Up to 24 channels 1080P@30 fps. |
| Motion Detection 2.0 | Up to 16 channels (analog channels), human/vehicle classification. |
| Perimeter protection | Up to 8 channels (advanced model, analog channels), human/vehicle analysis. |
| Face recognition - number of channels | Up to 4 channels (advanced model, analog channels) with face photo comparison alarm. |
| Face photo libraries | Up to 16 face photo libraries. |
| Data protection of face libraries | HDD damage does not cause loss of library data, as they are archived on the HDD and in flash memory. |
| Face detection and capture | Face photo detection, face photo search, up to 4 channels of face capture. |
| Smart playback function | Supports smart playback for more efficient viewing of recordings. |
| Video compression | H.265 Pro+, H.265 Pro, H.265, H.264+, H.264. |
| Maximum recording resolution | Up to 8 MP. |
| Encoding resolutions (1080p Lite disabled) | 3K lite, 5 MP lite, 4 MP lite, 1080p, 720p, VGA, WD1, 4CIF, CIF. |
| Encoding resolutions (1080p Lite on) | 3K lite, 5 MP lite, 4 MP lite, 1080p lite, 720p lite, VGA, WD1, 4CIF, CIF. |
| Main stream - 3K (1080p Lite disabled) | 3K lite@12 fps; 4 MP lite@15 fps; 1080p Lite@20 fps; 720p/WD1/4CIF/VGA/CIF@20 fps. |
| Main stream - 5 MP (1080p Lite disabled) | 5 MP lite@12 fps; 4 MP lite@15 fps; 1080p Lite@20 fps; 720p/WD1/4CIF/VGA/CIF@20 fps. |
| Main stream - 4 MP (1080p Lite disabled) | 4 MP lite@15 fps; 1080p Lite@25 fps (P) / 30 fps (N); 720p/WD1/4CIF/VGA/CIF@25 fps (P) / 30 fps (N). |
| Main stream - 1080p (1080p Lite disabled) | 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P) / 30 fps (N). |
| Main stream - 720p (1080p Lite disabled) | 720p/VGA/WD1/4CIF/CIF@25 fps (P) / 30 fps (N). |
| Main stream (1080p Lite on) | 3K lite/5 MP lite@12 fps; 4 MP lite@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P) / 30 fps (N). |
| Auxiliary stream | WD1/4CIF@12 fps; CIF@25 fps (P) / 30 fps (N). |
| Video bit rate | From 32 Kbps to 6 Mbps. |
| Stream type | Video; Video and audio. |
| Audio compression | G.711u. |
| Audio bit rate | 64 Kbps. |
| Analog video inputs | 16 channels, BNC interface (1.0 Vp-p, 75 Ω), support for coaxitron connections. |
| HDTVI inputs | 3K (2960×1665)@20 fps; 5 MP (2560×1944)@20 fps; 4 MP (2560×1440)@30/25 fps; 1080p@30/25 fps; 720p@30/25 fps. |
| AHD inputs | 5 MP (2560×1944)@20 fps; 4 MP (2560×1440)@30/25 fps; 1080p@30/25 fps; 720p@30/25 fps. |
| HDCVI inputs | 5 MP (2880×1620)@25 fps; 5 MP (2592×1944)@20 fps; 4 MP (2560×1440)@30/25 fps; 1080p@30/25 fps; 720p@30/25 fps. |
| CVBS input | PAL/NTSC. |
| HDMI output | 1 channel, 3840×2160/30 Hz; 2560×1440/60 Hz; 1920×1080/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz. |
| VGA output | 1 channel, 1920×108080/60 Hz; 1280×1024/60 Hz; 1280×720/60 Hz. |
| CVBS output | 1 channel, BNC (1.0 Vp-p, 75 Ω); resolution: PAL 704×576, NTSC 704×480. |
| Video output mode | Simultaneous HDMI/VGA output. |
| Synchronous playback | Up to 16 channels. |
| Audio input | 1 channel, RCA (2.0 Vp-p, 1 kΩ) + 16 channels via coaxial cable. |
| Audio output | 1 channel, RCA (linear, 1 kΩ). |
| Two-way audio | 1 channel, RCA (2.0 Vp-p, 1 kΩ) using the first audio input. |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP. |
| Maximum number of remote connections | 128. |
| Network interface | 1× RJ45 10/100/1000 Mbps (self-adaptive). |
| Total network bit rate | 256 Mbps. |
| Support for remote services | Support for Hik-Connect and DDNS, according to the manufacturer's documentation. |
| SATA interfaces | 2 SATA interfaces, up to 12 TB capacity for each drive. |
| Serial interface | RS-485 (half-dupLex). |
| USB ports | Front panel: 1× USB 2.0; rear panel: 2× USB 3.0. |
| Alarm inputs/outputs | None (optional support, according to manufacturer's documentation). |
| Power supply | 12 VDC, 3.3 A. |
| Power consumption | ≤ 40 W. |
| Operating temperature | From -10 °C to 55 °C (14 °F to 131 °F). |
| Operating humidity | 10% to 90%. |
| Dimensions (S × G × W) | 385 × 315 × 52 mm (15.2 × 12.4 × 2.0 in). |
| Weight | ≤ 2 kg (4.4 lb). |
| Physical interface - description | 1: Video inputs; 2: Audio output; 3: HDMI interface; 4: VGA interface; 5: RS-485 interface; 6: LAN and USB interface; 7: 12 VDC power input; 8: GND; 9: Audio input; 10: Video output. |
Technical data source: manufacturer's documentation Hikvision - datasheet of model iDS-7216HQHI-M2/XT. Manufacturer's documentation
FAQ - frequently asked questions
- How many video channels does the iDS-7216HQHI-M2/XT DVR support?
The DVR supports 16 analog video channels. - How many IP channels can be connected to the DVR?
You can connect 8 IP channels, expandable to 24 IP channels, each up to 4 Mbps. - What types of video signals are supported by analog inputs?
The analog inputs support HDTVI, AHD, CVI, CVBS and IP signals. - What is the maximum recording resolution?
The DVR supports recording at up to 8 MP resolution. - Does the DVR support H.265 Pro+ compression?
Yes, the device supports H.265 Pro+, H.265 Pro, H.265, H.264+ and H.264 compression. - What is the maximum number of Motion Detection 2.0 channels?
Motion Detection 2.0 is available on up to 16 analog channels. - How many perimeter protection channels are supported?
The DVR supports up to 8 channels of perimeter protection for the advanced model on analog channels. - How many face recognition channels are available?
Up to 4 channels of face recognition are available for the advanced model on HD analog channels. - How many face image libraries can be created?
Up to 16 face photo libraries can be created. - Does hard disk damage cause loss of face library data?
Damage to the hard drive does not cause data loss of face photo libraries, as they are archived on the HDD and flash memory. - Does the DVR support smart playback of recordings?
Yes, the device supports smart playback to make reviewing recordings more efficient. - What resolutions are supported by the HDMI output?
The HDMI output supports 3840×2160/30 Hz, 2560×1440/60 Hz, 1920×1080/60 Hz, 1280×1024/60 Hz and 1280×720/60 Hz. - What resolutions are supported by the VGA output?
The VGA output supports 1920×1080/60 Hz, 1280×1024/60 Hz, and 1280×720/60 Hz. - Does the DVR have a CVBS output?
Yes, it has one CVBS BNC output with a resolution of 704×576 in PAL and 704×480 in NTSC. - What network protocols are supported?
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF and ISUP protocols are supported. - What is the maximum total network bit rate?
The maximum total network bit rate is 256 Mbps. - How many SATA interfaces are available and what is the maximum disk capacity?
There are 2 SATA interfaces, each supporting up to 12TB drives. - What is the operating temperature range of the DVR?
The operating temperature range is -10 °C to 55 °C. - What is the power consumption of the device?
The power consumption of the DVR is less than or equal to 40 W. - What USB ports are available?
There is 1 USB 2.0 port on the front panel, and 2 USB 3.0 ports on the rear panel.
The Hikvision iDS-7216HQHI-M2/XT DVR is designed for video surveillance systems that require the connection of multiple analog and IP cameras and the use of AcuSense video analytics functions, according to the manufacturer's documentation. The device combines support for high resolutions, efficient H.265 Pro+ compression and extensive network and disk interfaces to facilitate the construction of scalable video recording systems.
