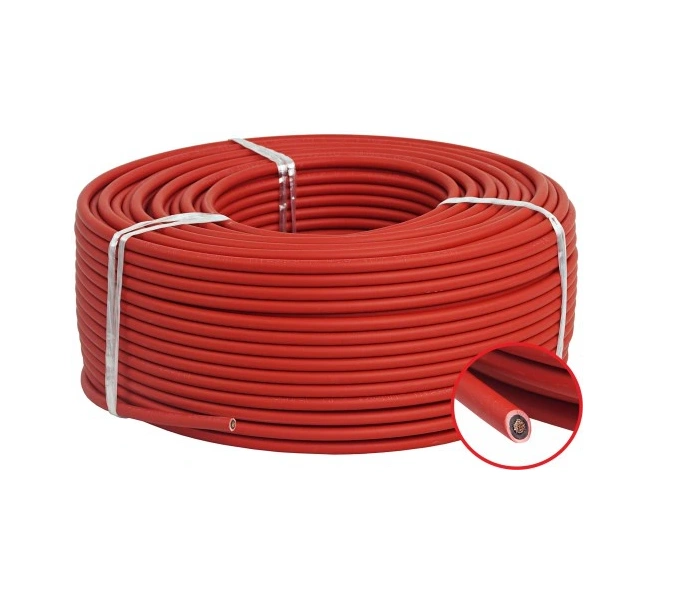

Le câble photovoltaïque MG Wires 1x4mm2, 0,6/1 kV, rouge H1Z2Z2-K-R-4mm2 RD, conditionné en bobine de 50 mètres.

Cables for photovoltaic installations H1Z2Z2-K class B2 (CPR)

Single-core cables with flexible tinned copper conductor according to VDE 0295 cl. 5 and IEC 60228 cl.5, with insulation and sheath made of halogen-free cross-linked polymer. H1Z2Z2-K cables are UV resistant and very durable under our atmospheric conditions. They can be used inside buildings, on the roofs of power plants as well as in large ground-mounted power plants. These cables mainly come in 3 color versions (black, blue, red) as well as in a version with a CuSn wire screen and FeZn steel wire armor.

Standard: PN-EN 50618:2015-03

Characteristics:

• Operating temperature: from -40°C to +90°C (+120°C/20,000h)
• Permissible conductor temperature at short circuit: 200°C
• Non-flammable with zero emission and toxicity of fumes
• Very good UV resistance
• Low water absorption
• Very good mechanical properties
• Operating voltage: AC: U0/U=1000/1000V; DC: U0/U=1500/1500V
• Voltage test: 6500V
• Minimum laying temperature: -25°C
• Minimum bending radius for fixed installation: 4 x Ø
• CPR – Certificates/DoP, flammability class B2ca-s1, d0, a1

Cable construction:

• Conductor: soft tinned copper wires, class 5 according to PN-EN 60228, DIN VDE 0295
• Insulation: halogen-free cross-linked polymer, white color
• Sheath: halogen-free cross-linked polymer, black, blue, or red color
