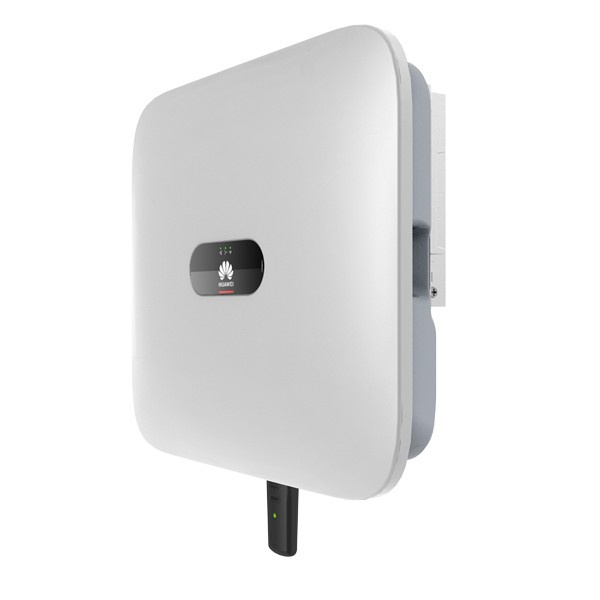

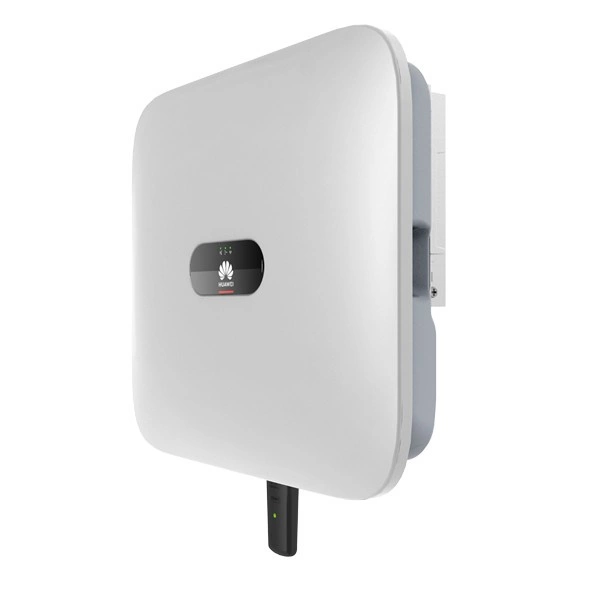

Falownik Hybrydowy Huawei SUN2000-4KTL-M1-HC, 3-fazowy, 2-MPPT, 4kW, 4,4kVA, Moduł WIFI w Zestawie
Falownik Hybrydowy Huawei SUN2000-4KTL-M1-HC, 3-fazowy, 2-MPPT, 4kW, 4,4kVA, Moduł WIFI w Zestawie
- Falownik Huawei FusionSolar // 3-fazowy, 2-MPPT High Current, wbudowana komunikacja (RS485, WLAN poprzez Smart Dongle), rozłącznik DC, 4kW/4,4kVA, ograniczniki przepięć strony AC i DC typ II, interfejs ładowania akumulatora, wsparcie dla optymalizacji
Marka
Symbol
SUN2000-4KTL-M1-HC
Kod producenta
5904905307590
Gwarancja
LED diodes: Yes
Output frequency: 50/60 Hz
Warranty: 120 months of factory warranty
Product depth: 146.5 mm
Number of phases: 3
Number of MPPT ports: 2
Number of pieces: 1
Manufacturer code: SUN2000-4KTL-M1-HC
Product color: White
Compatibility: SUN2000-450W-P
Brand compatibility: Huawei
Maximum configurable power: 4.4 kVA
Maximum input voltage: 1100 V
Maximum short-circuit current MPPT: 19.5 A
Real power: 4000 W
Isolation monitoring: Yes
Voltage: 140 - 980 V
Operating voltage: 220 - 400 V
Starting voltage: 200 V
Protection against reverse polarization: Yes
Overload protection: Yes
Suitable for outdoor use: Yes
Input current: 13.5 A
Output current: 6.8 A
Purpose: Solar panel
Cooling type: Passive
Current type: DC-to-AC
IP protection degree: IP65
Product width: 470 mm
Power supply type: External
Product weight: 17 kg
Efficiency: 98.3%
Product height: 525 mm
Overcurrent protection: Yes
Islanding protection: Yes
Short-circuit protection: Yes
Overvoltage protection: Yes
Temperature range (operation): -25 - 60 °C
Relative humidity range: 0 - 100%
