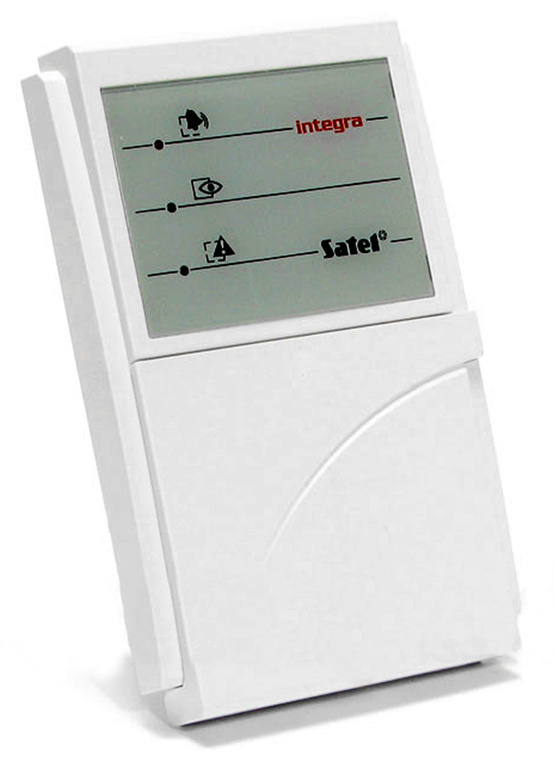

Alarm system partition keypad SATEL INT-S-BL wired blue backlighting 12 V DC
- INT-S-BL partition keypad for operating a single partition of the INTEGRA system, with LED and audible event indication, 12 V DC (±15%) power supply.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
INT-S-BL partition keypad with blue backlighting for INTEGRA control panels
INT-S-BL is a partition keypad designed for simple operation of a single zone in INTEGRA alarm systems. The device offers local LED and acoustic signaling, as well as access control functions with a relay to control an electric strike or other devices.
- Operation of a single zone of the INTEGRA system
- LEDs showing the status of the zone
- Audible signaling of selected system events
- Access control functions with relay
- Environmental class II and operation in a wide temperature range
Intended use and application
The INT-S-BL partition keypad is designed to support a single partition in systems based on INTEGRA series control panels. This makes it ideal for facilities where individual zones are independent functional subsystems, such as separated premises, offices, warehouses or access zones. Local control of a single zone makes it easier for users to operate the system on a daily basis and reduces the possibility of accidental interference with other parts of the system.
The device offers access control functions, including the ability to control an electric door strike, bolt or electromagnetic interlock via a built-in relay. The door status control input allows integration with a walk-through security system, enhancing security and convenience. The INT-S-BL model is a version with blue key backlighting, being one of three available color variations of the INT-S series.
Signaling and security features
The INT-S-BL allows local triggering of the panic, FIRE and HELP alarms from the keypad, allowing you to quickly report an emergency situation. LEDs indicate the current status of the zone, allowing the user to easily verify the arming or violation of the zone. Audible signaling of selected system events increases the readability of messages and facilitates daily expLoatation of the device.
Environmental class II and the ability to operate in a wide temperature range allow the keypad to be used in typical indoor conditions. In addition, the device's small size and light weight facilitate installation in areas with limited space. All technical parameters have been selected with a view to stable and reliable operation in burglar alarm systems.
Technical data
| Parameter | Value |
|---|---|
| Model | INT-S-BL |
| Purpose | Partition keypad for operating a single partition of the INTEGRA system |
| Alarm functions | Calling the panic, FIRE and AID alarms from the keypad |
| Optical signaling | LEDs showing zone status |
| Acoustic signaling | Audible signaling of selected events in the system |
| Access control functions | Yes |
| Relay output | Relay to control an electric door strike, bolt or electromagnetic interlock |
| Relay output load capacity (resistive load) | 2 A / 24 V DC |
| Inputs | Input for door status monitoring |
| Environmental class | II |
| Supply voltage (±15%) | 12 V DC |
| Operating temperature range | -10...+55 °C |
| Standby current consumption | 40 mA |
| Maximum current consumption | 75 mA |
| Weight | 110 g |
| Maximum humidity | 93 ± 3% |
| Dimensions | 80 x 127 x 24 mm |
| Product category | Burglary and assault signalization - INTEGRA alarm control panels, system operation and supervision |
| Color of key backlighting | Blue |
Technical data source:data sheet of INT-S-BL model Link
FAQ - Frequently asked questions
Does the INT-S-BL support more than one system zone?
No, the INT-S-BL is a partition keypad designed for simple operation of a single zone of the INTEGRA system.
For which alarm systems is the INT-S-BL keypad designed?
The INT-S-BL is designed to work with INTEGRA series control panels.
What alarms can be triggered from the INT-S-BL keypad?
The INT-S-BL keypad can be used to call the PANIC, FIRE and HELP alarms.
How is the partition status signaled on the INT-S-BL?
The status of a zone is indicated by LEDs located on the keypad.
Does the INT-S-BL have audible signaling?
Yes, the INT-S-BL keypad performs audible signaling of selected system events.
Can the INT-S-BL keypad control an electric door strike?
Yes, the built-in relay allows you to control the electric door strike, bolt or electromagnetic interlock.
What input is available on the INT-S-BL for passage control?
The keypad has a door status input that can be used in an access control system.
In what environmental class does the INT-S-BL operate?
The INT-S-BL belongs to environmental class II.
What is the required power supply voltage level for the INT-S-BL?
The required supply voltage is 12 V DC with a tolerance of ±15%.
In what temperature range can the INT-S-BL operate?
The operating temperature range of the keypad is -10 to +55 °C.
What is the standby current consumption?
The standby current consumption is 40 mA.
What is the maximum current consumption of the INT-S-BL?
The maximum current consumption of the device is 75 mA.
What are the dimensions of the INT-S-BL keypad?
The dimensions of the keypad are 80 x 127 x 24 mm.
What is the maximum allowable operating humidity of the device?
The maximum operating humidity is 93 ± 3%.
What is the load capacity of the relay output?
The load capacity of the relay output for resistive load is 2 A at 24 V DC.
How much does the INT-S-BL keypad weigh?
The weight of the keypad is 110 g.
What color of backlighting does the INT-S-BL have?
The INT-S-BL model has blue backlighting for the keys.
Does the INT-S series include other backlighting colors?
Yes, INT-S series keypads are also available with white (INT-S-W) and green (INT-S-GR) key backlighting.
In which product category does the manufacturer classify the INT-S-BL?
The manufacturer classifies the INT-S-BL in the group of products related to burglary and assault signaling, in the area of INTEGRA control panels and system operation and supervision.
Summary
The INT-S-BL is a zone keypad with blue backlighting, designed to operate a single zone in INTEGRA alarm systems, offering optical, acoustic signaling and local alarm calling functions. The device is equipped with a relay for controlling access control elements, a door status input, and provides operation in a wide range of environmental conditions.
