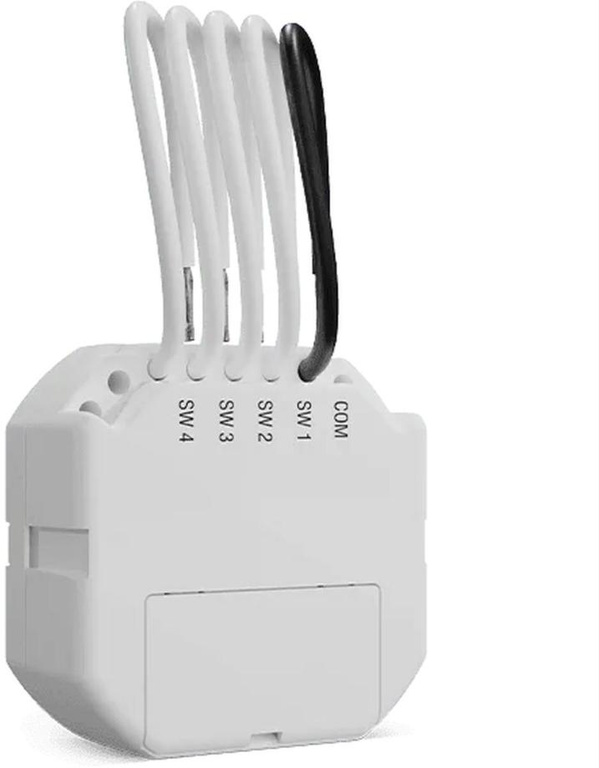

BE WAVE Wireless Smart Switch Support Module Switch Controller ATX-200
- BE WAVE ATX-200 is a wireless switch control module for remote control of lighting and other electrical devices. Ideal for the smart home, it's easy to install in a box.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
ATX-200 Wireless ABAX 2 System Input Expander
ATX-200 is a component of the ABAX 2 wireless system designed for use in burglar alarm installations. The device is powered by a lithium battery and operates in the 868.0 ÷ 868.6 MHz band, providing a long range of radio communication.
- Intrusion alarm systems intended use
- Operation in ABAX 2 wireless system
- Operating frequency band 868.0 ÷ 868.6 MHz
- Range of radio communication in open area up to 1700 m
- Power supply from a CR14250 3 V lithium battery
Application and characteristics of ATX-200
ATX-200 is an element of wireless system, which is used in burglary and robbery signaling installations, where it is required to use radio transmission instead of wired connections. Thanks to its operation in the 868.0 ÷ 868.6 MHz band and a long range of radio communication in open areas up to 1700 m, the device can be used in medium and large facilities where system elements are distributed over considerable distances.
The device is powered by a CR14250 3 V lithium battery, which allows long-term operation without the need for frequent replacement of the power source - the expected battery life is up to 3 years under typical conditions expLoatation. The ATX-200 meets the requirements of EN 50130-4 and EN 50130-5, and has an environmental class II according to EN 50130-5, which confirms its suitability for use in standard environmental conditions for SSWiN systems.
Environmental conditions and expLoatation
ATX-200 is suitable for operation in a wide temperature range of -10°C to +55°C, which allows installation in unheated rooms and facilities with varying thermal conditions. The maximum operating humidity is 93±3%, thanks to which the device maintains stable operation also in conditions of increased humidity, typical of many technical facilities.
The device's design, measuring 47 x 47 x 22 mm and weighing 40 g, allows it to be mounted discreetly in various installation locations. Low power consumption, expressed in terms of standby current consumption of 7 µA, promotes extended battery life and reduces the need for service work. The manufacturer stipulates that the actual appearance of the product may differ from that shown in the illustrative materials, and the descriptions are for informational purposes.
Technical data ATX-200
| Parameter | Value |
|---|---|
| System | ABAX 2 wireless system |
| Intended use | Intrusion alarm systems |
| Operating frequency band | 868.0 ÷ 868.6 MHz |
| Range of radio communication (in open area) | up to 1700 m |
| Power supply | Lithium battery CR14250 3 V |
| Expected battery life | up to 3 years |
| Standby current consumption | 7 µA |
| Low battery notification voltage | 2,75 V |
| Operating temperature range | -10°C...+55°C |
| Maximum humidity | 93±3% |
| Environmental class according to EN 50130-5 | II |
| Standards met | EN 50130-4, EN 50130-5 |
| Dimensions | 47 x 47 x 22 mm |
| Weight | 40 g |
Source of technical data:data sheet of ATX-200 model Link
FAQ - Frequently asked questions
1. What system is the ATX-200 designed for?
ATX-200 is designed to work in ABAX 2 wireless system used in burglar alarm installations.
2. In what frequency band does the ATX-200 operate?
The device operates in the frequency band 868.0 ÷ 868.6 MHz.
3. What is the maximum range of ATX-200 radio communication in an open area?
The maximum range of radio communication in the open field is up to 1700 m.
4. What is the power source of the ATX-200?
The power source is a CR14250 type lithium battery with a voltage of 3 V.
5. What is the expected battery life of the ATX-200?
The expected battery life is up to 3 years under typical use conditions.
6. What is the standby current consumption?
The standby current consumption is 7 µA.
7. At what voltage is a low battery reported?
Low battery level is reported at 2.75 V.
8. In what temperature range can the ATX-200 operate?
The device can operate in the temperature range from -10°C to +55°C.
9. What is the allowable operating humidity of the ATX-200?
The maximum operating humidity is 93±3%.
10. What standards does the ATX-200 meet?
ATX-200 meets the requirements of EN 50130-4 and EN 50130-5.
11. What environmental class does the ATX-200 have?
The device has an environmental class II according to EN 50130-5.
12. What are the dimensions of the ATX-200?
The dimensions of the device are 47 x 47 x 22 mm.
13. What is the weight of the ATX-200?
The weight of the device is 40 g.
14. Is the ATX-200 suitable for use in humid areas?
The ATX-200 can operate in elevated humidity conditions up to 93±3%, according to the manufacturer's specifications.
15. Can the ATX-200 be used in unheated rooms?
Yes, with an operating temperature range of -10°C to +55°C, the ATX-200 can be used in unheated or intermittently heated rooms, as long as they fall within this temperature range.
16. Does the appearance of the ATX-200 always match the manufacturer's illustrative materials?
The manufacturer informs that the actual appearance of the product may differ from that shown in the pictures, and the materials are for informational purposes.
17. What applications are typical for ATX-200?
Typical applications include elements of burglar alarm systems in facilities where radio transmission is required.
18. Is the ATX-200 designed for wired systems?
No, the ATX-200 is designed for the ABAX 2 wireless system, not for wired systems.
The ATX-200 is a wireless component of the ABAX 2 system designed for use in intrusion alarm systems, powered by a CR14250 3V lithium battery. The device operates in the 868.0 ÷ 868.6 MHz band, offers an outdoor radio communication range of up to 1,700 m and meets the requirements of EN 50130-4 and EN 50130-5.
