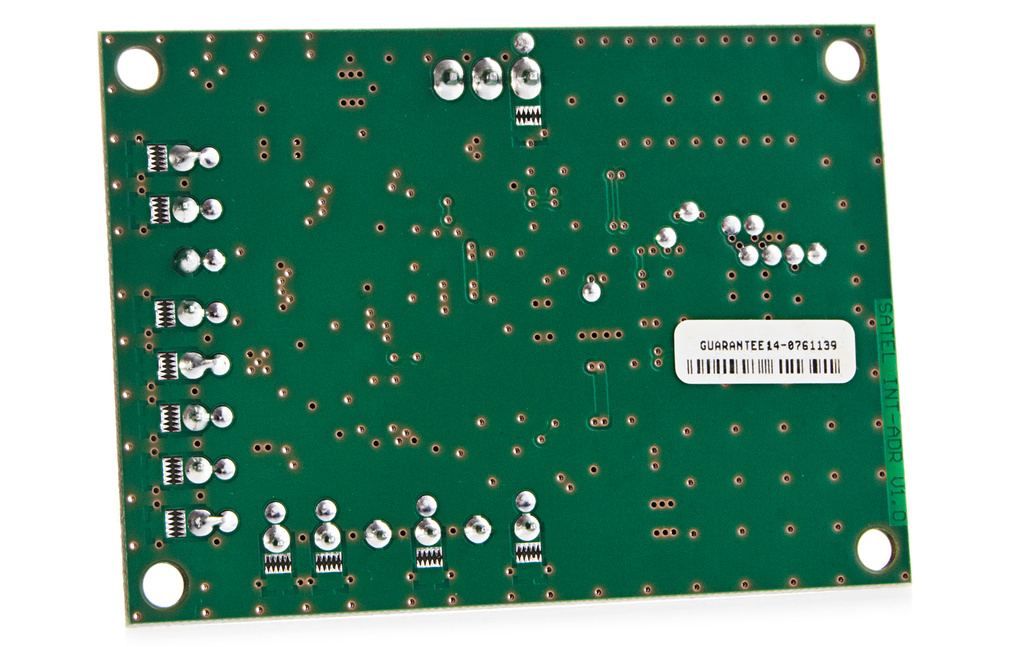

Expansion module for addressable detectors SATEL INT-ADR system module support 48 12 V DC inputs
- INT-ADR module for INTEGRA/INTEGRA PLus control panels, is used for connecting addressable detectors, enables up to 48 addressable zones
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
INT-ADR - module for connecting addressable detectors to INTEGRA / INTEGRA PLus control panels
The INT-ADR module is designed for connecting addressable detectors to the INTEGRA and INTEGRA PLus family control panels. It replaces the CA-64 ADR module and enables the implementation of hybrid alarm systems with addressable and directly connectable elements.
- Dedicated, independent bus of addressable detectors
- Support for addressable detectors created based on the CA-64 ADR-MOD module
- Possibility to expand the control panel by up to 48 addressable zones
- Possibility to connect to RS-485 bus with software update
- High load capacity of power outputs 2.5 A / 12 V DC
INT-ADR module designation and application
INT-ADR is an expansion module designed for burglary and assault alarm systems based on the INTEGRA and INTEGRA PLus families of control panels. It enables the connection of addressable detectors, which particularly facilitates the implementation of wiring in large and extensive installations such as office, industrial or public buildings.
The bus of addressable detectors in INT-ADR is completely independent from the bus of control panel expanders, so the installer can create hybrid systems, combining addressable elements with devices connected directly to the control panel. This solution increases design flexibility, enables phased system expansion and better wiring organization.
Features and installation benefits
The module supports addressable detectors built on the basis of CA-64 ADR-MOD module, which allows unification of solutions in existing systems SATEL. The use of INT-ADR makes it possible to expand the control panel with up to 48 addressable zones, which significantly increases the scalability of the installation without the need to run a large number of wires directly to the panel.
The INT-ADR can be connected to the RS-485 bus, allowing the module's software to be updated remotely via this bus. The high load capacity of the power outputs of 2.5 A / 12 V DC allows you to power more devices from a single module, while complying with the requirements of environmental standards EN50130-5 (class II). The small dimensions and low weight of the device facilitate its installation in system enclosures.
Technical data
| Parameter | Value |
|---|---|
| Purpose | Module for connecting addressable detectors to INTEGRA and INTEGRA PLcontrol panels. us |
| Maximum number of addressable zones | 48 |
| Detector bus | Dedicated, independent bus of addressable detectors |
| Supported addressable detectors | Addressable detectors created on the basis of CA-64 ADR-MOD module |
| Communication interface | Possibility to connect to RS-485 bus (software update via bus) |
| Supply voltage (±15%) | 12 V DC |
| Current consumption in standby state | 30 mA |
| Maximum current consumption | 35 mA |
| POW output load capacity | 2.5 A / 12 V DC |
| Current-carrying capacity of +12V output | 2.5 A / 12 V DC |
| Environmental class as per EN50130-5 | II |
| Maximum humidity | 93 ± 3% |
| Operating temperature range | -10 °C ... +55 °C |
| Dimensions | 80 × 57 mm |
| Weight | 35 g |
Technical data source:data sheet of INT-ADR model Link
FAQ - Frequently asked questions
1. What control panels is the INT-ADR module designed for?
The INT-ADR module is designed for cooperation with alarm control panels from the INTEGRA and INTEGRA PLus families.
2. What is the function of the addressable detectors bus in INT-ADR?
The addressable detector bus in the INT-ADR is used to connect addressable detectors and is independent of the control panel expander bus.
3. Does the INT-ADR replace the older SATEL module ?
Yes, INT-ADR replaces the CA-64 ADR module.
4. How many addressable zones can be obtained using INT-ADR ?
The module allows you to expand the control panel with up to 48 addressable zones.
5. What kind of addressable detectors are supported by INT-ADR?
The INT-ADR supports addressable detectors created based on the CA-64 ADR-MOD module.
6. Can the INT-ADR module be upgraded remotely?
Yes, the module can be connected to the RS-485 bus, which makes it possible to update the software via this bus.
7. What is the power supply voltage of the INT-ADR module?
The power supply voltage of the module is 12 V DC with a tolerance of ±15%.
8. What is the standby current consumption?
The standby current consumption is 30 mA.
9. What is the maximum current consumption of the module?
The maximum current consumption of the INT-ADR module is 35 mA.
10. What is the permissible load of the POW output?
The load capacity of the POW output is 2.5 A at 12 V DC.
11. What is the permissible load of the +12V output?
The load capacity of the +12V output is 2.5 A at 12 V DC.
12. In which environmental class according to EN50130-5 does the INT-ADR operate?
The INT-ADR module belongs to environmental class II according to EN50130-5.
13. What is the maximum operating humidity of the module?
The maximum operating humidity of the module is 93 ± 3%.
14. In what temperature range can the INT-ADR operate?
The operating temperature range is from -10 °C to +55 °C.
15. What are the dimensions of the INT-ADR module?
The dimensions of the module are 80 × 57 mm.
16. What is the weight of the module?
The weight of the INT-ADR module is 35 g.
17. Does the use of INT-ADR facilitate wiring in large installations?
Yes, the use of INT-ADR simplifies the implementation of wiring, especially in extensive installations.
18. Is the bus of addressable detectors dependent on the bus of expanders?
No, the INT-ADR's bus of addressable detectors is independent of the panel's expander bus.
The INT-ADR module is a specialized alarm system component designed to support addressable detectors in INTEGRA and INTEGRA PLus control panels. With its independent detector bus and high load capacity of power outputs, it enables the construction of scalable and extensive alarm installations.
