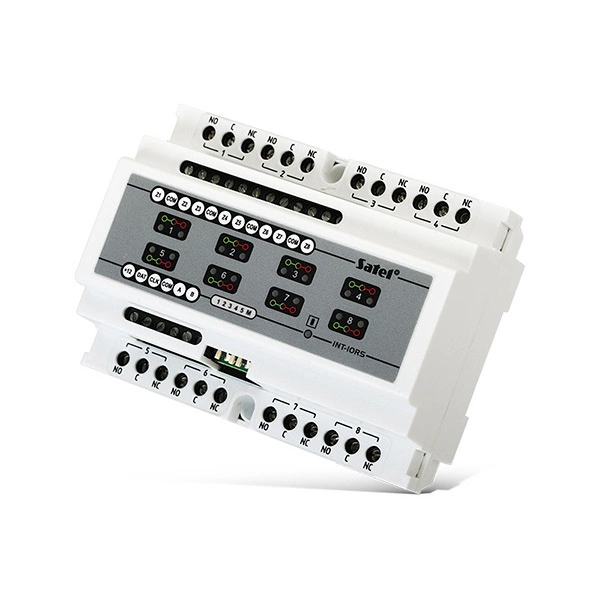

INT-IORS - expansion module of inputs and relay outputs for INTEGRA and ACCO NET control panels
INT-IORS is a module designed to expand INTEGRA alarm systems and ACCO NET access control system with 8 inputs and 8 programmable relay outputs. The device allows direct control of devices powered by 230 V AC and is adapted for mounting on a standard 35 mm DIN rail.
- Expansion of the system by 8 inputs
- System expansion with 8 relay outputs
- Direct control of electrical devices powered by 230 V AC
- Possibility of mounting on DIN 35 mm rail
- Cooperation with ACCO NET system (from edition 1.4)
INT-IORS module purpose and functionality
The INT-IORS module is designed for expanding the INTEGRA alarm control panels and the ACCO NET system with additional inputs and relay outputs, which allows you to implement advanced control and building automation functions. With support for NO, NC, EOL and 2EOL input configurations, flexible connection of various types of sensors and detection devices is possible.
The module's relay outputs allow direct control of electrical devices powered by 230V AC, which makes it possible to integrate lighting, heating devices, roller shutters or other receivers with the INTEGRA alarm system. The module can also work with ACCO-NT access control panels, expanding the control capabilities in access control systems.
Design and installation
INT-IORS has been designed to be mounted on a standard 35mm DIN rail for easy installation in switchboards and control cabinets. The compact housing and standardized width allow optimum use of space in the cabinet, and the module occupies the equivalent of 7 modules with a width of 17.5 mm.
The device is characterized by environmental class II according to EN50130-5, which allows its use in typical installation conditions of burglar alarm and automation systems. The operating temperature range from -10 to +55 °C and high permissible humidity allow expLoatation of the module in diverse environmental conditions, while observing appropriate installation rules.
Technical data
| Parameter | Value |
|---|---|
| Environmental class according to EN50130-5 | II |
| Maximum number of inputs | 8 |
| Maximum number of outputs | 8 |
| Supported input configurations | NO, NC, EOL, 2EOL |
| Power supply voltage (±15%) | 12 V DC |
| Standby current consumption | 35 mA |
| Maximum current consumption | 350 mA |
| Load capacity of relay outputs (resistive load) | 16 A / 230 V AC |
| Current-carrying capacity of +12 V output | 2.5 A / 12 V DC |
| Maximum humidity | 93 ± 3% |
| Operating temperature range | -10...+55 °C |
| Dimensions | 122 × 93 × 58 mm |
| Weight | 300 g |
| Mounting | on DIN rail 35 mm |
| Occupied number of modules 17.5 mm | 7 |
| Cooperation with | ACCO NET (from release 1.4) |
| System designation | INTEGRA alarm control panels, ACCO-NT access control panels |
Technical data source:data sheet of INT-IORS model Link
FAQ - Frequently Asked Questions
1. To which control panels can the INT-IORS module be connected?
The INT-IORS module can be connected to INTEGRA series alarm control panels, and can also be used in ACCO NET access control systems with ACCO-NT control panels.
2. How many zones does the INT-IORS module make available?
INT-IORS provides a maximum of 8 inputs.
3. How many relay outputs does the module provide?
The INT-IORS module has 8 relay outputs.
4. What input configurations are supported by INT-IORS?
The module's inputs can operate in NO, NC, EOL and 2EOL configurations.
5. Is it possible to directly control 230V devices with INT-IORS?
Yes, the INT-IORS module allows you to directly control electrical devices powered by 230V AC.
6. What is the maximum load capacity of the relay outputs?
The maximum load capacity of relay outputs with resistive load is 16 A at 230 V AC.
7. What is the power supply voltage of the INT-IORS module?
The power supply voltage of the module is 12 V DC with a tolerance of ±15%.
8. What is the standby current consumption?
The standby current consumption is 35 mA.
9. What is the maximum current consumption of the module?
The maximum current consumption of the INT-IORS module is 350 mA.
10. In what temperature range can the INT-IORS module operate?
The operating temperature range of the module is -10 to +55 °C.
11. What is the maximum permissible operating humidity?
The maximum allowable humidity is 93 ± 3%.
12. How is the INT-IORS module to be mounted?
The module is designed to be mounted on a standard 35 mm DIN rail.
13. How much space does the INT-IORS module take up in the switchboard?
The INT-IORS takes up space equivalent to 7 modules with a width of 17.5 mm.
14. What are the dimensions of the module's enclosure?
The dimensions of the module are 122 × 93 × 58 mm.
15. What is the weight of the INT-IORS module?
The weight of the device is 300 g.
16. Does INT-IORS work with the ACCO NET system?
Yes, the module works with the ACCO NET system from the 1.4 release.
17. What environmental class does the module belong to?
INT-IORS has an environmental class II according to the EN50130-5 standard.
18. What is the maximum load of the +12 V output?
The load capacity of the +12 V output is 2.5 A at 12 V DC.
INT-IORS is a relay input and output expansion module designed for cooperation with INTEGRA control panels and ACCO-NT access control panels. The device enables the implementation of automation functions and direct control of 230 V AC circuits from the level of the alarm or access control system.
