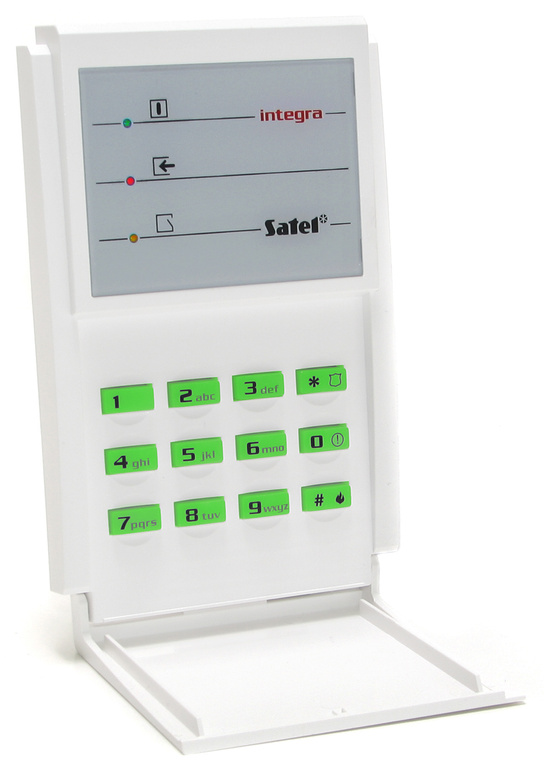

INT-SZ-GR access control code lock with numeric keypad

INT-SZ-GR combination lock for INTEGRA and CA-64 alarm systems

The INT-SZ-GR combination lock is a small device designed for cooperation with INTEGRA series and CA-64 control panels, enabling the implementation of access control. The INT-SZ-GR version of the product is distinguished by its green backlighting, and its functions and technical parameters are specified in the manufacturer's documentation.

• Cooperation with INTEGRA series alarm panels and CA-64 control panel
• Implementation of access control to rooms or zones with electrically controlled doors
• Possibility of controlling access to other devices with electrically controlled locks (gates, bars, flaps, etc.)
• Input for door status monitoring and tamper contact
• Three color LEDs to indicate the status of the passage and door opening, as well as acoustic signaling
• Illuminated keypad buttons and INT-SZ-GR color version with green backlighting

Purpose and functions of the device

The INT-SZ-GR code lock is designed for cooperation with INTEGRA series alarm control panels and the CA-64 control panel, and allows you to implement access control to rooms or zones with doors equipped with an electrically operated lock, as well as to other devices with this type of lock, such as gates, bars or flaps. The device has an input for monitoring the status of the door and a tamper contact, which allows monitoring the correctness of the closure of the passage and protection against unauthorized interference, according to the manufacturer's documentation.

Signaling, control and ergonomics

The INT-SZ-GR has three colored LEDs indicating the status of the passage and the opening of the door, with the opening additionally signaled acoustically, which facilitates ongoing access control. Directly from the keypad, using the labeled buttons, three alarms can be triggered: PANIC, FIRE and HELP, and the backlighting of the keypad buttons ensures comfortable use even in low-light areas, according to the manufacturer's documentation.

Technical parameters

Source of technical data:manufacturer's documentation SATELdatasheet of INT-SZ-GR model Dokumentacja producenta

FAQ - frequently asked questions

• What alarm control panels does the INT-SZ-GR combination lock work with?
  The INT-SZ-GR works with INTEGRA series alarm control panels and the CA-64 control panel.
• What is the INT-SZ-GR combination lock used for?
  The INT-SZ-GR combination lock is used to implement access control to rooms or zones where the doors are equipped with an electrically operated lock.
• Can the INT-SZ-GR control devices other than doors?
  Yes, the device can exercise access control over other devices equipped with an electrically controlled lock, such as gates, grilles or flaps.
• Does the lock have an input for door status monitoring?
  Yes, the INT-SZ-GR has a door status control input.
• Is the device equipped with a tamper contact?
  Yes, the INT-SZ-GR code lock has a tamper contact.
• How is the INT-SZ-GR transition status signaling implemented?
  Signaling of the passage status is realized by means of three colored LEDs, which inform about the passage status and door opening.
• Is door opening signaled acoustically?
  Yes, opening the door and leaving it open is signaled audibly.
• What alarms can be triggered from the INT-SZ-GR keypad?
  Three alarms can be triggered from the INT-SZ-GR keypad: PANIC, FIRE and HELP.
• Is the keypad of the lock backlit?
  Yes, the keys of the keypad are backlit, which ensures convenient use in low-light areas.
• What is the backlighting color version for the INT-SZ-GR model?
  The INT-SZ-GR model has a green backlight.
• What voltage can the relay switch on the INT-SZ-GR?
  The maximum voltage switched by the relay is 24 V.
• What is the maximum current that the relay can switch in the INT-SZ-GR?
  The maximum current switched by the relay is 2 A.
• What is the power supply voltage of the INT-SZ-GR combination lock?
  The power supply voltage is 12 V DC with a tolerance of ±15%.
• What are the dimensions of the INT-SZ-GR housing?
  The dimensions of the housing are 80 x 127 x 24 mm.
• In what temperature range can the INT-SZ-GR operate?
  The operating temperature range is from -10 to +55 °C.
• What is the standby current consumption?
  The standby current consumption is 24 mA.
• What is the maximum current consumption of the INT-SZ-GR?
  The maximum current consumption is 66 mA.
• What is the weight of the INT-SZ-GR device?
  The weight of the device is 110 g.
• What environmental class does the INT-SZ-GR belong to?
  The INT-SZ-GR belongs to environmental class II.

The INT-SZ-GR code lock enables the implementation of access control in cooperation with INTEGRA series control panels and the CA-64 control panel, with the ability to control devices equipped with an electrically operated lock. According to the manufacturer's documentation, the device offers optical and acoustic signaling, an input for door status monitoring, a tamper contact and a built-in relay for controlling actuators.
