B-2S miniature hermetic recessed magnetic detector

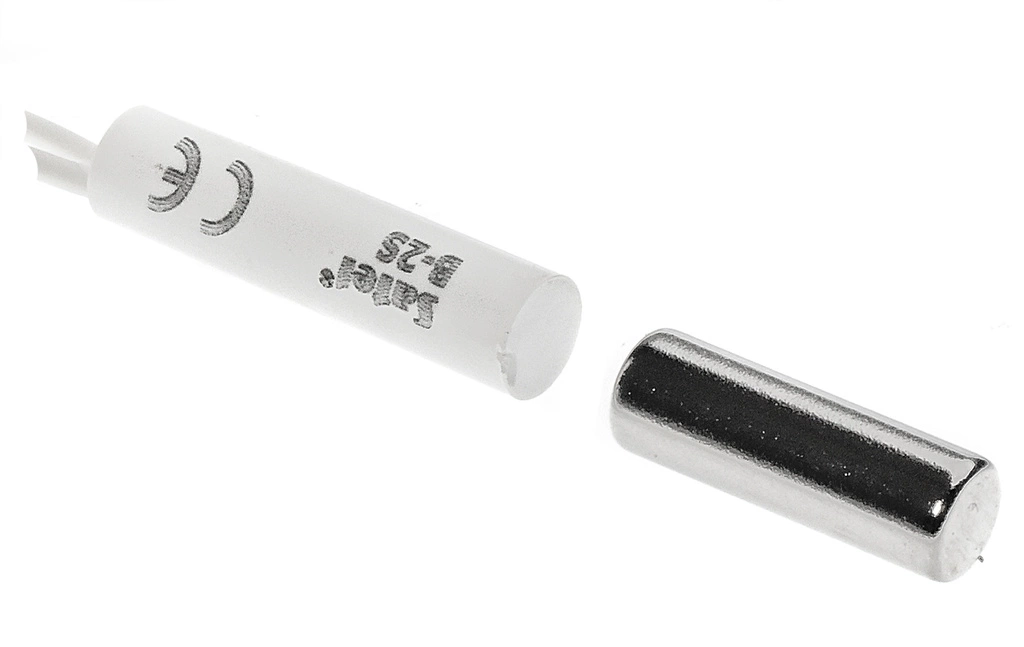

B-2S is a miniature hermetic reed detector designed for perimeter protection of doors and windows. The detector is recessed-mounted into the sash and frame, so it remains invisible from the outside after installation.
- Miniature hermetic reed detector for perimeter protection
- Flush mounting into the sash and frame of the door or window
- Small hermetic housing with a diameter of 6.5 mm
- Operating temperature range from -10 to +55 °C
- Available in white and brown color versions
Application and mounting method
The B-2S detector is designed for use in intrusion alarm systems as a perimeter protection element to detect the opening of doors and windows. Thanks to recessed mounting in the leaf and frame, the detector's elements are hidden, which improves the aesthetics of the installation and makes it difficult for unauthorized persons to locate it.
The frontal design and compact dimensions of the reed switch and magnet housing allow the detector to be used in profiles with limited installation space. The cable length of 450 mm makes it easy to lead the signal to a control panel or other surveillance device.
Operating characteristics and environmental conditions
The B-2S detector operates in environmental class II according to EN50130-5, which defines its resistance to typical conditions expLoatation indoors. The hermetic housing and the allowable maximum humidity of 93 ±3% allow the device to be used in environments with increased humidity, as required by the standard.
The operating temperature range of -10 to +55 °C allows the detector to be used in a wide range of temperature conditions. The specified closing and opening distances of the reed switch contacts (25 mm and 33 mm, respectively) determine the required cooperation between the reed switch element and the magnet during installation and expLoatation.
Technical data
| Parameter | Value |
|---|---|
| Device type | miniature hermetic front reed detector for perimeter protection |
| Mounting method | recessed into door or window sash and frame |
| Housing | small, hermetic |
| Diameter of detector housing | Ø 6.5 mm |
| Dimensions of reed switch housing | 27 x 6.5 mm |
| Magnet housing dimensions | 19.05 x 6.35 mm |
| Detector type | NC |
| Contact closure distance of reed relay | 25 mm |
| Reed relay contact opening distance | 33 mm |
| Maximum switchable voltage | 100 V |
| Maximum switchable current | 500 µA |
| Maximum load power | 10 W |
| Maximum contact resistance | 150 Ω |
| Cable length | 450 mm |
| Operating temperature range | -10...+55 °C |
| Maximum humidity | 93 ±3% |
| Environmental class according to EN50130-5 | II |
| Case color | white or brown |
| Weight | 12 g |
Technical data source: datasheet of model B-2S Link
FAQ - frequently asked questions
For what application is the B-2S detector designed?
The B-2S detector is designed for perimeter protection, i.e. for detecting the opening of doors and windows in burglary and assault alarm systems.
How is the B-2S detector mounted?
The B-2S detector is flush-mounted into the wing and frame of the door or window, which ensures its concealment after installation.
Is the detector visible after installation?
Once installed, the B-2S detector is invisible from the outside because the working parts are embedded in the sash and frame.
What are the dimensions of the reed switch housing?
The reed switch housing has dimensions of 27 x 6.5 mm.
What are the dimensions of the magnet housing?
The magnet housing has dimensions of 19.05 x 6.35 mm.
What is the contact type of the B-2S detector?
The B-2S detector is an NC type detector.
What is the distance of closing and opening contacts of the reed switch?
The contact closing distance is 25 mm, while the contact opening distance is 33 mm.
What is the operating temperature range of the detector?
The B-2S detector operates in a temperature range from -10 to +55 °C.
What is the maximum humidity allowed by the manufacturer?
The maximum operating humidity of the detector is 93 ±3%.
What is the environmental class of the device?
The B-2S detector belongs to environmental class II according to the EN50130-5 standard.
What are the electrical parameters of the contacts?
The maximum switching voltage is 100 V, the maximum switching current is 500 µA, and the maximum load power is 10 W.
What is the maximum contact resistance?
The maximum contact resistance of the B-2S detector is 150 Ω.
What is the length of the detector's wires?
The wires coming out of the B-2S detector are 450 mm long.
What is the mass of the detector?
The mass of the B-2S detector is 12 g.
In what color versions is the detector available?
The manufacturer offers the B-2S detector in white and brown versions.
Is the detector suitable for use in humid environments?
The hermetic housing and permissible high humidity of operation allow the detector to be used in environments with increased humidity, within the limits specified in the technical data.
What alarm system can the B-2S detector be connected to?
The B-2S detector can be connected to alarm systems that accept NC-type detectors, while maintaining the electrical parameters specified by the manufacturer of the master device.
Do miniature dimensions allow installation in narrow profiles?
The small housing diameter of 6.5 mm allows the detector to be mounted in profiles with limited mounting space, according to installation requirements.
Does the datasheet allow for differencesnice between the appearance and photos?
The manufacturer stipulates that the actual appearance of the products may differ from the products shown in the photos, and the product descriptions are for informational purposes.
Summary
The B-2S is a miniature hermetic NC-type reed detector designed for recessed mounting in doors and windows in burglary and assault alarm systems. The device is characterized by small dimensions, specific electrical parameters and the ability to operate in a wide range of temperatures and humidity.
