B-2 magnetic recessed hermetic detector

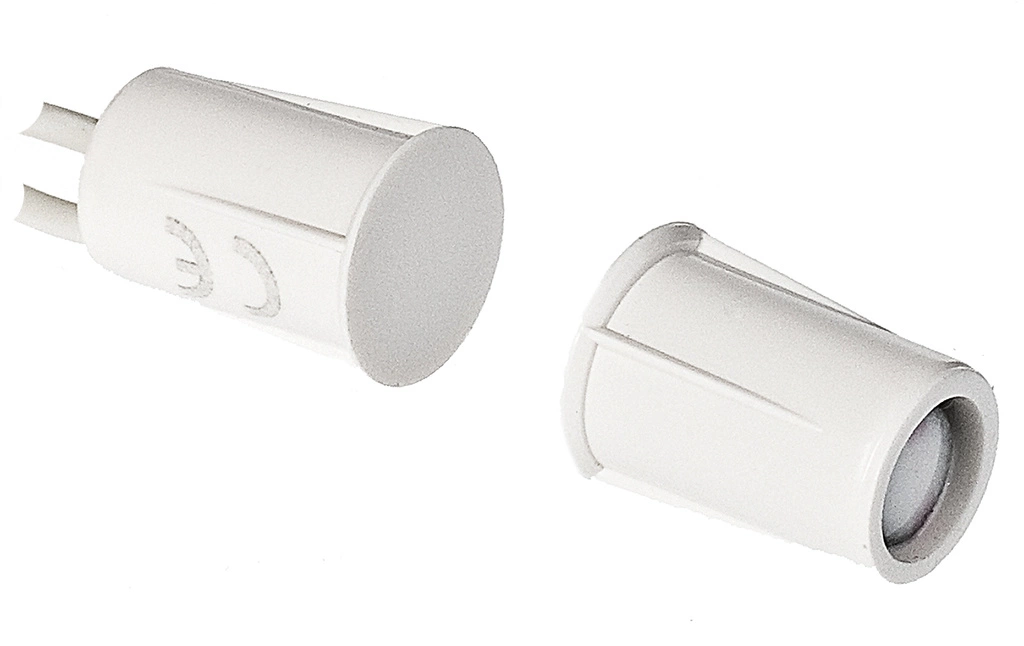

The B-2 magnetic detector is a small, hermetic reed front detector designed to be recessed into the leaf and frame of doors or windows. When properly installed, it is invisible from the outside and is available in white or brown colors.
- Magnetic detector for perimeter protection of doors and windows
- Recessed installation in the leaf and frame
- Hermetic housing
- Detector type (outside magnetic field): NO
- Available in two color versions: white and brown
Application and characteristics of the B-2 detector
Magnetic detectors are a basic element of perimeter protection, and their standard task is to detect the opening of doors and windows. The B-2 model, with its recessed mounting in the leaf and frame, allows discreet installation without interfering with the aesthetics of the premises. The hermetic design of the housing is conducive to using the detector in places exposed to increased humidity and variable environmental conditions within the limits specified by the manufacturer.
Thanks to the precisely defined closing and opening distances of the reed relay contacts, the B-2 detector ensures repeatable and predictable operation in burglary and assault signaling systems. The low weight and compact dimensions of the magnet and reed switch housing facilitate installation in typical door and window profiles, according to installation requirements.
Operating conditions and design features
The B-2 detector operates in a wide range of operating temperatures and at high permissible humidity, which allows it to be used in diverse environments. Environmental class according to EN50130-5 II defines the conditions under which the device maintains its declared parameters, which is important when designing professional SSWiN systems. The hermetic housing and NO off-field type of operation are adapted to the standard requirements used in alarm installations.
Technical data
| Parameter | Value | Unit / Notes |
|---|---|---|
| Maximum switchable voltage of the reed switch | 100 | V DC |
| Maximum switchable current | 500 | µA |
| Operating temperature range | -10...+55 | °C |
| Maximum humidity | 93±3 | % |
| Closing distance of reed switch contacts | 19 | mm |
| Reed switch contact opening distance | 20 | mm |
| Magnet case dimensions | ø9 x 14.5 | mm |
| Reed switch housing dimensions | ø9 x 14.5 | mm |
| Weight | 10 | g |
| Detector type (outside magnetic field) | NO | normally open contact |
| Environmental class in accordance with EN50130-5 | II | - |
| Mounting | recessed | into the sash and frame of the door or window |
| Color versions | white, brown | - |
Source of technical data:data sheet of the B-2 model Link
FAQ - the most common questions about the B-2 detector
What type of detector is the B-2 outside magnetic field?
The B-2 off-field detector is a NO type detector (with a normally open output).
What type of mounting is the B-2 detector designed for?
The B-2 detector is designed for recessed mounting in the wing and frame of doors or windows.
Is the housing of the B-2 detector hermetic?
Yes, the B-2 detector has a hermetic housing.
What are the maximum dimensions of the magnet housing in the B-2 detector?
The dimensions of the magnet housing are ø9 x 14.5 mm.
What are the dimensions of the reed switch housing in the B-2 detector?
The dimensions of the reed switch housing are ø9 x 14.5 mm.
What is the maximum switchable voltage of the reed switch in the B-2?
The maximum switchable voltage of the reed switch in the B-2 detector is 100 V DC.
What is the maximum switchable current of the B-2 detector?
The maximum switchable current is 500 µA.
In what temperature range can the B-2 detector operate?
The operating temperature range of the B-2 detector is -10 to +55 °C.
What is the maximum permissible operating humidity of the B-2 detector?
The maximum operating humidity of the B-2 detector is 93±3%.
What are the closing and opening distances of the reed switch contacts in the B-2?
The closing distance of the reed switch contacts is 19 mm, and the opening distance is 20 mm.
What is the mass of the B-2 detector?
The mass of the B-2 detector is 10 g.
What environmental class according to EN50130-5 does the B-2 detector have?
The B-2 detector has an environmental class II according to EN50130-5.
What kind of systems can the B-2 detector be used for?
The B-2 detector can be used in intrusion alarm systems as a perimeter protection element.
Is the B-2 detector visible after mounting?
After recessed mounting, the B-2 detector is invisible from the outside.
In what color versions is the B-2 detector available?
The B-2 detector is available in white and brown versions.
Is the B-2 suitable for mounting in doors and windows at the same time?
Yes, the B-2 detector is designed to be installed in both doors and windows, in the sash and frame.
The parameters described are taken from the manufacturer's data sheet and are used to select the B-2 detector for appropriate security applications.
Summary
The B-2 magnetic detector is a hermetic, recessed reed detector designed for discreet perimeter protection of doors and windows. The device is characterized by the manufacturer's specified electrical and environmental parameters for use in professional intrusion alarm systems.
