- Magnetic detector B-1 NC for surface mounting, detects opening of doors and windows, reed contact opening distance 30 mm.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
B-1 - small hermetic magnetic detector for perimeter protection

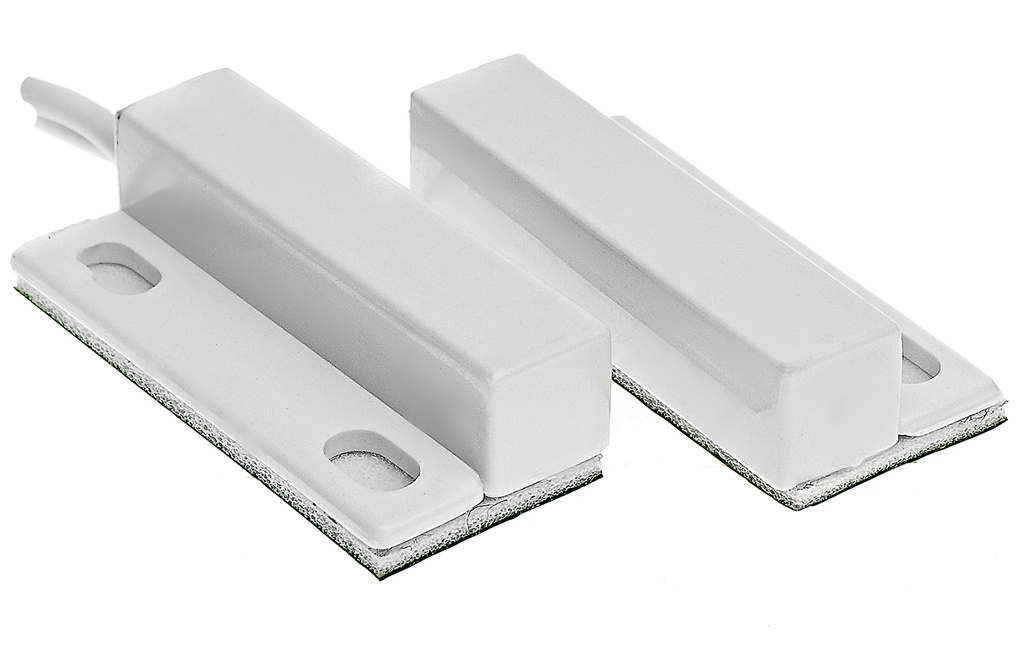

The B-1 magnetic detector is a small, hermetic reed detector designed for perimeter protection by detecting the opening of doors and windows. This model is designed for surface mounting and is available in white and brown color versions.
- Designed for surface mounting (screwed or glued)
- Small, airtight detector housing
- Operating temperature range from -10 to +55 °C
- Maximum operating humidity 93±3%
- Available in two color versions: white and brown
Application of the B-1 detector
The B-1 magnetic detector is a basic element of perimeter protection, whose standard task is to detect the opening of doors and windows. Thanks to the use of a reed switch, the detector reacts to a change in the position of the element with a magnet, which makes it possible to effectively monitor the status of the protected leaves.
The B-1 model is designed for surface mounting, which facilitates installation on both doors and windows. The detector can be mounted by screwing it to the surface or gluing it to the surface, which gives the installer the flexibility to choose a mounting method suitable for the type of surface.
Design and operating conditions
The B-1 detector's housing is small and airtight, which facilitates installation in areas with limited space and provides resistance to environmental conditions specified for environmental class II according to EN50130-5. The reed switch housing and magnet housing have identical dimensions, which facilitates aesthetic installation.
The detector can operate in a wide temperature range from -10 to +55 °C and at a maximum humidity of 93±3%, which allows it to be used in typical conditions ekspLoatation for intrusion alarm systems.
Technical data
| Parameter | Value |
|---|---|
| Type of detector | NC |
| Purpose | Magnetic (reed) detector for perimeter protection - detection of door and window opening |
| Mounting method | Surface mounted, screwed or glued |
| Color versions | White, brown |
| Operating temperature range | -10...+55 °C |
| Maximum humidity | 93±3% |
| Environmental class according to EN50130-5 | II |
| Contact closure distance of reed switch | 24 mm |
| Reed relay contact opening distance | 30 mm |
| Magnet case dimensions | 28 x 12.5 x 6.5 mm |
| Reed switch housing dimensions | 28 x 12.5 x 6.5 mm |
| Cable length | 450 mm |
| Maximum switching voltage | 100 V |
| Maximum switchable current | 500 µA |
| Maximum load power | 10 W |
| Maximum contact resistance | 150 Ω |
| Weight | 12 g |
