B-2T - magnetic reed detector for recessed mounting

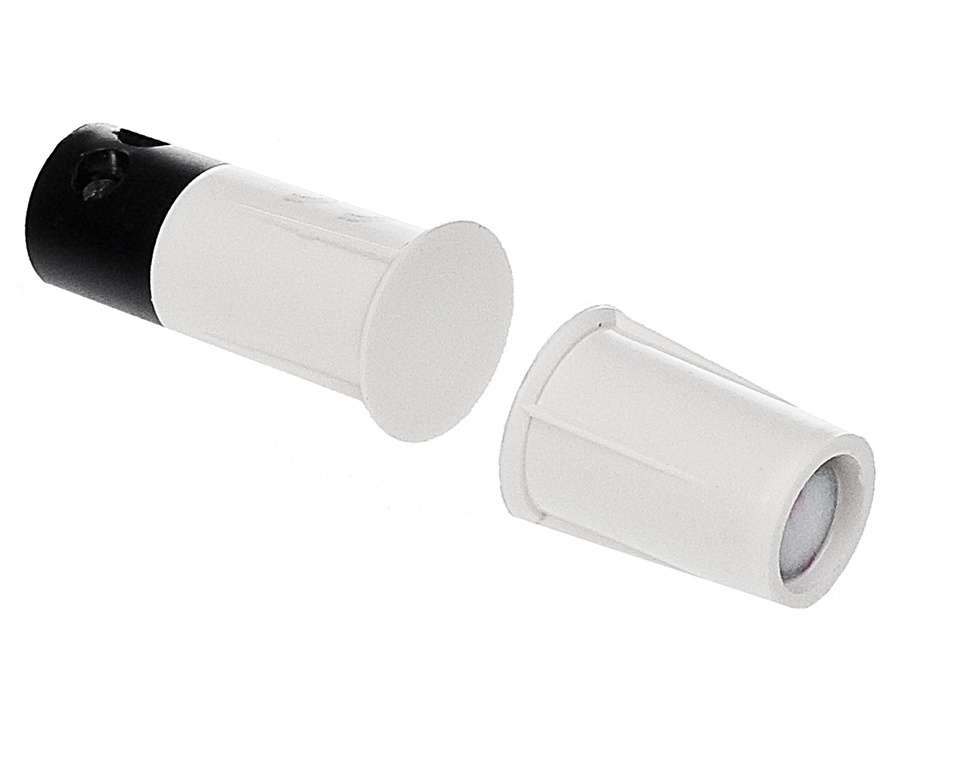

B-2T is a medium-sized wired magnetic (reed) detector for perimeter protection, designed to detect the opening of doors and windows. The detector is recessed-mounted in the leaf and frame, equipped with screw terminals and available in white and brown color versions.
- Medium-sized front reed detector for perimeter protection
- Flush mounting in the sash and frame of the door or window
- Equipped with screw terminals (bolted)
- Invisible from the outside when properly installed
- Available in white and brown versions
Application and purpose
The B-2T magnetic detector is an essential component of a building perimeter protection system for detecting the opening of doors and windows. Thanks to its NC-type reed switch design, the device cooperates with alarm control panels, signaling violation of the protected zone by changing the state of the reed switch contacts. This solution works well in burglary and assault signaling systems, where early detection of an attempt to enter the protected facility is required.
Construction and mounting
The B-2T is a recessed mount detector, installed in the leaf and frame of the door or window, which makes it invisible from the outside after installation. The housing of the reed switch and magnet has compact dimensions that allow it to be used in standard woodwork profiles. The use of screw terminals makes it easy to connect the wires and service the device. The detector meets the requirements of environmental class II according to the EN 50130-5 standard, which confirms its adaptation to typical conditions expLoatation in protected objects.
Operating conditions and parameters
The device is designed to operate in a wide range of temperatures and increased humidity, which allows the detector to be used in various environmental conditions. The specified values for the closing and opening distances of the reed switch contacts facilitate the correct design and execution of the installation to ensure stable and repeatable detection of the opening of protected elements. Electrical parameters, such as maximum switchable voltage, maximum current and load power, determine the safe conditions of cooperation of the detector with other elements of the alarm system.
Technical data
| Parameter | Value |
|---|---|
| Type of detector | reed detector, NC |
| Purpose | perimeter protection, door and window opening detection |
| Mounting method | recessed into door or window sash and frame |
| Operating temperature range | -10...+55 °C |
| Maximum humidity | 93 ± 3% |
| Closing distance of reed switch contacts | 19 mm |
| Distance of opening reed switch contacts | 21 mm |
| Reed switch housing dimensions | 23.5 × 11 mm |
| Magnet case dimensions | 14.5 × 11 mm |
| Maximum switchable voltage | 100 V |
| Maximum switchable current | 500 µA |
| Maximum load power | 10 W |
| Maximum contact resistance | 200 Ω |
| Environmental class as per EN 50130-5 | II |
| Weight | 6 g |
| Connection terminals | screw terminals (twisted) |
| Colors | white and brown version |
Technical data source: datasheet of B-2T model Link
FAQ - Frequently Asked Questions
1. What is the B-2T detector used for?
The B-2T detector is used for perimeter protection by detecting the opening of doors and windows in burglary and assault alarm systems.
2. What is the type of contacts in the B-2T detector?
The B-2T is an NC-type reed detector, which means that the contacts are short-circuited in the idle state.
3. How is the B-2T detector mounted?
The detector is designed for recessed mounting in the wing and frame of a door or window.
4. Is the detector visible after mounting?
After proper installation, the B-2T detector is invisible from the outside.
5. What colors are available for the housing of the B-2T detector?
The B-2T detector is available in white and brown.
6. What is the operating temperature range of the detector?
The operating temperature range of the B-2T detector is -10 to +55 °C.
7. What is the maximum operating humidity allowed by the manufacturer?
The maximum operating humidity of the detector is 93 ± 3%.
8. What are the closing and opening distances of the reed switch contacts?
The closing distance of the reed switch contacts is 19 mm, and the opening distance is 21 mm.
9. What are the dimensions of the reed switch and magnet housing?
The dimensions of the reed switch housing are 23.5 × 11 mm, and the dimensions of the magnet housing are 14.5 × 11 mm.
10. What is the maximum switchable voltage of the detector?
The maximum switchable voltage of the B-2T detector is 100 V.
11. What is the maximum switchable current?
The maximum switching current of the B-2T detector is 500 µA.
12. What is the maximum load power allowed by the detector?
The maximum load power for the B-2T detector is 10 watts.
13. What is the maximum contact resistance?
The maximum contact resistance of the reed switch in the B-2T detector is 200 Ω.
14. What environmental class according to EN 50130-5 does the detector belong to?
The B-2T detector belongs to environmental class II according to EN 50130-5.
15. What is the mass of the B-2T detector?
The mass of the B-2T detector is 6 g.
16. What type of terminals are used in the detector?
The B-2T detector uses screw (bolted) terminals for wiring.
17. Is the B-2T a hard-wired detector?
Yes, the B-2T is a hard-wired detector designed for use in intrusion alarm systems.
18. What category of devices does the B-2T fall into in the manufacturer's offer?
The B-2T falls into the category of hard-wired detectors, particularly perimeter protection detectors.
The B-2T product is a wired magnetic detector with compact dimensions, designed for recessed installation in door or window casements and frames. The device provides effective perimeter protection in intrusion alarm systems, meeting the requirements of environmental class II according to EN 50130-5.
