Magnetic hermetic detector SATEL B-1P

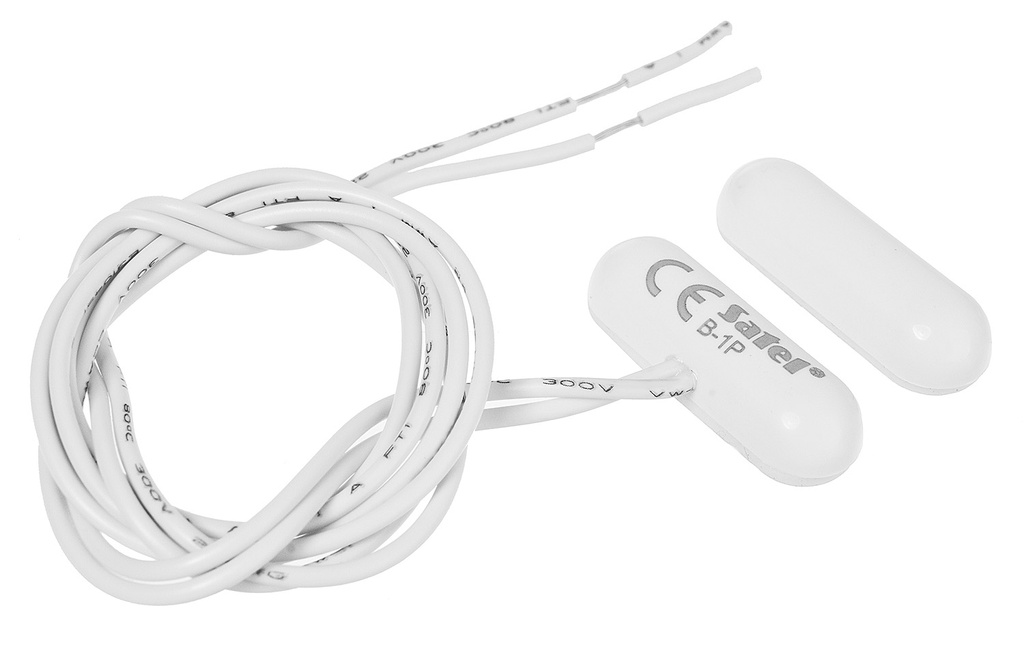

The B-1P magnetic detector from SATEL is a hermetic reed detector for perimeter protection of doors, windows and other opening elements. It is designed for surface stick-on mounting and is available in white color.
- Hermetic reed detector for perimeter protection
- Surface mounting - glued to the substrate
- Small oblong housing with dimensions of 28 × 9.5 × 5 mm
- Operating temperature range from -10 to +55 °C
- Environmental class II according to EN 50130-5
Intended use and application of the B-1P detector
The B-1P magnetic detector is used for detecting the opening of doors, windows and other moving elements in burglary and robbery signaling systems. Thanks to its reed switch design, it enables effective perimeter protection, notifying the alarm system of an attempted entry through the opening of a secured leaf.
The B-1P model has the form of a small oblong lozenge, which facilitates aesthetic installation on window and door frames. The detector is designed for surface mounting by gluing to the substrate, which allows installation without drilling or interfering with the structure of the woodwork.
Design and mechanical properties
The hermetic housing of the B-1P detector protects the reed switch element from external influences, increasing the reliability of operation. Both the reed switch housing and the magnet housing have identical dimensions of 28 × 9.5 × 5 mm, which ensures a consistent appearance of the set and facilitates correct positioning of the elements in relation to each other.
The detector is equipped with 400 mm long cables, which allows convenient connection to the control panel or input expander of the alarm system. The weight of the detector is 20 g, so the element does not weigh down the structure on which it is mounted. The B-1P comes in a white version, and a brown B-1P BR model is available as a color variant.
Electrical and environmental parameters
The B-1P detector is an NC (normally closed) detector, which means that the contacts are short-circuited in the resting state, and the circuit is broken when the protected element is opened. Electrical parameters include a maximum switching voltage of 100 V, a maximum load power of 10 W, and a maximum switching current of 500 µA, with a maximum contact resistance of 200 Ω.
In terms of environmental resistance, the B-1P detector operates in a temperature range of -10 to +55 °C and at a maximum humidity of 93 ± 3%. The device meets the requirements of environmental class II in accordance with EN 50130-5, which confirms that it can be used in typical indoor and semi-protected conditions.
Technical data
| Parameter | Value |
|---|---|
| Device type | Hermetic magnetic reed detector |
| Model | B-1P |
| Purpose | Detection of opening of doors, windows, etc. |
| Mounting method | Surface mounted, glued to the surface |
| Housing color | White (version B-1P) |
| Available color variant | B-1P BR (brown) |
| Dimensions of the reed switch housing | 28 × 9.5 × 5 mm |
| Magnet case dimensions | 28 × 9.5 × 5 mm |
| Operating temperature range | -10...+55 °C |
| Maximum humidity | 93 ± 3% |
| Weight | 20 g |
| Detector type | NC |
| Contact closure distance of reed relay | 19 mm |
| Reed relay contact opening distance | 21 mm |
| Maximum switchable voltage | 100 V |
| Maximum load power | 10 W |
| Maximum switchable current | 500 µA |
| Maximum contact resistance | 200 Ω |
| Cable length | 400 mm |
| Environmental class according to EN 50130-5 | II |
Technical data source: datasheet for model B-1P Link
FAQ - Frequently Asked Questions
1. What is the B-1P detector designed for?
The B-1P detector is designed for detecting the opening of doors, windows and other opening elements in burglary and assault alarm systems.
2. What is the installation method of the B-1P detector?
The B-1P detector is designed for surface mounting by gluing it to the floor.
3. What are the dimensions of the B-1P detector's housing?
The reed switch housing and magnet housing have dimensions of 28 × 9.5 × 5 mm.
4. In what temperature range can the B-1P detector operate?
The operating temperature range of the B-1P detector is -10 to +55 °C.
5. What is the maximum operating humidity of the detector?
The maximum operating humidity of the B-1P detector is 93 ± 3%.
6. What type is the B-1P detector?
The B-1P detector is an NC, or normally closed, type.
7. What are the tripping distances of the reed switch contacts?
The closing distance of the reed switch contacts is 19 mm, and the opening distance is 21 mm.
8. What is the maximum switching voltage of the B-1P detector?
The maximum switching voltage for the B-1P detector is 100 V.
9. What is the maximum contact load power?
The maximum contact load power of the B-1P detector is 10 W.
10. What is the maximum switching current?
The maximum switching current of the B-1P detector is 500 µA.
11. What is the maximum contact resistance?
The maximum contact resistance of the B-1P detector is 200 Ω.
12. What environmental class according to EN 50130-5 does the detector meet?
The B-1P detector meets environmental class II according to EN 50130-5.
13. What is the length of the wires of the B-1P detector?
The wire length of the B-1P detector is 400 mm.
14. What is the mass of the B-1P detector?
The weight of the B-1P detector is 20 g.
15. Is there any other color version of this model?
Yes, in addition to the white version of the B-1P, a brown color version of the B-1P BR is available.
16. What kind of systems can the B-1P detector be used for?
The B-1P detector can be used in intrusion alarm systems as a perimeter protection element.
17. Does the B-1P detector have an airtight housing?
Yes, the B-1P detector has a small hermetic housing in the form of an oblong lozenge.
18. How is the B-1P detector attached to the ground?
The detector is attached to the substrate by gluing, which allows installation without drilling.
19. Does the shape of the B-1P detector make it easy to mount on window and door frames?
Yes, the small oblong housing in the form of a lozenge facilitates aesthetic installation on window and door frames.
20. Is the device designed for indoor applications?
The environmental parameters and Class II according to EN 50130-5 indicate that the B-1P detector is designed for typical indoor and semi-protected applications.
Summary
The SATEL B-1P magnetic detector is a hermetic surface-mount reed detector designed to detect the opening of doors and windows in intrusion alarm systems. The device features small dimensions, environmental class II according to EN 50130-5, and a set of precisely defined electrical and environmental parameters.
