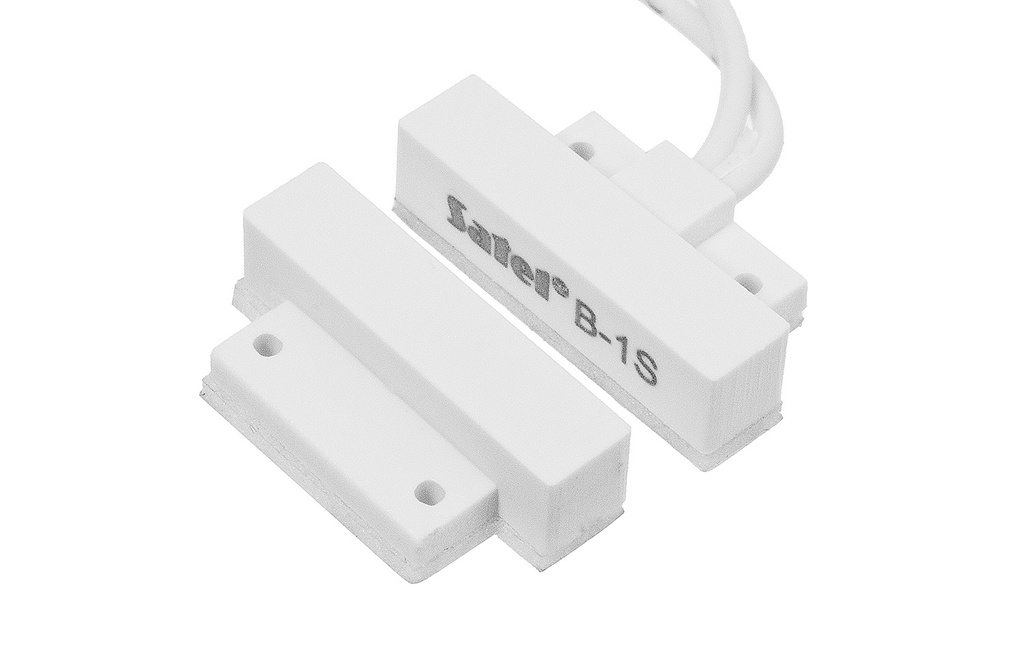

B-1S miniature hermetic surface mount reed detector
The B-1S is a miniature hermetic magnetic detector designed to detect the opening of doors, windows and other openings. The detector is surface-mounted by gluing it to the ground or attaching it with miniature nails.
- Miniature hermetic housing with dimensions of 17 x 8 x 4 mm
- Designed for surface mounting (glued or nailed)
- Perimeter protection for doors, windows and other elements
- Detector type NC (normally closed)
- Wide operating temperature range from -10 to +55 °C
Application and mounting method
The B-1S magnetic detector is designed to signal the opening of elements such as doors or windows in burglary and assault signaling systems. Thanks to the miniature housing dimensions of both the reed switch and the magnet (17 x 8 x 4 mm), it can be used in places with limited installation space, providing discreet perimeter protection.
The device is surface-mounted - the components can be glued to the substrate or attached using miniature nails. Such a solution facilitates installation in various types of door and window frames, without milling or interfering with the design of the protected element.
Structural and environmental characteristics
The B-1S has a hermetic housing, which is conducive to stable operation in diverse environmental conditions. The detector meets the requirements of environmental class II according to EN 50130-5, which means that it can be used in typical indoor conditions where temperature and humidity changes occur within the limits of the specification.
The operating temperature range of the detector is -10 to +55 °C, and the maximum relative humidity reaches 93 ± 3%. Such parameters allow the device to be used in most standard rooms of residential, office and commercial buildings, while meeting the manufacturer's requirements.
Electrical and operational parameters
The B-1S detector is of NC type, which means that in the resting state the contacts are closed, and the opening of the protected element causes them to open and change the state in the alarm system. The properties of the reed switch, such as maximum voltage and switching current, have been selected to work with typical control panels and modules of alarm systems.
The closing and opening distances of the reed switch contacts specified in the technical data (10 mm and 12 mm) determine the required mounting geometry between the detector and magnet. The cable length of 450 mm makes it easy to bring the wiring to the appropriate installation boxes or system terminal strips.
Technical data
| Parameter | Value |
|---|---|
| Device type | Miniature hermetic reed detector (magnetic detector) |
| Purpose | Detection of opening of doors, windows, etc. (perimeter protection) |
| Mounting method | Surface mounted, glued to the surface or fixed with miniature nails |
| Color versions | B-1S (white), B-1S BR (brown) |
| Detector type | NC |
| Detector (reed switch) housing dimensions | 17 x 8 x 4 mm |
| Magnet housing dimensions | 17 x 8 x 4 mm |
| Operating temperature range | -10...+55 °C |
| Maximum humidity | 93 ± 3% |
| Closing distance of reed switch contacts | 10 mm |
| Distance of opening reed switch contacts | 12 mm |
| Maximum switchable voltage | 100 V |
| Maximum load power | 10 W |
| Maximum switchable current | 500 µA |
| Maximum contact resistance | 200 Ω |
| Cable length | 450 mm |
| Environmental class according to EN 50130-5 | II |
| Weight | 4 g |
Technical data source: datasheet for model B-1S Link
FAQ - frequently asked questions
1. What is the B-1S detector used for?
The B-1S detector is used to detect the opening of doors, windows and similar elements in burglar alarm systems.
2. How is the B-1S detector installed?
The detector is surface-mounted by gluing it to the ground or attaching it with miniature nails.
3. What are the dimensions of the B-1S detector?
The reed switch housing measures 17 x 8 x 4 mm, and the magnet housing also measures 17 x 8 x 4 mm.
4. In what temperature range can the detector operate?
The operating temperature range of the B-1S detector is -10 to +55 °C.
5. What is the maximum operating humidity of the detector?
The maximum allowable operating humidity is 93 ± 3%.
6. What type is the B-1S detector?
The B-1S is an NC type detector, i.e. normally closed.
7. What are the tripping distances of the reed switch?
The closing distance of the reed switch contacts is 10 mm, and their opening distance is 12 mm.
8. What is the maximum switching voltage of the contacts?
The maximum switching voltage of the contacts of the B-1S detector is 100 V.
9. What is the maximum contact load power?
The maximum load power of the contacts is 10 watts.
10. What is the maximum switching current?
The maximum switching current of the contacts is 500 µA.
11. What is the maximum contact resistance?
The maximum contact resistance of the B-1S detector is 200 Ω.
12. How long are the wires of the detector?
The length of the wires leading from the B-1S detector is 450 mm.
13. What environmental class does the detector meet?
The B-1S detector meets the requirements of environmental class II according to EN 50130-5.
14. What is the mass of the B-1S detector?
The weight of the B-1S detector is 4 g.
15. In what color versions is the detector available?
The detector is available in white (B-1S) and brown (B-1S BR) versions.
16. Is the B-1S suitable for perimeter protection of windows?
Yes, the B-1S is designed for perimeter protection and can be used to protect windows.
17. Does the detector have an airtight housing?
Yes, the B-1S has a miniature hermetic housing.
18. Is milling required for mounting the detector?
No, the detector is designed for surface mounting and no milling is required.
19. Is the B-1S designed for intrusion detection systems?
Yes, the B-1S is a component designed for use in intrusion alarm systems.
20. Can the actual appearance of the product differ from the photos?
Yes, the manufacturer stipulates that the actual appearance of the products may differ from the products shown in the photos.
Summary
The B-1S is a miniature hermetic NC-type magnetic detector designed for surface mounting in intrusion alarm systems. With its small dimensions, defined environmental and electrical parameters, and simple installation, it is a universal component for perimeter protection of doors and windows.
