B-2FLF recessed magnetic detector with flange

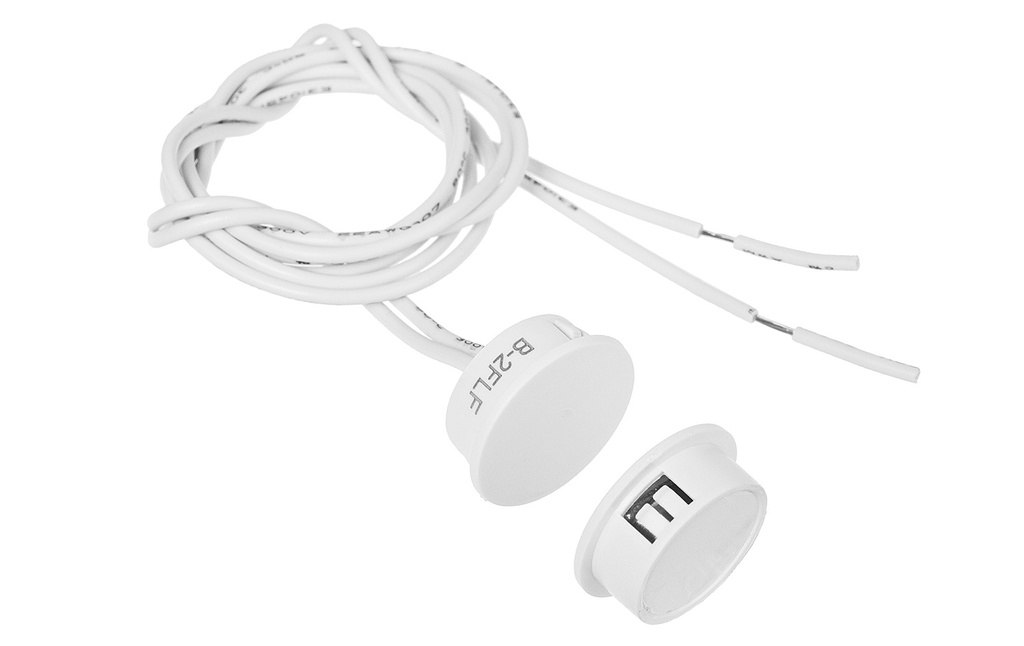

The B-2FLF reed detector is designed to detect the opening of doors, windows and other movable elements in burglary and robbery alarm systems. The device is made in a flanged recessed version, so it remains invisible from the outside after installation and is available in white (B-2FLF) and brown (B-2FLF BR) color versions.
- Magnetic reed detector for perimeter protection
- Recessed mounting with round flange
- Diameter of detector housing 15 mm
- Operating temperature range from -10 to +55 °C
- Design suitable for operation in environmental class II according to EN50130-5
Application and mounting
The B-2FLF magnetic detector is designed to detect the opening of doors, windows and similar items by controlling the position of the magnet relative to the reed switch. Thanks to recessed mounting in the door leaf or woodwork frame, the detector elements remain invisible after closing, which preserves the aesthetics of the premises. The detector's housing is medium-sized with a round flange and a diameter of 15 mm, which facilitates installation in standard openings.
The model comes in two color versions: white (B-2FLF) and brown (B-2FLF BR) to match the color of windows or doors. The use of an NC-type reed switch allows it to work with typical control panels, in which the supervisory circuit is short-circuited when closed. The cable length of 450 mm makes it easy to bring the signal to an installation box or a junction strip.
Operating parameters and environmental resistance
The B-2FLF detector is characterized by specific actuation distances of the reed switch contacts, which allows proper alignment of the magnet element with respect to the reed switch element. The contact closure distance is 13 mm, while the opening distance is 18 mm, which defines the safe operating range of the set. The dimensions of the magnet housing and the reed switch housing are 6.3 x 18 mm, which makes it easy to drill the appropriate mounting holes.
The device is suitable for operation in temperatures from -10 to +55 °C with a maximum humidity of 93±3%, which allows the detector to be used in typical indoor conditions defined as environmental class II according to EN50130-5. The maximum switching voltage of the contacts is 100 V, the maximum load power is 10 W, and the maximum switching current is 500 µA, with a maximum contact resistance of 200 Ω. The weight of the device is 8 g, which is important for installation in components with limited mechanical strength.
Technical data
| Parameter | Value |
|---|---|
| Device type | Magnetic reed detector for perimeter protection |
| Mounting method | Recessed, housing with round flange |
| Diameter of detector housing | 15 mm |
| Magnet housing dimensions | 6.3 x 18 mm |
| Dimensions of reed switch housing | 6.3 x 18 mm |
| Detector type | NC |
| Contact closure distance of reed relay | 13 mm |
| Reed relay contact opening distance | 18 mm |
| Operating temperature range | -10...+55 °C |
| Maximum humidity | 93±3% |
| Environmental class according to EN50130-5 | II |
| Maximum switchable voltage | 100 V |
| Maximum load power | 10 W |
| Maximum switchable current | 500 µA |
| Maximum contact resistance | 200 Ω |
| Cable length | 450 mm |
| Weight | 8 g |
| Available color versions | White (B-2FLF), brown (B-2FLF BR) |
Technical data source: datasheet of model B-2FLF Link
FAQ
What applications is the B-2FLF detector designed for?
The B-2FLF detector is designed to detect the opening of doors, windows and similar elements in burglar alarm systems.
What is the installation method of the B-2FLF detector?
The detector is designed for recessed mounting, in an opening with a diameter suitable for a 15mm housing, with the circular flange remaining at the edge of the opening.
Is the detector visible after mounting?
When properly recessed mounted, the detector is invisible from the outside, preserving the aesthetics of the door or window.
What color versions are available for the B-2FLF model?
The B-2FLF model is available in white (B-2FLF) and brown (B-2FLF BR).
What are the dimensions of the detector housing and magnet?
The diameter of the detector housing is 15 mm, while the dimensions of the magnet and reed switch housing are 6.3 x 18 mm.
What are the tripping distances of the reed switch contacts?
The closing distance of the contacts is 13 mm, and their opening distance is 18 mm.
In what temperature range can the B-2FLF detector work?
The detector can work in the temperature range from -10 to +55 °C.
What is the permissible operating humidity of the detector?
The maximum operating humidity of the detector is 93±3%.
To which environmental class according to EN50130-5 does the B-2FLF belong?
The B-2FLF detector belongs to environmental class II according to EN50130-5.
What is the type of the detector in terms of contact configuration?
The detector is of NC type, which means a normally closed circuit in the idle state.
What is the maximum switching voltage of the contacts?
The maximum switching voltage of the detector's contacts is 100 V.
What is the maximum contact load power?
The maximum load power of the detector's contacts is 10 watts.
What is the maximum current the detector can switch?
The maximum switching current of the detector is 500 µA.
What is the maximum resistance of the contacts?
The maximum resistance of the contacts is 200 Ω.
What is the length of the wires leading from the detector?
The length of the detector's wires is 450 mm.
What is the mass of the B-2FLF detector?
The mass of the B-2FLF detector is 8 g.
Is the B-2FLF detector suitable for typical indoor installations?
Yes, with its environmental class II and temperature range of -10...+55 °C, the detector is designed for typical indoor conditions.
Can the B-2FLF be used in EN50130-5 compliant systems?
Yes, the detector has an environmental class II according to EN50130-5, which allows it to be used in systems based on this standard.
The B-2FLF is a recessed NC-type magnetic detector for perimeter protection, designed to detect the opening of doors and windows in intrusion alarm systems. Its flanged design, small dimensions, specified tripping distances and Class II environmental parameters according to EN50130-5 allow it to be used in typical indoor installations.
