B-2T BR magnetic reed detector for recessed mounting

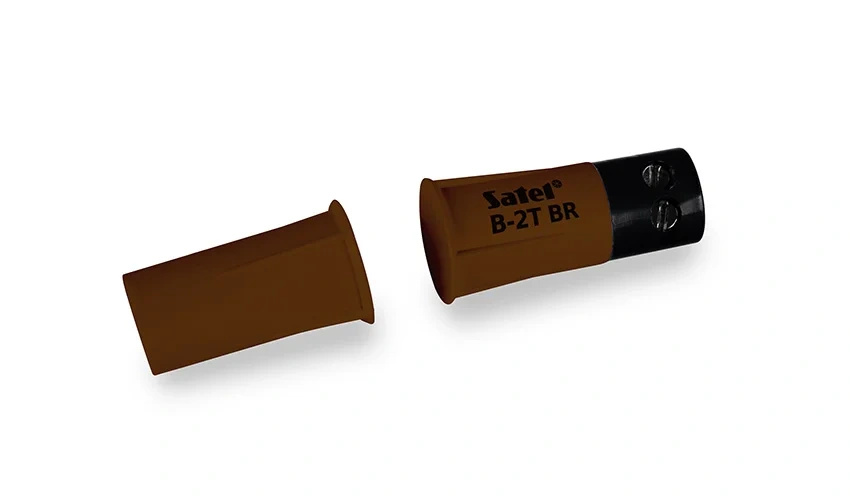

The B-2T BR magnetic reed detector is a medium-sized reed front detector designed for perimeter protection of doors and windows. The device is recessed-mounted into the sash and frame, so it remains invisible from the outside after installation.
- Medium-sized reed detector for doors and windows
- Recessed mounting into the sash and frame
- Equipped with screw terminals (bolted)
- Available in white and brown color versions
- Adapted to work in a wide range of temperatures and humidity
Application and function of the B-2T BR detector
The B-2T BR magnetic detector is a basic component of a perimeter security system designed to detect the opening of doors and windows. Using a reed switch and a matching magnet, it can reliably signal a violation when the leaf is moved away from the frame beyond a certain distance.
Thanks to its installation inside the joinery structure, the detector is not visible from the outside, which improves the aesthetics of the installation and makes it difficult for outsiders to locate it. Model B-2T BR is used both in burglary and robbery alarm systems and in simple opening control installations.
Construction and installation
The housing of the reed switch and the magnet housing have compact dimensions, which facilitates the drilling of holes and precise installation in door or window elements. The manufacturer has provided for mounting the detector in a face-mounted version, recessed into the sash and frame, using screw terminals for wiring.
The B-2T BR model is available in two color variants - white and brown - to better match the type and color of woodwork. The detector has specific tripping distances (contact closure and opening), which should be taken into account when arranging the elements during installation.
Technical data
| Parameter | Value |
|---|---|
| Device type | magnetic reed front detector |
| Purpose | detection of door and window opening (perimeter protection) |
| Mounting | recessed into door or window casement and frame |
| Connection accessories | screw terminals (screw terminals) |
| Operating temperature range | -10...+55 °C |
| Maximum humidity | 93 ± 3% |
| Closing distance of reed switch contacts | 19 mm |
| Distance of opening reed switch contacts | 21 mm |
| Magnet case dimensions | 14.5 × 11 mm |
| Reed switch housing dimensions | 23.5 × 11 mm |
| Detector type (contact configuration) | NC |
| Maximum switching voltage | 100 V |
| Maximum load power | 10 W |
| Maximum contact resistance | 200 Ω |
| Maximum switchable current | 500 µA |
| Environmental class as per EN 50130-5 | II |
| Weight | 6 g |
| Available colors | white, brown |
Source of technical data:data sheet of model B-2T BR Link
FAQ - frequently asked questions
For what application is the B-2T BR detector designed?
The B-2T BR detector is designed to detect the opening of doors and windows as part of perimeter protection systems.
What type of mounting is provided for the B-2T BR?
The B-2T BR is designed for recessed mounting into the leaf and frame of doors or windows.
Is the detector visible after mounting?
After proper recessed mounting, the detector is invisible from the outside.
What are the tripping distances of the reed switch?
The closing distance of the reed switch contacts is 19 mm, and their opening distance is 21 mm.
In what temperature range can the B-2T BR detector operate?
The operating temperature range of the detector is from -10 to +55 °C.
What is the permissible operating humidity of the device?
The maximum operating humidity is 93% with a tolerance of ±3%.
What are the dimensions of the reed switch housing?
The dimensions of the reed switch housing are 23.5 × 11 mm.
What are the dimensions of the magnet housing?
The dimensions of the magnet housing are 14.5 × 11 mm.
What type is this detector in terms of contact configuration?
The B-2T BR detector is an NC type detector.
What is the maximum switching voltage of the contacts?
The maximum switching voltage of the detector is 100 V.
What is the maximum contact load power?
The maximum load power of the contacts is 10 watts.
What is the maximum contact resistance?
The maximum contact resistance of the B-2T BR detector is 200 Ω.
What is the maximum switching current?
The maximum switching current of the contacts is 500 µA.
In what environmental class according to EN 50130-5 does the detector operate?
The B-2T BR detector belongs to environmental class II according to EN 50130-5.
What is the mass of the B-2T BR detector?
The weight of the detector is 6 g.
In what color versions is this model available?
The detector is available in white and brown versions.
What connectors are used in the detector?
The detector uses screw (twist) terminals for wiring.
What system can the B-2T BR detector be connected to?
The detector can be used in intrusion alarm systems as a perimeter protection element.
The B-2T BR model is a compact magnetic detector designed for discreet protection of opening door and window frames. The device offers specific electrical and environmental parameters, allowing its use in typical conditions ekspLoatation of the interior.
