INT-TSH2R-B - touch keypad with MIFARE proximity card reader

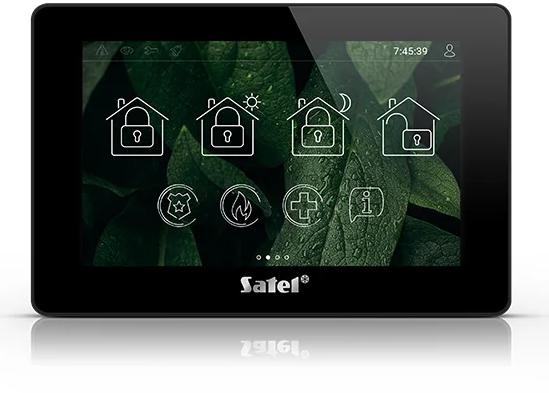

INT-TSH2R-B is a touch-screen keypad designed to operate and program the SATEL INTEGRA, INTEGRA PLus, VERSA and PERFECTA 64 M alarm control panels. The device features a 7-inch capacitive glass screen and a built-in 13.56 MHz MIFARE proximity card reader.
- 7-inch capacitive glass touchscreen with gesture support
- Resolution of 1024×600 and display of 16.7 million colors (true color)
- Works with INTEGRA, INTEGRA PLus, VERSA and PERFECTA 64 M control panels
- Built-in 13.56 MHz MIFARE proximity card reader
- Grade 3 security level in accordance with EN 50131
Intended use and application
The INT-TSH2R-B keypad is designed for everyday operation, programming and supervision of alarm systems based on INTEGRA, INTEGRA PLus, VERSA and PERFECTA 64 M control panels. The device works well in both residential and commercial facilities, providing convenient control of burglary and assault alarm systems and building automation components, including KNX.
With its large color display and customizable interface, the keypad blends well with both modern and traditional interiors. The built-in MIFARE proximity card reader allows quick and convenient login and system control without the need for a code.
Usability features and ergonomics

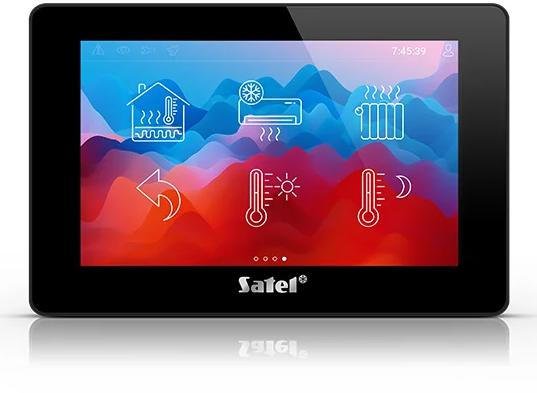

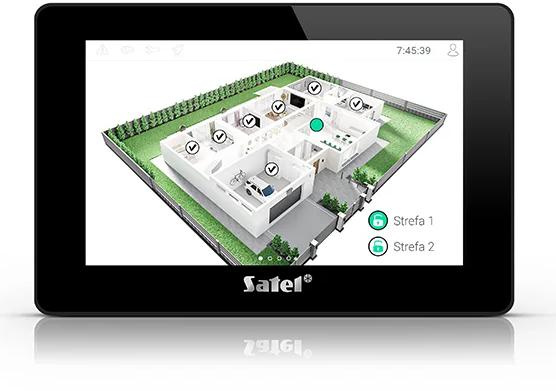

The INT-TSH2R-B interface is based on a multi-level graphical menu that can be extensively configured and personalized. There are up to 24 user screens, more than 20 ready-made graphic themes, and the ability to create your own composition, which makes it easy to tailor the appearance and functionality to the specifics of the facility and user preferences.

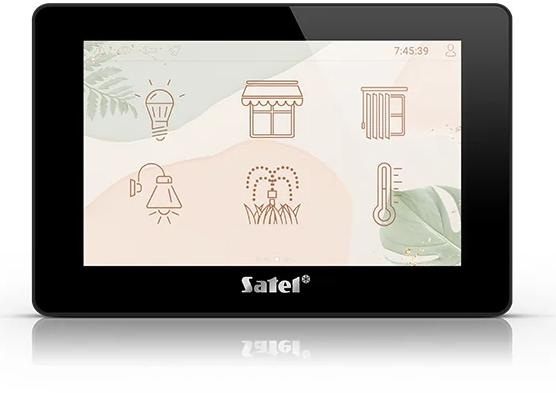

Functional widgets allow direct control of zones, inputs, outputs and automation devices connected to the control panel. The keypad also allows you to define MAKRO commands that trigger a number of different functions in the control panel - including building automation scenarios. Quick triggering of panic, FIRE and HELP alarms is available, and the status bar shows current system states.
Operating comfort and additional capabilities

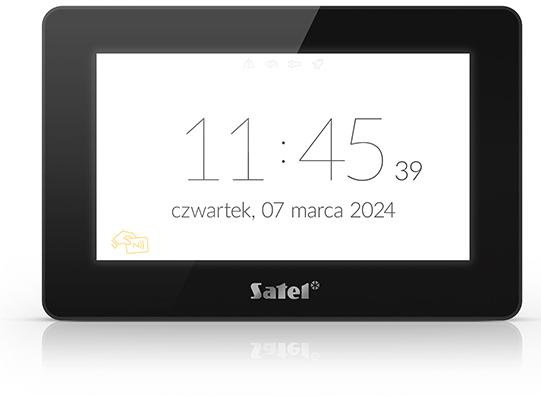

INT-TSH2R-B offers a configurable screen saver that can display the clock, date, statuses of zones, zones, outputs and temperatures (in systems based on INTEGRA, INTEGRA PLus and PERFECTA 64 M control panels). A slideshow function acting as a photo camera is also available, using photos stored on a microSD card.
A built-in speaker provides audible signaling with volume control, and the screen backlight can be independently set for "day" and "night" modes. The keypad has a tamper contact that responds to the opening of the housing and detaching the device from the wall, as well as two programmable wired inputs with support for various types of detectors and parametric configurations (in systems with INTEGRA and INTEGRA PLus control panels).
Technical specifications
| Parameter | Value |
|---|---|
| Model | INT-TSH2R-B |
| Purpose | A keypad for operating and programming the INTEGRA, INTEGRA PLus, VERSA, PERFECTA 64 M control panels |
| Screen | 7" capacitive glass touch screen with gesture support |
| Screen resolution | 1024 × 600 pixels |
| Number of displayed colors | 16.7 million colors (true color) |
| Graphical interface | Multi-level, customizable interface |
| Maximum number of user screens | Up to 24 user screens |
| Graphic themes | More than 20 ready-made themes with the possibility to create your own composition |
| Widgets | Keypad operation, control of alarm system and automation devices |
| MAKRO commands | Yes, activation of a number of functions in the control panel (including building automation) |
| Quick activation of alarms | PANIC, FIRE, HELP |
| Cooperation with control panels | INTEGRA, INTEGRA PLus (Firmware 1.20 or later), VERSA (Firmware 1.10 or later), PERFECTA 64 M |
| Screen saver | Display of clock, date, partition statuses, zones, outputs, temperatures (INTEGRA, INTEGRA PLus, PERFECTA 64 M) |
| Photorama function | Possibility of displaying a slide show |
| System status indicators | Located on the status bar |
| Proximity card reader | MIFARE 13.56 MHz (supported by INTEGRA and INTEGRA PLus control panels) |
| Supported MIFARE card types | Ultralight CSN/SSN; Classic CSN/SSN/MSN; DESFire (EV1 / EV2 / EV3) CSN/MSN |
| Number of programmable wired inputs | 2 (only with INTEGRA and INTEGRA PLus control panels) |
| Supported detector types for zones | NO, NC, rolling shutter and vibration type detectors |
| Zone parametric configurations | EOL, 2EOL, 3EOL (3EOL when working with INTEGRA panel PLus), programming of resistor values |
| Built-in speaker | Yes, for audible signaling, with volume control |
| Backlighting adjustment | Yes, with division into "day" and "night" modes |
| Memory card reader | Built-in microSD card reader |
| Supported memory cards | microSD, microSDHC |
| Tamper contact | Responds to opening of the case and detachment from the wall |
| Available color versions | White (INT-TSH2R-W) and black (INT-TSH2R-B) |
| Power supply voltage | 12 V DC ±15% |
| Current consumption in standby state | 350 mA |
| Maximum current consumption | 475 mA |
| Operating temperature range | -10°C ... +55°C |
| Maximum humidity | 93 ±3% |
| Environmental class according to EN 50130-5 | II |
| Degree of protection according to EN 50131 | Grade 3 |
| Operating frequency of the reader | 13.553...13.567 MHz |
| Reading range of MC-DF3-2 encrypted card | Up to 40 mm |
| Housing dimensions (W × H × D) | 196 × 129 × 22 mm |
| Weight | 386 g |
Source of technical data:data sheet of INT-TSH2R-B model Link
FAQ - the most common questions
What control panels is the INT-TSH2R-B keypad designed for?
The INT-TSH2R-B keypad is compatible with INTEGRA, INTEGRA PLus, VERSA and PERFECTA 64 M control panels, with INTEGRA requiring firmware 1.20 or later, and VERSA requiring firmware 1.10 or later.
Does the INT-TSH2R-B have a built-in proximity card reader?
Yes, the keypad has a built-in 13.56 MHz MIFARE proximity card reader, supported by INTEGRA and INTEGRA PLus control panels.
What types of MIFARE cards are supported by the reader in INT-TSH2R-B?
MIFARE Ultralight (CSN/SSN), Classic (CSN/SSN/MSN) and DESFire EV1, EV2 and EV3 (CSN/MSN) cards are supported.
What is the diagonal and resolution of the manipulator screen?
The screen has a diagonal of 7 inches, is capacitive and glass, and has a resolution of 1024×600 pixels with a display of 16.7 million colors.
Is the INT-TSH2R-B's graphical interface customizable?
Yes, the interface is multi-level and allows you to configure up to 24 user screens, choose from more than 20 graphic themes and create your own composition.
Can the keypad display the clock and system status in screensaver mode?
Yes, the screensaver can present the clock, date, statuses of zones, zones, outputs and temperatures in systems based on INTEGRA, INTEGRA PLus and PERFECTA 64 M control panels.
Does the INT-TSH2R-B support the photo frame function?
Yes, the device can display a slideshow as a photo frame using photos stored on a microSD card.
How many programmable wired inputs does the INT-TSH2R-B have?
The keypad has two programmable hardwired zones, supported in systems with INTEGRA and INTEGRA PLus control panels.
What parametric configurations of the zones are supported?
The zones support EOL, 2EOL and 3EOL configurations, with the 3EOL configuration available for use with the INTEGRA PLus control panel, with programmable resistor values.
What is the power supply voltage of the keypad?
The keypad is powered by 12 V DC ±15%.
What is the current consumption of the INT-TSH2R-B?
The standby current consumption is 350 mA, and the maximum current consumption is 475 mA.
In what temperature range can the INT-TSH2R-B operate?
The temperature range of the keypad is -10°C to +55°C.
What are the dimensions and weight of the keypad's housing?
The dimensions of the housing are 196 × 129 × 22 mm (width × height × thickness), and the weight of the device is 386 g.
What degree of protection does the INT-TSH2R-B have?
The keypad meets the requirements of Grade 3 security level in accordance with EN 50131.
Is the device protected against tampering?
Yes, the INT-TSH2R-B is equipped with a tamper contact that responds to the opening of the housing and detachment from the wall.
What memory cards are supported by the built-in reader?
The built-in reader supports microSD and microSDHC memory cards.
What color versions does the keypad come in?
The keypad is available in white as INT-TSH2R-W and in black as INT-TSH2R-B.
What is the operating frequency of the proximity card reader?
The card reader operates in the 13.553...13.567 MHz band.
What is the reading range of the MC-DF3-2 encrypted card?
The reading range of the MC-DF3-2 encrypted card is up to 40mm.
What environmental class does the device meet?
The keypad belongs to environmental class II according to EN 50130-5.
Summary
INT-TSH2R-B is an advanced touch-screen keypad with MIFARE card reader, designed for cooperation with SATEL INTEGRA, INTEGRA PLus, VERSA and PERFECTA 64 M control panels. The device combines extensive interface configuration capabilities, support for building automation and a high level of Grade 3 security.
