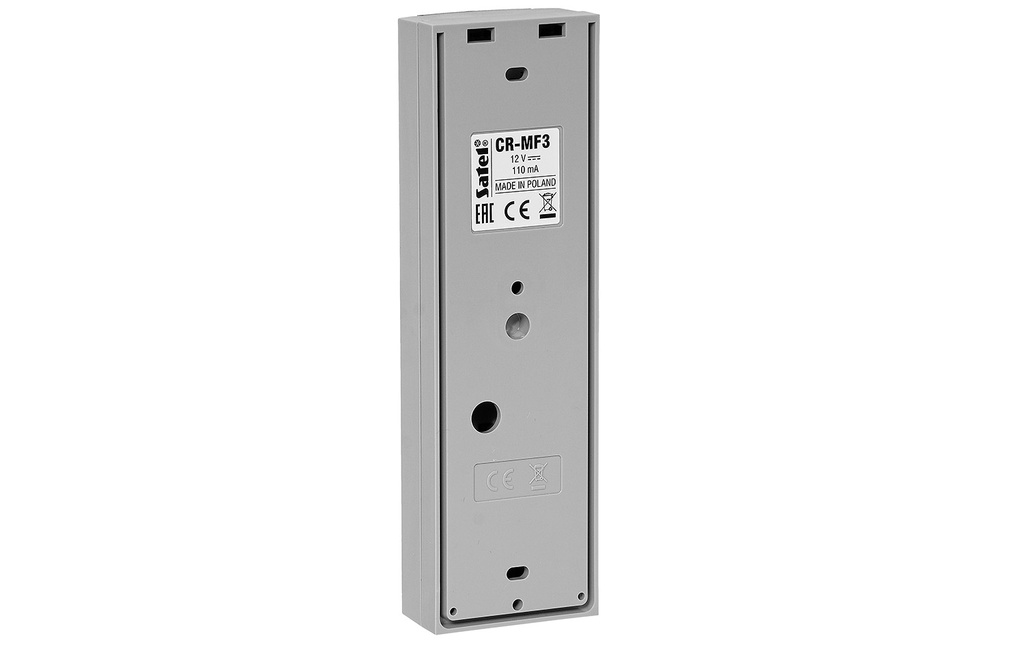

MIFARE access card reader SATEL CR-MF3 OSDP Wiegand 13.56 MHz 12 V DC wall terminal
- MIFARE proximity card reader / access control terminal. Used for passage and access control in INTEGRA, ACCO, ACCO NET systems. Power supply 12 V DC (±15%).
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
CR-MF3 - MIFARE 13.56 MHz proximity card reader
The CR-MF3 reader is a multifunctional access control terminal that supports MIFARE proximity cards. It can work with INTEGRA control panels, ACCO/ACCO NET systems, systems from other manufacturers and operate as a standalone passage control module.
- Built-in 13.56 MHz MIFARE card reader (Ultralight, Classic, DESFire EV1/EV2/EV3)
- Support for OSDP 2.2 protocol (RS-485) and Wiegand interface
- Additional EM-Marin interface for system operation SATEL
- Standalone operation mode with support for up to 128 proximity cards
- Relay output for controlling an electric door strike or magnetic jumper
Applications and modes of operation
The CR-MF3 reader can act as a proximity card reader in the INTEGRA alarm system when connected to the INT-R reader expander, enabling you to, among other things, arm and disarm, clear an alarm and open a passage. In ACCO NET or ACCO access control systems, connected to an ACCO-KP series access control module, it performs the functions of opening and locking and unlocking the passage. In systems from other manufacturers, the device can operate as an OSDP (RS-485) or Wiegand reader, providing flexible integration with existing access control infrastructure.
In standalone mode, the CR-MF3 acts as a standalone passage control module, supporting up to 128 proximity cards. In this variant, it is possible to define the functions of opening, locking and unlocking the passage, as well as to specify the number of uses of a given card. A relay output allows direct control of an electric strike, magnetic jumper or other executive device, while dedicated inputs allow monitoring the door status and connecting an open button.
Design, security and signaling
The CR-MF3 is equipped with a built-in MIFARE proximity card reader, supporting Ultralight (CSN/SSN), Classic (CSN/SSN/MSN) and DESFire (EV1/EV2/EV3, CSN/MSN) cards, with a reading range of up to 45mm for the MC-DF3-2 encrypted card. Three LEDs provide operational status and system events, and a built-in, volume-adjustable sounder provides audible feedback to the user. Optical tamper protection prevents the device from opening the housing and detaching it from the wall, increasing the security level of the installation.
The terminal is designed for both indoor and outdoor installation, with a wide operating temperature range of -25°C to +55°C and a maximum humidity of 93±3%. Programming and configuration of the device can be carried out using dedicated CR Soft software or MC-SRV-8 service card, which facilitates implementation and possible future configuration changes. With standard communication interfaces and compact dimensions, the reader can be easily integrated into various security systems.
Technical specifications
| Parameter | Value |
|---|---|
| Model | CR-MF3 |
| Device type | Proximity card reader / access control terminal |
| Supported card technologies | MIFARE Ultralight (CSN/SSN), MIFARE Classic (CSN/SSN/MSN), MIFARE DESFire EV1/EV2/EV3 (CSN/MSN) |
| Operation frequency of the reader | 13,553...13,567 MHz |
| Reading range of the MC-DF3-2 encrypted card | up to 45 mm |
| OSDP protocol support | OSDP version 2.2 (RS-485 bus) |
| Additional communication interfaces | EM-Marin (INTEGRA, ACCO NET or ACCO system operation), Wiegand |
| Standalone operation mode | Yes, support up to 128 proximity cards |
| Relay output | 1 A / 30 V DC (resistive load) |
| Relay output application | Control of an electric door strike, magnetic jumper or other device activating the passage |
| Inputs | Input monitoring door status, input for opening button |
| Visual signaling | 3 LEDs |
| Acoustic signaling | Built-in sounder with adjustable volume |
| Sabotage protection | Optical protection against opening the case and detaching it from the wall |
| Power supply voltage | 12 V DC (±15%) |
| Standby current consumption | 66 mA |
| Maximum current consumption | 110 mA |
| Operating temperature range | -25°C...+55°C |
| Maximum humidity | 93±3% |
| Dimensions | 47 × 158 × 30 mm |
| Weight | 118 g |
| Possibility of mounting | Indoors or outdoors |
| Programming | CR Soft program or MC-SRV-8 service card |
| Cooperation with systems SATEL | INTEGRA (via INT-R), ACCO NET, ACCO |
| Cooperation with systems of other manufacturers | OSDP (RS-485) and Wiegand interfaces |
Technical data source: datasheet of CR-MF3 model Link
FAQ - Frequently asked questions
1. What systems can the CR-MF3 reader be connected to?
The CR-MF3 reader can work with INTEGRA alarm system (via INT-R expander), ACCO NET and ACCO access control systems, as well as systems from other manufacturers using OSDP (RS-485) or Wiegand interfaces.
2. Can the CR-MF3 operate as a standalone door controller?
Yes, in standalone mode, the CR-MF3 functions as a passage control module, capable of handling up to 128 proximity cards.
3. What types of MIFARE cards are supported by the CR-MF3?
The device supports MIFARE Ultralight (CSN/SSN), MIFARE Classic (CSN/SSN/MSN) and MIFARE DESFire EV1, EV2 and EV3 (CSN/MSN) cards.
4. What is the card reading range of the CR-MF3?
For the MC-DF3-2 encrypted card, the reading range is up to 45mm.
5. What communication interfaces are available on the CR-MF3 reader?
The reader offers support for OSDP protocol version 2.2 on the RS-485 bus, as well as EM-Marin and Wiegand interfaces.
6. Does the CR-MF3 have an output for controlling an electric door strike?
Yes, the device has a relay output with a load capacity of 1 A / 30 V DC, designed to control an electric door strike, magnetic jumper or other passage activation device.
7. What inputs are available on the CR-MF3 terminal?
The terminal has a door status monitoring input and an input for an open button.
8. In what environmental conditions can the CR-MF3 operate?
The device can operate in a temperature range from -25°C to +55°C and at a maximum humidity of 93±3%.
9. Does the reader incorporate tamper protection?
Yes, the CR-MF3 has optical tamper protection against opening of the housing and detachment from the wall.
10. How is the reader's operation status signaling implemented?
Operating status and events are signaled by three LEDs and a built-in sounder with adjustable volume.
11. How can the CR-MF3 reader be programmed?
Programming is done using CR Soft or the MC-SRV-8 service card.
12. Is the CR-MF3 suitable for outdoor mounting?
Yes, the device can be mounted both indoors and outdoors, subject to the specified environmental parameters.
13. What is the current consumption of the CR-MF3?
The standby current consumption is 66 mA, while the maximum current consumption is 110 mA.
14. What are the dimensions of the reader's housing?
The dimensions of the device are 47 × 158 × 30 mm.
15. Can the CR-MF3 be used to control the status of zones in the INTEGRA system?
Yes, in the INTEGRA system the reader allows, among other things, arming and disarming and clearing alarms in a partition after reading an authorized card.
16. Is it possible to lock and unlock a passage with a card in ACCO system?
Yes, in ACCO NET and ACCO CR-MF3 systems it is possible to open a passage and lock and unlock it using a proximity card.
17. Is it possible to limit the number of uses of a given card in standalone mode?
Yes, in standalone mode it is possible to specify the number of uses of a card.
18. What is the weight of the CR-MF3 reader?
The weight of the device is 118 g.
CR-MF3 is a multifunctional MIFARE proximity card reader designed for alarm and access control systems, which can also operate in standalone mode. With support for OSDP, EM-Marin and Wiegand interfaces, as well as a relay output, it provides flexible integration into various security installations.
