- ACTIVA-2 BR active infrared barrier for perimeter protection in intrusion alarm systems, with coded synchronized transmission and a range of up to 20 m (up to 10 m outdoors).
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

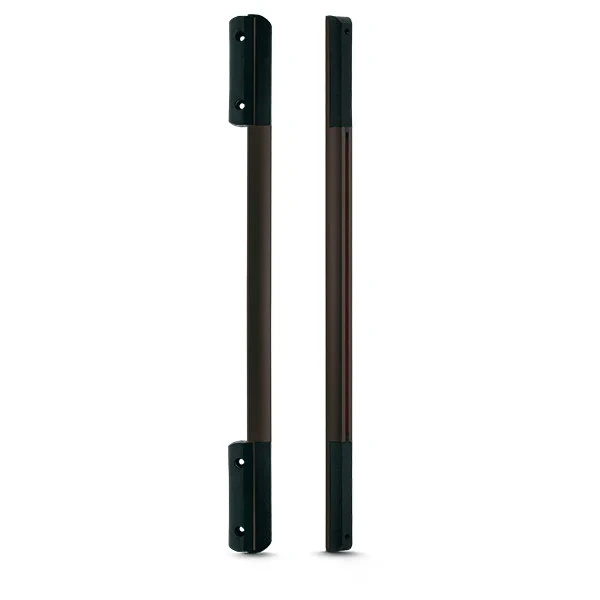

ACTIVA-2 BR - active infrared barrier for perimeter protection
ACTIVA-2 BR is an active infrared barrier designed to implement perimeter protection in intrusion detection systems. The device uses coded synchronized transmission of infrared beams between the transmitter and the receiver, ensuring effective detection of violation of the protected zone.
- Operating range of up to 20 m (up to 10 m outdoors)
- Hermetic design for outdoor operation
- Coded synchronized transmission making it difficult to swap transmitters
- Optical and acoustic signaling for easy installation
- Enclosure protection grade IP44
Application and general characteristics
ACTIVA-2 BR active infrared barriers are an element of perimeter protection, using continuously transmitted infrared beams between the transmitter and receiver to detect violation of the protected zone. Thanks to its aesthetic design and compact trim, the device can be installed both inside and outside the facility. The use of a powerful, high-performance processor and improved electronics and software ensures high immunity to interference and stable operation.
The barrier's design has been adapted to operate in harsh environmental conditions, such as snow, rain and falling leaves, enabling effective perimeter protection all year round. The hermetic housing protects sensitive components from contact with water, and the IP44 rating confirms the device's weather resistance when installed outdoors.
Installation features and mounting
ACTIVA-2 BR allows flexible installation due to the ability to mount the strip perpendicular or parallel to the wall using appropriate brackets. Optical and acoustic signaling makes it easier for the installer to correctly set and align the beams, which reduces commissioning time and minimizes the risk of misconfiguration. The arrangement of the beams in the strip has been specified in detail, which allows for precise pLance of the installation method in relation to the protected area.
With the distances between the beams and their position relative to the ends of the strip specified in the documentation, it is possible to precisely match the barrier to the installation requirements, both in indoor and outdoor applications. The 12 V DC rated supply voltage and low current consumption facilitate integration with typical alarm system control panels.
Technical specifications
| Parameter | Value |
|---|---|
| Maximum operating range | up to 20 m |
| Maximum outdoor range | up to 10 m |
| Emitted infrared wavelength | 950 nm |
| Distance between first and second beam | 245 mm |
| Distance between subsequent beams | 265 mm |
| Distance of the last beam from the upper end of the laminate | 125 mm |
| Distance of the first bundle from the bottom edge of the laminate (with terminal block) | 148 mm |
| Length of the strip | 52 cm |
| Width of the slat | 25 mm |
| Depth of slat | 26 mm |
| Rated supply voltage (±15%) | 12 V DC |
| Standby current consumption | 40 mA |
| Maximum current consumption | 45 mA |
| Operating temperature range | -25...+55 °C |
| Housing protection degree | IP44 |
| Type of signal transmission | coded, synchronized |
Source of technical data:data sheet of ACTIVA-2 BR model Link
FAQ - Frequently asked questions
What is the primary application of the ACTIVA-2 BR barrier?
ACTIVA-2 BR is designed to implement perimeter protection in burglar alarm systems, using infrared beams to detect violation of the protected zone.
Can ACTIVA-2 BR be mounted outside the building?
Yes, the device can operate outdoors, and its airtight design and IP44 rating provide weather resistance.
What is the maximum operating range of the barrier?
The maximum operating range of the barrier is up to 20 m, with an outdoor recommended range of up to 10 m.
What power supply voltage is required for ACTIVA-2 BR?
The barrier requires a rated supply voltage of 12 V DC with a tolerance of ±15%.
What is the current consumption of the barrier?
The standby current consumption is 40 mA, and the maximum current consumption is 45 mA.
In what temperature range can the ACTIVA-2 BR operate?
The operating temperature range is -25 to +55 °C, which allows expLoatation in diverse environmental conditions.
What design features facilitate installation of the barrier?
The device can be mounted perpendicular or parallel to the wall using brackets, and optical and acoustic signaling facilitates the installation process and beam alignment.
Is the signal transmission in the barrier protected?
Yes, ACTIVA-2 BR uses coded synchronized transmission, making it difficult to swap the transmitter.
What kind of interference is the barrier resistant to?
Improved electronics and software provide increased resistance to electrical interference and harsh outdoor conditions such as snow, rain and falling leaves.
What are the dimensions of the barrier strip?
The length of the slat is 52 cm, the width is 25 mm, and the depth is 26 mm.
How are the beams arranged in the ACTIVA-2 BR strip?
The distance between the first and second beams is 245 mm, between subsequent beams is 265 mm, the last beam is 125 mm from the upper end of the laminate, and the first beam is 148 mm from the lower end of the terminal block laminate.
What wavelength does the barrier use?
ACTIVA-2 BR uses infrared radiation with a wavelength of 950 nm.
Does the hermetic housing protect sensitive components from water?
Yes, the hermetic design of the device protects water-sensitive components, which is important especially for outdoor installation.
Is the ACTIVA-2 BR suitable for indoor applications?
Yes, the barrier can be installed both inside and outside the facility, depending on the needs of the perimeter protection system.
Can the appearance of the product differ from that shown in the photos?
Yes, the manufacturer stipulates that the actual appearance of the product may differ from that shown in the illustrative materials, and the descriptions are for informational purposes.
ACTIVA-2 BR is an active infrared barrier designed for perimeter protection in intrusion alarm systems. The device combines airtight design, outdoor resistance and coded synchronized transmission to provide stable performance in a wide range of applications.
