PIR digital motion detector SATEL AQUA S wall prealarm 24 V AC/DC dual pyroelement

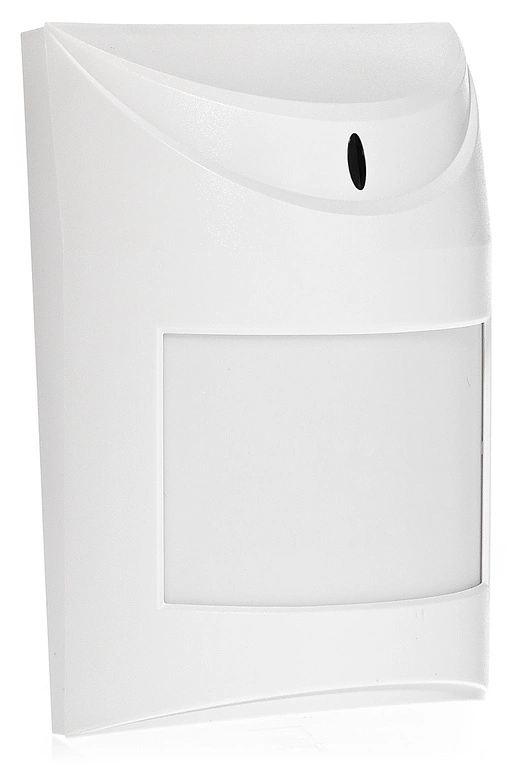

AQUA S digital passive infrared detector with dual pyroelement

AQUA S is a digital passive infrared detector equipped with a double pyroelement, designed for operation in systems powered by 24 V AC/DC. The device uses a digital motion detection algorithm, which improves resistance to interference and false alarms.

• Digital passive infrared detector with dual pyroelement
• Digital motion detection algorithm to reduce false alarms
• Interchangeable Fresnel lens and three-stage sensitivity adjustment
• Pre-alarm function and tamper contact to protect against opening the housing
• AC or DC 24V AC/DC power supply

Application and functions of AQUA S detector

The primary purpose of the AQUA S detector is to detect a violation in the protected area in intrusion detection systems. With the ability to replace the Fresnel lens and three-stage sensitivity adjustment, the detection characteristics can be adapted to the specifics of the room and user requirements. The built-in pre-alarm function allows the system to react in advance to emerging movements, and the tamper contact provides protection against unauthorized opening of the device's housing.

The detector can also be used to perform building automation functions when the alarm system is not activated. In such applications, the signal from the detector can control, for example, the lighting on, as well as the opening or closing of doors, which increases the comfort of the protected facility without the need for additional motion detectors.

Design and operating conditions

The design of the AQUA S detector includes a double pyroelement and a digital signal processing algorithm, which improves the stability of operation and resistance to environmental interference. The 63 x 96 x 48 mm housing provides a compact footprint for unobtrusive use in various types of rooms. The device meets the requirements of environmental class II and is suitable for operation in a wide temperature range of -30 to +55 °C, which allows installation in various climatic conditions.

The detector is designed for systems operating on voltages other than the standard 12 V - it can be powered by 24 V AC/DC, with a rated supply voltage of 24 V AC/DC ±15%. The maximum current consumption is 27 mA or 14 mA (depending on the operation mode indicated in the documentation), and the weight of the device is 93 g. The recommended mounting height is 2.4 m, which allows for a proper detection field according to the characteristics of the Fresnel lens used. The detectable speed of movement is within the range of 0.3 to 3 m/s, which corresponds to typical human movements in the protected area.

Technical data

Technical data source:data sheet of the AQUA S. model Link

FAQ - Frequently Asked Questions

For which systems is the AQUA S detector designed?

AQUA S is designed for intrusion alarm systems operating with 24 V AC/DC voltage.

What type of detector is AQUA S?

It is a digital passive infrared (PIR) detector equipped with a double pyroelement.

What are the main advantages of using digital detection algorithm in AQUA S?

The use of a digital motion detection algorithm improves the detector's immunity to interference and reduces false alarms.

Is it possible to replace the lens in the AQUA S detector?

Yes, the AQUA S detector allows the use of interchangeable Fresnel lenses.

Does the detector have a pre-alarm function?

Yes, the AQUA S is equipped with a built-in pre-alarm function.

Does the detector have tamper protection?

Yes, the device uses a tamper contact to protect against opening the housing.

What is the rated supply voltage of the AQUA S detector?

The rated supply voltage is 24 V AC/DC with a tolerance of ±15%.

What is the maximum current consumption of the detector?

The maximum current consumption is 27 mA or 14 mA, according to the manufacturer's data.

In what temperature range can the AQUA S operate?

The detector can operate in the temperature range from -30 to +55 °C.

What is the recommended mounting height of the detector?

The manufacturer recommends mounting the detector at a height of 2.4 m.

What are the dimensions of the AQUA S detector's housing?

The dimensions of the housing are 63 x 96 x 48 mm.

What is the weight of the detector?

The mass of the device is 93 g.

What speed of motion can the AQUA S detector detect?

The detector detects motion with a speed in the range of 0.3 to 3 m/s.

In what environmental class does the AQUA S operate?

The detector operates in environmental class II.

Can the detector control lights or doors?

Yes, when the alarm system is not switched on, the detector can be used to control, for example, the lighting on or the opening and closing of doors.

Is the detector designed for 12-volt systems?

No, AQUA S is designed for installation in systems operating on 24 V AC/DC, other than the standard 12 V.

Is it possible to adjust the detection sensitivity of the AQUA S?

Yes, a three-stage sensitivity adjustment is available in the detector, which allows you to match its operation to the protected object.

What type of objects is the AQUA S detector suitable for?

Its operating parameters and environmental class II allow it to be used in typical protected objects, in accordance with the requirements of intrusion detection systems.

AQUA S is a digital passive infrared detector with a double pyroelement, suitable for operation in systems powered by 24 V AC/DC. The device offers a prealarm function, tamper protection and the ability to use interchangeable Fresnel lenses and sensitivity adjustment.
