TOPAZ - miniature PIR motion detector with built-in parametric resistors

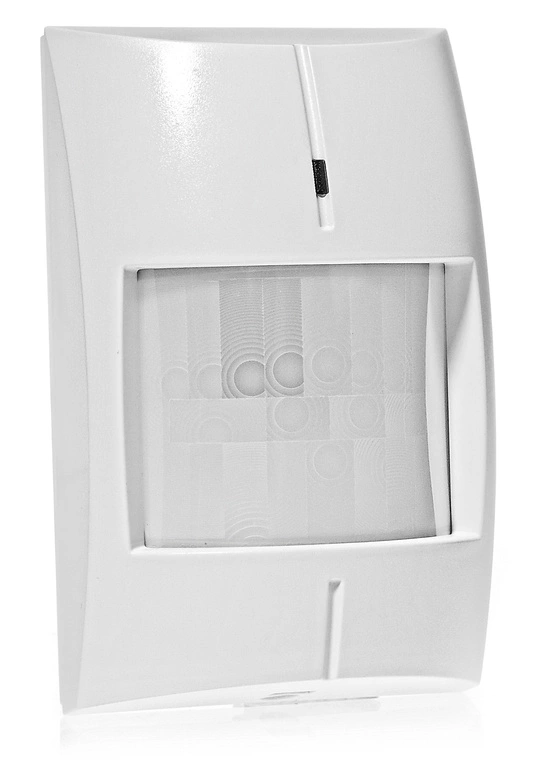

TOPAZ is a wired miniature PIR motion detector from SATEL designed for burglary and assault signaling. The device uses a new generation microprocessor and a digital detection algorithm, offering advanced performance in a small, aesthetic housing.
- Miniature PIR motion detector for burglary and assault signaling systems
- Next-generation digital detection algorithm
- Temperature compensation of the protected room
- Built-in parametric resistors for easy installation
- Small and aesthetically pleasing housing that blends in with most interiors
Characteristics and intended use
The miniature motion detector TOPAZ has been designed as a component of wired intrusion detection systems, where good detection parameters are required while maintaining a discreet appearance. Thanks to its small housing dimensions and attractive design, the detector minimally interferes with the decor of the protected premises, which is important in residential and office buildings.
The new generation microprocessor and digital detection algorithm used in the device allow to achieve performance parameters typical of much larger detectors. TOPAZ provides motion detection in the typical range of human movement speed, with stable operation in a wide range of ambient temperatures.
Features for easy installation and expLoatation
The TOPAZ detector is equipped with built-in parametric resistors, which simplifies and speeds up the process of connecting to the control panel. The recommended installation height of 2.1 m facilitates standard placement of the device on room walls. The permissible load of the relay's contacts was selected to work with typical inputs of control panels.
The device is characterized by low standby current consumption and short alarm signaling time. The use of temperature compensation of the protected room and operation in environmental class II according to EN50130-5 allow stable operation of the detector in rooms with different environmental conditions.
Technical data
| Parameter | Value |
|---|---|
| Detector type | wired PIR motion detector |
| Power supply voltage (±15%) | 12 V DC |
| Detectable motion speed | 0.3...3 m/s |
| Operating temperature range | -10...+55 °C |
| Recommended installation height | 2,1 m |
| Standby current consumption | 8 mA |
| Maximum current consumption | 8.5 mA |
| Weight | 45 g |
| Permissible relay contact load (resistive) | 40 mA / 16 V DC |
| Maximum humidity | 93±3% |
| Dimensions | 52 × 81 × 33 mm |
| Environmental class as per EN50130-5 | II |
| Alarm signaling time | 2 s |
| Parametric resistors | 2 × 1.1 kΩ |
| Start-up time | 120 s |
Source of technical data:data sheet of TOPAZ model Link
FAQ - Frequently asked questions
1. For what application is the TOPAZ detector designed?
The TOPAZ detector is designed for use in wired intrusion alarm systems as a PIR motion detector mounted indoors.
2. What is the type of detection in TOPAZ detector?
TOPAZ is a PIR motion detector equipped with a new generation digital detection algorithm.
3. What power supply voltage is required for the TOPAZ detector?
The detector requires a power supply of 12 V DC with a tolerance of ±15%.
4. What is the detectable speed of motion?
The detectable speed of movement is from 0.3 to 3 m/s.
5. In what temperature range can the TOPAZ detector operate?
The operating temperature range of the detector is -10 to +55 °C.
6. At what height should the detector be mounted?
The recommended mounting height of the TOPAZ detector is 2.1 m.
7. What is the standby current consumption of the detector?
The standby current consumption is 8 mA.
8. What is the maximum current consumption of the detector?
The maximum current consumption of the TOPAZ detector is 8.5 mA.
9. What is the permissible load of the relay contacts?
The permissible load of relay contacts with resistive load is 40 mA at 16 V DC.
10. What are the dimensions of the TOPAZ detector?
The dimensions of the detector are 52 × 81 × 33 mm.
11. What is the maximum operating humidity of the device?
The maximum humidity is 93±3%.
12. What environmental class according to EN50130-5 does the detector belong to?
The TOPAZ detector belongs to environmental class II according to EN50130-5.
13. What is the alarm signaling time?
The alarm signaling time is 2 seconds.
14. How long does it take for the detector to start up after power up?
The start-up time of the TOPAZ detector is 120 seconds.
15. Does the detector have built-in parametric resistors?
Yes, the TOPAZ detector has built-in parametric resistors of 2 × 1.1 kΩ.
16. What are the features of the detector's housing?
The detector's housing is small and aesthetically pleasing, designed to blend in with most interiors.
17. Does the detector compensate for temperature effects on detection?
Yes, TOPAZ uses temperature compensation of the protected room to ensure stable detection.
18. Can TOPAZ be used where low current consumption is required?
Yes, with a standby current consumption of 8 mA, the detector is suitable for systems where low power consumption is important.
TOPAZ is a miniature wired PIR motion detector with microprocessor-based detection circuitry and temperature compensation, designed for indoor burglary and robbery alarm systems. The device is characterized by low power consumption, short alarm signaling time and a small, aesthetic casing suitable for modern interiors.
