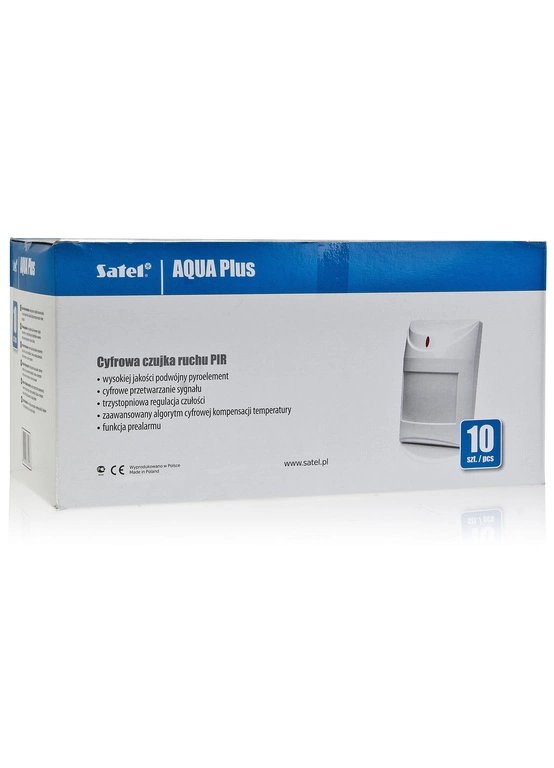

AQUA PLus digital passive infrared PIR detector
AQUA PLus is a digital passive infrared detector equipped with a dual pyroelement and digital detection algorithm, designed for wired intrusion alarm systems. The device meets the requirements of Grade 2 security according to EN50131-2-6.
- Digital passive infrared detector with dual pyroelement
- Dual signal analysis of the pyroelement (value and quantity)
- Temperature compensation function for increased noise immunity
- Built-in parametric resistors for easy connection to an alarm system
- Meeting Grade 2 requirements in accordance with EN50131
Characteristics and applications of the AQUA PLus detector
AQUA PLus is a digital passive infrared (PIR) detector equipped with a dual pyroelement, using a digital detection algorithm and dual signal analysis (value and quantity). Such a solution ensures high sensitivity of motion detection and increased resistance to interference in typical operating conditions of intrusion detection systems. The detector is designed to be mounted at the recommended height of 2.4 meters and to work with wired control panels.
The device has an interchangeable Fresnel lens, which allows to adjust the detection characteristics to the requirements of a specific protected area. A built-in tamper contact provides protection against opening the housing, and an electronics board equipped with parametric resistors facilitates installation and integration into the system. The detector is classified in Environmental Class II according to EN50130-5 and meets a number of standards from the EN50131 and EN50130 family.
Design and installation features
The design of the AQUA PLus detector includes the use of interchangeable Fresnel lenses, which allows the field of view to be optimally adjusted to the room conditions. Sensitivity adjustment allows the installer to precisely match the operating parameters to the specifics of the object, minimizing the risk of unwanted alarms. Built-in parametric resistors located on the electronics board streamline the process of connecting the detector to the supervisory line of the burglar alarm system.
The device is powered by 12 V DC (±15%) and is characterized by low current consumption both in standby and at maximum load. The permissible load of the relay contacts under resistive load is 40 mA at 16 V DC, which should be taken into account in the design and integration of the detector with other system components. The detector operates in a wide range of ambient temperatures, which allows it to be used in diverse environmental conditions, in accordance with the requirements of environmental class II.
Technical data of AQUA PLus
| Parameter | Value |
|---|---|
| Device type | Digital passive infrared (PIR) detector with dual pyroelement |
| Detection algorithm | Digital, with dual signal analysis (value and quantity) |
| Lens | Replaceable Fresnel lens |
| Power supply voltage | 12 V DC (±15%) |
| Detectable movement speed | 0.3...3 m/s |
| Housing dimensions | 63 × 96 × 49 mm |
| Operating temperature range | -30...+55 °C |
| Recommended installation height | 2,4 m |
| Standby current consumption | 10 mA |
| Maximum current consumption | 12 mA |
| Weight | 90 g |
| Permissible relay contact load (resistive) | 40 mA / 16 V DC |
| Tamper contact | Yes, protecting against opening the housing |
| Environmental class in accordance with EN50130-5 | II |
| Alarm signaling time | 2 s |
| Standards met by the device | EN50130-5, EN50131-1, EN50131-2-2, EN50130-4 |
| Grade of protection according to EN50131-2-6 | Grade 2 |
Technical data source:data sheet of AQUA model PLus Link
FAQ - the most common questions about AQUA PLus
1. What type of detector is AQUA PLus?
AQUA PLus is a digital passive infrared (PIR) detector equipped with a dual pyroelement.
2. What power supply voltage is required for AQUA PLus?
The detector requires a power supply of 12 V DC with a tolerance of ±15%.
3. What is the recommended mounting height of the AQUA PLus detector?
The recommended mounting height of the device is 2.4 m.
4. In what temperature range can AQUA PLus operate?
The operating temperature range of the detector is -30 °C to +55 °C.
5. What is the detectable speed of motion for this detector?
The detectable speed of movement is in the range of 0.3...3 m/s.
6. Does the detector have a temperature compensation function?
Yes, the detector uses a temperature compensation function, which increases its immunity to interference.
7. Does the detector use interchangeable lenses?
Yes, AQUA PLus has the ability to replace the Fresnel lens used.
8. Does the device have built-in parametric resistors?
Yes, the detector's electronics board is equipped with built-in parametric resistors.
9. Is the detector protected against opening the housing?
Yes, the detector has a built-in tamper contact to protect against opening the housing.
10. What is the standby and maximum current consumption?
The standby current consumption is 10 mA, and the maximum current consumption is 12 mA.
11. What is the permissible load of the relay contacts?
The permissible load on the relay contacts with a resistive load is 40 mA at 16 V DC.
12. What environmental class is the AQUA PLus detector classified in?
The detector is classified as environmental class II according to EN50130-5.
13. What is the alarm signaling time?
The alarm signaling time is 2 seconds.
14. What degree of protection according to EN50131 does the device meet?
The device meets the requirements of Grade 2 protection according to EN50131-2-6.
15. What standards does the AQUA PLus detector meet?
The detector complies with EN50130-5, EN50131-1, EN50131-2-2 and EN50130-4.
16. What are the dimensions of the detector's housing?
The dimensions of the housing are 63 × 96 × 49 mm.
17. What is the weight of the device?
The weight of the detector is 90 g.
18. Is the detector suitable for intrusion alarm systems?
Yes, AQUA PLus is designed for use in intrusion alarm systems, meeting the requirements of Grade 2.
AQUA PLus is a digital passive infrared PIR detector with dual pyroelement and digital detection algorithm, meeting the requirements of EN50131 and EN50130. The device offers a wide range of environmental and electrical parameters and design solutions for easy installation and integration into the alarm system.
