AOD-210 GY wireless outdoor/indoor PIR+MW ABAX 2 motion detector
AOD-210 GY is a wireless dual (PIR + MW) motion detector designed for use in ABAX 2/ABAX systems, for outdoor and indoor applications. The device meets the requirements of EN 50131 Grade 2 (for indoor applications) and features high immunity to false alarms.
- Two detection paths: PIR (dual pyroelement) and microwave
- Maximum detection area 16 m x 16 m, 90° angle
- Radio communication range in ABAX 2 up to 2000 m (ACU-220) / 1600 m (ACU-280)
- Degree of protection IP54 and operation in temperature range -40°C...+55°C
- Powered by a CR123A 3 V battery with an expected life of up to 2 years
Purpose and functions of detection
The AOD-210 GY detector is designed to operate in a two-way wireless ABAX 2/ABAX system, both outdoors and indoors in harsh environments such as halls. The use of two detection paths (PIR with dual pyroelement and microwave) combined with advanced digital signal processing and dynamic temperature compensation ensures effective motion detection and high resistance to false alarms.

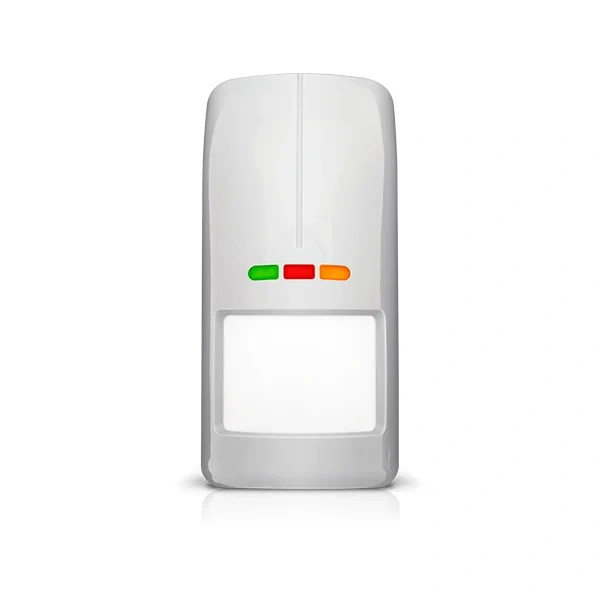

The device also enables approach zone control and realizes a pet (Pet) immunity function of up to 20 kg, which helps reduce unwanted alarms in pet-occupied facilities. Three LED indicators indicate violations in test mode, facilitating the detector's commissioning and adjustment process.
System integration and wireless communication
The AOD-210 GY is compatible with ABAX 2 system controllers (ACU-220 and ACU-280) and ARU-200 retransmitter, as well as with ABAX system controllers (ACU-120, ACU-270, ACU-250 and ACU-100 version at least 4.04), INTEGRA 128-WRL control panel and ARU-100 retransmitter - the required software version of a given device is specified in its description. In the ABAX 2 system, radio communication is encrypted in the AES standard, which increases transmission security.
The range of radio communication in the open field is up to 2000 m for ACU-220 and up to 1600 m for ACU-280 in ABAX 2 system, while in ABAX system it is up to 500 m for ACU-120 and ACU-270 controllers. The detector is characterized by low power consumption, has a battery check and an "ECO" option (in ABAX 2 system) to extend battery life.
Mechanical design and installation
The detector's housing is made of polycarbonate, has an IP54 rating and is resistant to changing weather conditions and splashing water, allowing it to be used outdoors. The detector is equipped with tamper protection against opening the housing and detachment from the ground, and complies with EN50131-1, EN50130-4 and EN50130-5 standards at environmental class IIIa.
The design of the AOD-210 GY allows it to be mounted directly on a flat surface or with dedicated brackets from the BRACKET C and BRACKET E kits, including an angle bracket (fixed angle of 45°) and a ball bracket (range up to 60° vertically and up to 90° horizontally). In addition, the BRACKET E modular bracket can be used in various element configurations (BRACKET E-1 GY, E-2B GY, E-3 GY, E-4 GY, E-5 GY) and the BRACKET E-6 tamper sensor, as well as the optional HOOD C or HOOD C GY housing-mounted protective canopy.
Additional sensors and automation
The AOD-210 GY has a built-in temperature sensor with a measurement range of -40°C to +55°C and an accuracy of ±1°C, as well as a built-in twilight sensor with sensitivity adjustment. This makes it suitable for use in home automation alarm systems, enabling temperature- and light-dependent functions without the need for additional devices. The operating frequency range of the detector is 868.0 ÷ 868.6 MHz, and the microwave frequency is 24.125 GHz.
The detector monitors the motion detection system and signals any irregularities in its operation. Configuration of the device's parameters and software update are done remotely, which facilitates service and adjustment of the detector's operation to the operating conditions.
Technical data
| Parameter | Value |
|---|---|
| Model | AOD-210 GY |
| Detector type | Wireless motion detector, dual PIR (double pyroelement) + MW |
| Maximum detection area | 16 m x 16 m, 90° angle |
| Detectable motion speed | 0.3...3 m/s |
| Grade of protection according to EN50131-2-4 | Grade 2 |
| Standards met | EN50131-1, EN50130-4, EN50130-5 |
| Environmental class according to EN50130-5 | IIIa |
| IP degree of protection | IP54 |
| Operating / measuring temperature range | -40°C...+55°C |
| Accuracy of temperature measurement | ±1°C |
| Built-in twilight sensor | Yes, with sensitivity adjustment |
| Radio operating frequency band | 868.0 ÷ 868.6 MHz |
| Microwave frequency | 24.125 GHz |
| Range of radio communication (open area) - ACU-220 (ABAX 2) | up to 2000 m |
| Radio communication range (open area) - ACU-280 (ABAX 2) | up to 1600 m |
| Radio communication range (open area) - ACU-120 (ABAX) | up to 500 m |
| Radio communication range (open area) - ACU-270 (ABAX) | up to 500 m |
| Expected battery life | up to 2 years |
| Power supply | CR123A 3 V battery |
| Standby current consumption | 75 µA |
| Maximum current consumption | 30 mA |
| Start-up time | 40 s |
| Maximum humidity | 93 ± 3% |
| Recommended installation height | 2,4 m |
| Dimensions | 65 x 138 x 58 mm |
| Weight | 182 g |
| Resistance to animal movement | Yes, up to 20 kg |
| Housing | Polycarbonate, splash-proof, resistant to changing weather conditions |
| Tamper protection | Against opening the housing and detachment from the ground |
| LED indicators | 3 LED indicators indicating violations in test mode |
| Mounting options - directly | On a flat surface |
| Mounting options - BRACKET C | Angle bracket (fixed angle 45°), ball bracket (up to 60° vertically, up to 90° horizontally) |
| Mounting options - BRACKET E | BRACKET E-1 (GY) - body, BRACKET E-2B (GY) - insert, BRACKET E-3 (GY) - 30 mm distance, BRACKET E-4 (GY) - 20 mm base, BRACKET E-5 (GY) - ball mount |
| Additional accessories | HOOD C or HOOD C GY protective canopy, BRACKET E-6 tamper sensor (1 NO/NC switch, wire length 50 cm) |
| Additional functions | Dynamic temperature compensation, independent adjustment of sensitivity of PIR/MW tracks and twilight sensor, "ECO" option (ABAX 2), supervision of motion detection system |
| Cooperating systems | ABAX 2 (ACU-220, ACU-280, ARU-200), ABAX (ACU-120, ACU-270, ACU-250, ACU-100 min. 4.04, ARU-100), INTEGRA 128-WRL |
| Transmission encryption (ABAX 2) | AES |
Technical data source:data sheet of AOD-210 GY model Link
FAQ - frequently asked questions
1. For which alarm system is the AOD-210 GY detector designed?
The AOD-210 GY detector is designed for two-way wireless ABAX 2 and ABAX systems and works with, among others, ACU-220, ACU-280, ACU-120, ACU-270, ACU-250, ACU-100 (from version 4.04) controllers, INTEGRA 128-WRL control panel and ARU-200 and ARU-100 retransmitters.
2. Can the AOD-210 GY operate outside the building?
Yes, the detector has a splash-proof polycarbonate housing with IP54 protection and environmental class IIIa, so it is suitable for outdoor operation in variable weather conditions.
3. What is the maximum detection area of the detector?
The maximum detection area of the AOD-210 GY detector is 16m x 16m at an angle of 90°.
4. Is the detector immune to pet movement?
Yes, the AOD-210 GY has the function of resistance to pet (Pet) movement of up to 20 kg.
5. What are the wireless communication capabilities in the ABAX 2 system?
In the ABAX 2 system, the range of radio communication in the open field is up to 2000m when working with ACU-220 and up to 1600m when working with ACU-280, with AES transmission encryption.
6. What is the communication range in the ABAX system?
In the ABAX system, the range of radio communication in the open field is up to 500m for ACU-120 and ACU-270 controllers.
7. What is the power supply of the AOD-210 GY detector?
The detector is powered by a CR123A 3V lithium battery.
8. How long does the battery last under typical operating conditions?
The expected battery life of the detector is up to 2 years, using energy-saving features and typical expLoatation.
9. Does the detector have a built-in temperature sensor?
Yes, the AOD-210 GY has a built-in temperature sensor with a measurement range of -40°C to +55°C and an accuracy of ±1°C.
10. Does the detector have a built-in twilight sensor?
Yes, the device is equipped with a twilight sensor with adjustable sensitivity, which allows it to be used in home automation functions that depend on light intensity.
11. What are the dimensions and weight of the detector?
The detector's dimensions are 65 x 138 x 58 mm, and its weight is 182 g.
12. What tamper protection does the AOD-210 GY have?
The detector is tamper protected against opening the housing and against detachment from the ground.
13. What is the recommended way to mount the detector?
The detector can be mounted directly on a flat surface or using dedicated brackets from the BRACKET C and BRACKET E kits, which allow tilt and position adjustment.
14. What is the recommended mounting height?
The recommended mounting height of the AOD-210 GY detector is 2.4 meters.
15. Does the detector have LED indication of violations?
Yes, the device has three LED indicators that indicate violations in test mode for easy adjustment and commissioning.
16. Is it possible to remotely configure and update the detector's software?
Yes, configuration of operating parameters and updating of AOD-210 GY software are done remotely through the system.
17. What additional accessories are available for the detector?
Accessories available for the detector include HOOD C and HOOD C GY protective canopies, BRACKET C and BRACKET E brackets, and BRACKET E-6 tamper sensor.
18. In what frequency band does the detector's radio module operate?
The detector's radio module operates in the 868.0 ÷ 868.6 MHz band.
19. How long does it take for the detector to start up after power up?
The start-up time of the AOD-210 GY detector is 40 seconds.
20. What is the maximum operating humidity of the device?
The maximum permissible operating humidity of the detector is 93 ± 3%.
Summary
The AOD-210 GY is an advanced wireless PIR+MW motion detector with high resistance to false alarms, designed for use in ABAX 2/ABAX systems both indoors and outdoors. The device offers a wide range of features, including immunity to animal movement, remote configuration, extensive mounting options and built-in temperature and dusk sensors.
