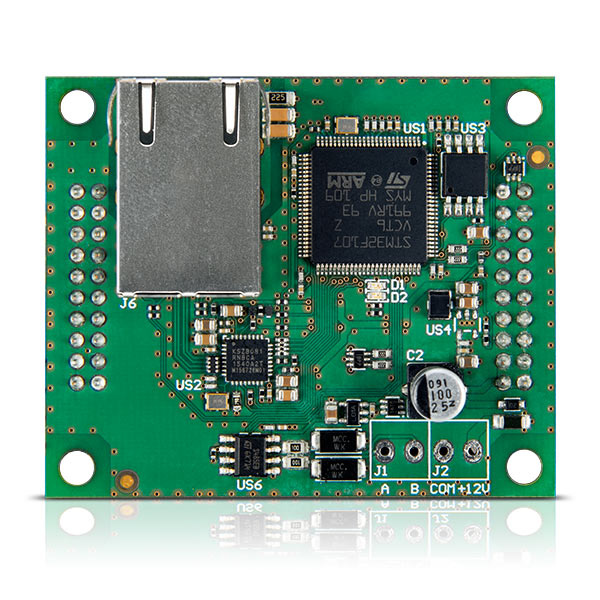

Ethernet communication module SATEL GSM-X-ETH expansion board for GSM-X LTE and GSM-X 61x51 mm
- GSM-X-ETH communication module for GSM-X LTE and GSM-X. Allows data transmission via Ethernet in parallel or alternatively to the cellular network. Board dimensions: 61 × 51 mm.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
GSM-X-ETH - a module to extend the communication of GSM-X LTE and GSM-X modules with an Ethernet track
GSM-X-ETH is a device designed to extend the communication options of GSM-X LTE and GSM-X universal modules with an Ethernet path. The use of the Ethernet channel can be done in parallel with or as an alternative to cellular data transmission.
- Dedicated to work with GSM-X LTE and GSM-X modules
- Supports an additional communication channel - Ethernet
- Possibility of parallel use of Ethernet and cellular network
- Configuration of priorities of use of individual transmission paths
- Compact dimensions of the electronics board: 61 × 51 mm
General description
The GSM-X-ETH module is designed as a communication extension for the universal GSM-X LTE and GSM-X modules, allowing them to use the data transmission path via Ethernet. This solution allows you to adapt the way of communication to the infrastructure and requirements of a specific intrusion alarm system.
The Ethernet channel can work in parallel with cellular communication or act as an alternative transmission path. This allows the system designer and installer to configure communication redundancy or optimize the cost and reliability of data transmission.
Functionality and application
GSM-X-ETH allows full integration with GSM-X LTE and GSM-X modules, thus extending their Ethernet-based notification and communication capabilities. Adjustable priorities of the use of individual tracks for specific functions make it possible to specify precisely which communication channel is to be used first and which is to be a backup.
Due to the compact dimensions of the board, as well as the wide operating temperature range and the corresponding environmental class according to EN50130-5, the module can be used in a variety of installation conditions typical of alarm systems. The current consumption parameters and permissible humidity allow it to be integrated into existing power supply infrastructure and system equipment enclosures.
Technical data
| Parameter | Value |
|---|---|
| Purpose | Expansion of the communication options of GSM-X LTE and GSM-X modules with an Ethernet track |
| Cooperation | GSM-X LTE, GSM-X |
| Additional communication channel | Ethernet network |
| Electronics board dimensions | 61 × 51 mm |
| Operating temperature range | -10...+55°C |
| Standby current consumption | 25 mA |
| Maximum current consumption | 25 mA |
| Weight | 25 g |
| Maximum humidity | 93 ± 3% |
| Environmental class as per EN 50130-5 | II |
Technical data source:data sheet of the GSM-X-ETH model Link
FAQ - frequently asked questions
1. What is the GSM-X-ETH module used for?
GSM-X-ETH is used to extend the communication options of GSM-X LTE and GSM-X modules with an additional data transmission path via Ethernet.
2. What devices does the GSM-X-ETH work with?
The module works with GSM-X LTE and GSM-X universal modules.
3. Does the module support Ethernet as the only communication channel?
Yes, the Ethernet channel can be an alternative to data transmission over the cellular network.
4. Can Ethernet be used in parallel with the cellular network?
Yes, use of the Ethernet channel can be done in parallel with data transmission over the cellular network.
5. Is it possible to set the priority of communication channels in GSM-X-ETH?
Yes, priority configuration of the use of individual transmission paths for specific functions is available.
6. What are the dimensions of the GSM-X-ETH electronics board?
The dimensions of the electronics board are 61 × 51 mm.
7. In what temperature range can the GSM-X-ETH module operate?
The operating temperature range of the module is from -10 to +55°C.
8. What is the standby current consumption?
The standby current consumption is 25 mA.
9. What is the maximum current consumption of the module?
The maximum current consumption of the GSM-X-ETH module is 25 mA.
10. What is the mass of the GSM-X-ETH module?
The mass of the module is 25 g.
11. What is the maximum humidity allowed by the manufacturer?
The maximum operating humidity of the module is 93 ± 3%.
12. What environmental class according to EN 50130-5 does the module have?
GSM-X-ETH has an environmental class II according to EN 50130-5.
13. Can the actual appearance of the module differ from the illustration materials?
Yes, the actual appearance of the products may differ from the products shown in the pictures.
14. Are the product descriptions a binding specification?
No, the product descriptions posted on the website are for informational purposes only.
15. Can GSM-X-ETH be used in burglar alarm systems?
Yes, the parameters of the module allow it to be used in burglary and robbery alarm systems, according to its communication purpose.
16. Does the module require cooperation with a specific type of Ethernet network?
The data sheet only states that the module supports an additional communication channel in the form of an Ethernet network, without specifying the type of network.
17. Does the datasheet provide information on function configuration?
Yes, it is indicated that priority configuration of the use of individual tracks for specific functions is available.
18. Are specifications subject to change?
Yes, due to the informative nature of the description, the manufacturer may make changes to the specifications without notice.
GSM-X-ETH is dedicated to extend the communication of GSM-X LTE and GSM-X modules with an Ethernet track, enabling parallel or alternative operation to the cellular network. The environmental and electrical parameters of the module are specified in the data sheet, facilitating its proper application in alarm systems.
