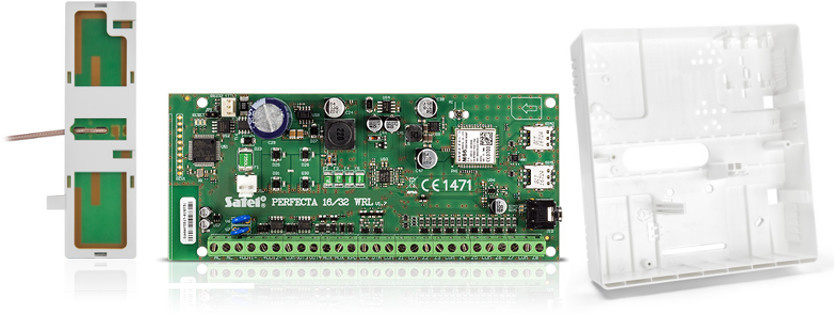

Wired control panel SATEL PERFECTA 16 main board GSM GPRS , Grade 2, +antenna, + Housing - Polish Language
- Main board of wired control panel for small and medium-sized objects, with built-in GSM/GPRS module (2 SIM cards) and support of 2 zones with 3 surveillance modes for each zone.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
PERFECTA 16 alarm control panel main board SATEL
The PERFECTA 16 control panel is the main board of an alarm system designed for the protection of small and medium-sized objects, such as apartments, single-family houses, offices and small businesses. The device meets the Grade 2 security requirements of EN 50131 and offers extensive communication and control capabilities.
- EN 50131 Grade 2 compliance
- Support for 8 to 16 wired programmable inputs
- Support for 4 to 12 wired programmable outputs
- Built-in GSM/GPRS module with support for two SIM cards
- System division into 2 zones with 3 surveillance modes in each zone
Purpose and capabilities of the system
The control panels of the PERFECTA series, including the PERFECTA 16 model, are designed for the protection of small and medium-sized objects, such as apartments, single-family houses, terraced segments, offices and small businesses. The system based on the PERFECTA 16 control panel is characterized by quick installation, simple configuration and easy and intuitive operation.
The control panel allows the facility to be divided into 2 zones with three armed modes (day, night, full), where each zone can be assigned to one or both zones. With the ability to expand with INT-E input expanders and INT-O or INT-ORS outputs, you can increase the number of supported detectors, sirens and actuators, such as for controlling garage doors, roller shutters or garden sprinklers.
Communication, control and configuration
PERFECTA 16 has a built-in GSM/GPRS module with two slots for nano-SIM cards, which allows monitoring of events to the monitoring station, SMS and voice messaging, cooperation with apLikacja mobilna PERFECTA CONTROL (including support for PUSH notifications), remote configuration using the PERFECTA Soft program and acoustic alarm verification (listening to sounds from the object).
The system can be controlled via PRF-LCD keypads (up to 4), apLikation of PERFECTA CONTROL and - after attaching the INT-RX-S module - remote controls operating in the 433 MHz band (up to 15 remote controls, with PERFECTA 16 firmware version v1.02 or later). Configuration of the control panel is possible locally from the keypad or a computer with PERFECTA Soft software connected to the RS-232 (TTL) port, as well as remotely via GPRS.
System functions and power supply
The control panel offers 15 user passwords and 1 service password, and allows editing of user names, zones, zones, outputs and modules for easy operation and supervision. There are 8 timers with the possibility of defining exceptions, event memory for 3584 entries and automatic diagnostics of basic system components. The system allows you to define up to 8 telephone numbers for notification and up to 16 voice messages.
PERFECTA 16 is equipped with a built-in switching power supply with an output current of 2 A, with overload protection and protection against complete battery discharge, as well as adjustable charging current. There are 2 power outputs on the main board, an AUX 500 mA / 12 V DC output and a KPD 500 mA / 12 V DC output. The control panel provides operation in environmental class II according to EN 50130-5 and in a wide temperature range.
Technical data
| Parameter | Value |
|---|---|
| Grade of protection according to EN 50131 | Grade 2 |
| Environmental class in accordance with EN 50130-5 | II |
| Number of zones | 2 |
| Number of surveillance modes in each zone | 3 (day, night, full) |
| Programmable wired inputs (on board) | 8 |
| Maximum number of programmable inputs | 16 |
| Wired programmable outputs (on board) | 4 |
| Maximum number of programmable outputs | 12 |
| Power outputs on the main board | 2 |
| Input configuration | NO, NC, EOL, 2EOL/NO, 2EOL/NC |
| Support for roller shutter and vibration detectors | Yes |
| Built-in GSM/GPRS module | Yes, 2 SIM slots (SMS, monitoring, apLication mobile, PUSH notifications) |
| Built-in voice module | Yes (playback of voice messages for telephone notification) |
| Acoustic alarm verification | Yes (listening for sounds) |
| Communication buses | 1 (for PRF-LCD keypads, INT-E, INT-O, INT-ORS, INT-RX-S modules) |
| Maximum number of keypads | up to 4 |
| Support for 433 MHz keyfobs | up to 15 (requires INT-RX-S module, firmware v1.02 or later) |
| Upgradable software (firmware) | Yes |
| Number of user passwords | 15 |
| Service password | 1 |
| Edit names of users, zones, inputs, outputs, modules | Yes |
| Number of timers | 8 (with possibility to set exceptions) |
| Memory of events | 3584 events |
| Telephone numbers for notification | 8 |
| Number of voice messages | 16 |
| AUX output | 500 mA / 12 V DC |
| KPD output | 500 mA / 12 V DC |
| High-current programmable outputs | 1000 mA / 12 V DC |
| Programmable low-current outputs | 25 mA / 12 V DC |
| Output current of the power supply | 2 A |
| Battery charging current | 500 mA |
| Maximum current consumption | 180 mA |
| Standby current consumption | 150 mA |
| Maximum current consumption from battery | 160 mA |
| Standby current consumption from battery | 100 mA |
| Power supply voltage (±15%) | 18 V AC, 50-60 Hz |
| Power supply output voltage | 12 V DC ±15% |
| Output voltage range | 10.5 V...14 V DC |
| Battery cut-off voltage (±10%) | 10,5 V |
| Battery fault report voltage (±10%) | 11 V |
| Recommended transformer | 40 VA |
| Operating temperature range | -10...+55 °C |
| Maximum humidity | 93±3% |
| Electronics board dimensions | 160 x 68 mm |
| Weight | 105 g |
Technical data source:data sheet of PERFECTA 16 SET-A model Link
FAQ - Frequently asked questions
1. For which objects is the PERFECTA 16 control panel intended?
The PERFECTA 16 control panel is designed for the protection of small and medium-sized objects, such as apartments, single-family houses, terraced segments, offices and small businesses.
2. How many zones does PERFECTA 16 support?
PERFECTA 16 supports 2 zones with three surveillance modes in each (day, night, full).
3. How many wired inputs and outputs does the main board have?
The main board of the control panel has 8 programmable wired inputs and 4 programmable wired outputs.
4. What is the maximum number of inputs and outputs after expansion?
After using expanders, the control panel can support up to 16 programmable inputs and up to 12 programmable outputs.
5. Does the control panel have a built-in GSM/GPRS module?
Yes, the control panel has a built-in GSM/GPRS module with two SIM card slots.
6. Is remote configuration of the control panel possible?
Yes, configuration can be carried out remotely using the PERFECTA Soft program via GPRS.
7. What methods can the system be controlled?
The system can be controlled using the PRF-LCD keypads, apLikation of the PERFECTA CONTROL mobile and 433 MHz keyfobs (after using the INT-RX-S module).
8. How many user passwords does PERFECTA 16 support?
The control panel supports 15 user passwords and 1 service password.
9. Does PERFECTA 16 support voice messaging?
Yes, thanks to the built-in voice module, it is possible to play voice messages for telephone notification.
10. Is acoustic alarm verification possible?
Yes, the control panel allows listening to sounds from the protected object for acoustic alarm verification.
11. How many telephone numbers for notification can be programmed?
Up to 8 telephone numbers for notification can be programmed.
12. How large is the event memory of the control panel?
The event memory of the control panel includes 3584 entries.
13. Is it possible to update the PBX software?
Yes, the PBX allows you to update the software (firmware).
14. What are the basic power supply parameters?
The control panel is powered by 18 V AC (±15%), and the output current of the power supply is 2 A with an output voltage of 12 V DC (±15%).
15. What is the operating temperature range of PERFECTA 16?
The operating temperature range of the control panel is -10 to +55 °C.
16. What is the maximum operating humidity of the device?
The maximum operating humidity of the device is 93±3%.
17. Does the control panel support roller shutter and vibration detectors?
Yes, PERFECTA 16 allows the operation of roller shutter and vibration detectors.
18. How many voice messages can be defined?
Up to 16 voice messages can be defined.
19. What are the dimensions of the electronics board?
The dimensions of the PERFECTA 16 electronics board are 160 x 68 mm.
20. What power should be the recommended transformer?
A transformer of 40 VA is recommended.
Summary
PERFECTA 16 is a control panel main board designed for the construction of wired security systems in small and medium-sized facilities, complying with the requirements of Grade 2 EN 50131. The device offers extensive communication capabilities, flexible expansion of inputs and outputs, convenient control and extensive system and power supply functions.
