Surface mounted metal power supply enclosure SATEL OMI-2 box with transformer 18 V AC 40 VA EN50131 G3
- OMI-2 surface-mounted metal enclosure for indoor mounting of SATEL control panels, modules and expanders, with built-in AC/AC 40 VA transformer, 18 V AC output voltage.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

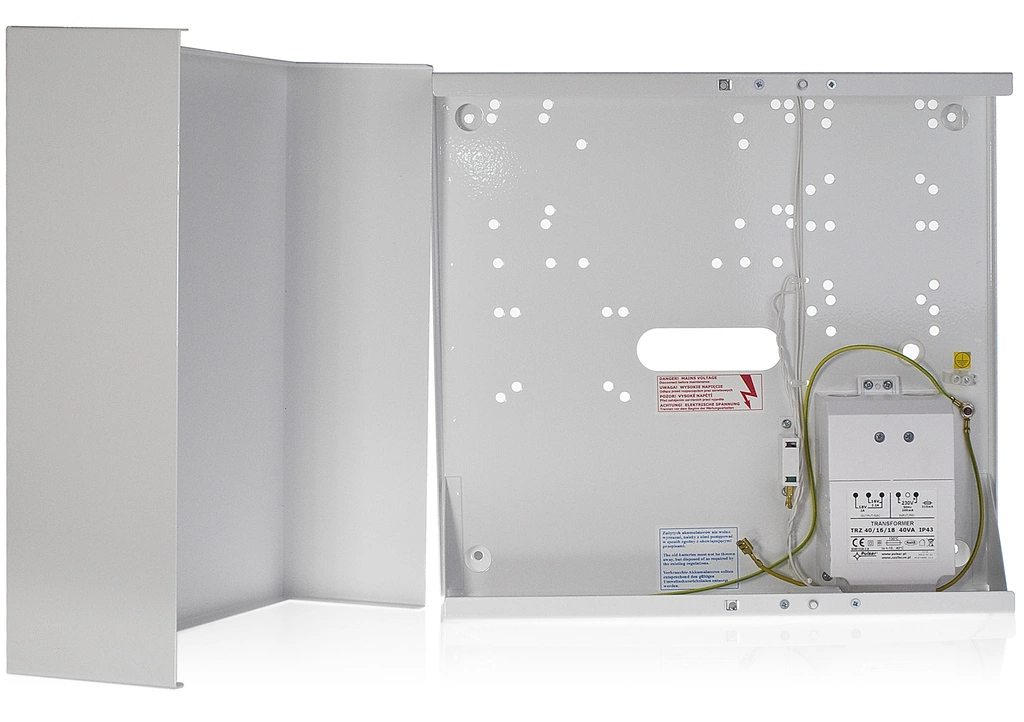

OMI-2 metal surface-mounted enclosure with 40 VA transformer
OMI-2 is a rugged surface-mounted metal enclosure designed to mount SATEL control panels, modules and expanders in various configurations. The enclosure is equipped with an integrated 40 VA AC/AC transformer and dual tamper protection, complying with EN50131 Grade 3 requirements.
- Rugged surface-mounted metal enclosure
- Integrated 40 VA, 18 V AC, 50 Hz transformer
- Dual tamper protection (cover opening and detachment from wall)
- Power supply 230 V AC, 50-60 Hz (±15%)
- EN50131 Grade 3 compliance for demanding alarm systems
Purpose and application of the OMI-2 enclosure
The OMI-2 enclosure is designed to mount SATEL control panels, modules and expanders in various system configurations. The surface-mounted design allows convenient indoor wall mounting, providing adequate space for devices and wiring.
Thanks to its performance in accordance with the requirements of EN50131 Grade 3, OMI-2 can be used in very demanding alarm systems where an increased level of security and resistance to sabotage is important. The enclosure will prove its worth in high-risk facilities, such as pLcommercial, office or industrial ac-stores.
Security and mechanical design
OMI-2 has dual tamper protection: protecting against both the opening of the cover and the detachment of the enclosure from the wall. This solution enables early detection of tampering and sabotage attempts in burglar alarm systems.
The metal construction of the enclosure ensures high mechanical strength and adequate protection of the installed electronic devices. The dimensions of the enclosure are 325 x 310 x 110 mm, which allows the installation of SATEL devices in various configurations, according to the design requirements of the system.
Power supply and transformer parameters
The OMI-2 enclosure uses an integrated 40 VA AC/AC transformer, which facilitates the construction of a compLetaneous power supply system for the control panel or alarm modules. The power supply voltage of the enclosure is 230 V AC, 50-60 Hz with a tolerance of ±15%, which allows operation in a standard power grid.
The transformer provides an output voltage of 18 V AC, 50 Hz, suitable for use with appropriate devices SATEL. Integration of the transformer in the housing simplifies installation and reduces the number of separate power supply components in the system.
Technical data
| Parameter | Value |
|---|---|
| Housing type | Surface-mounted metal enclosure |
| Intended use | Mounting of control panels, modules and expanders SATEL |
| Housing dimensions | 325 x 310 x 110 mm |
| Power supply voltage | 230 V AC, 50-60 Hz (±15%) |
| Transformer power | 40 VA |
| Transformer type | AC/AC |
| Transformer output voltage | 18 V AC, 50 Hz |
| Tamper protection | Dual: against opening the cover and detaching from the wall |
| Installation place | Indoors |
| Compliance with standard | EN50131 Grade 3 |
Technical data source:data sheet for model OMI-2 Link
FAQ - Frequently asked questions
What devices is the OMI-2 enclosure designed for?
The OMI-2 enclosure is designed to mount SATEL control panels, modules and expanders in various system configurations.
Is the OMI-2 suitable for outdoor installation?
No, the OMI-2 enclosure is designed for indoor use.
What are the dimensions of the OMI-2 enclosure?
The dimensions of the OMI-2 enclosure are 325 x 310 x 110 mm.
What power supply voltage is required for the OMI-2?
The OMI-2 enclosure requires a supply voltage of 230 V AC, 50-60 Hz with a tolerance of ±15%.
What is the power of the transformer built into the OMI-2?
The transformer built into the OMI-2 enclosure is 40 VA.
What output voltage does the transformer in the OMI-2 provide?
The transformer in the OMI-2 provides an output voltage of 18 V AC, 50 Hz.
What type of transformer is used in the OMI-2?
The OMI-2 housing uses an AC/AC type transformer.
What kind of tamper protection does the OMI-2 have?
The OMI-2 enclosure has dual tamper protection: against opening the cover and against detachment from the wall.
Does the OMI-2 meet the requirements of a specific safety standard?
Yes, the OMI-2 meets the requirements of EN50131 at Grade 3 level.
In which alarm systems can the OMI-2 be used?
OMI-2 can be used in very demanding alarm systems where EN50131 Grade 3 compliance is required.
Is the OMI-2 a surface-mounted enclosure?
Yes, the OMI-2 is a surface-mounted metal enclosure designed for wall mounting.
Is the OMI-2 suitable for burglar alarm systems?
Yes, the OMI-2 is suitable for burglar alarm systems, according to the characteristics of the enclosure and the standard met.
Is the transformer in the OMI-2 integrated into the enclosure?
Yes, the OMI-2 has an integrated 40 VA AC/AC transformer.
Can the OMI-2 be used in high-risk facilities?
Yes, with EN50131 Grade 3 compliance and dual tamper protection, the OMI-2 can be used in high-risk facilities.
Can the actual appearance of the housing differ from the presentation materials?
Yes, the manufacturer stipulates that the actual appearance of the product may differ from the products shown in the photos.
Is the data in the information materials a binding specification?
No, the posted product descriptions are for informational purposes only according to the manufacturer.
Summary
The OMI-2 is a metal surface-mounted enclosure for indoor applications, equipped with an integrated 40 VA transformer and dual tamper protection. Thanks to its compliance with EN50131 Grade 3, the enclosure can be used in highly demanding intrusion alarm systems.
