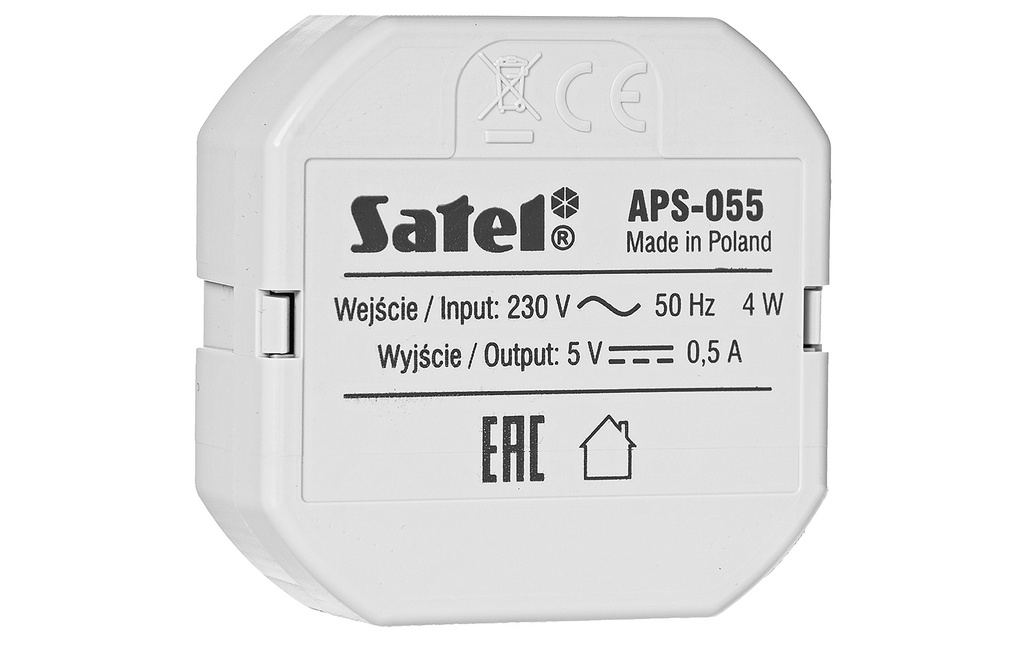

Switching power supply 5 V DC SATEL APS-055 box mount 60 mm 0.5 A 72%
- APS-055 pulsed box power supply for 5 V DC devices, including wireless keypads SATEL; stabilized output voltage of 5 V DC.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
APS-055 impulse 5 V DC power supply box power supply unit
APS-055 is a switch mode 5 V DC power supply box designed to supply power to 5 V DC devices. Among others, it can be used as an external power source for wireless keypads from SATEL.
- Pulsed power supply box for 5 V DC devices
- Designed, among others, for wireless keypads SATEL
- Stabilized output voltage of 5 V DC
- Installation in boxes with a minimum diameter of 60 mm
- Wide operating temperature range from -10°C to +55°C
Application of the APS-055 power supply
The APS-055 is designed to supply power to devices requiring stabilized voltage of 5 V DC, in particular wireless keypads SATEL, such as INT-KWRL2 (electronics version 3.2 or later), PRF-LCD-A2 (electronics version 2.2 or later), PRF-LCD-WRL (electronics version 2.2 or later) and VERSA-KWRL2 (electronics version 2.2 or later). The power supply is used in intrusion alarm systems, where a reliable power source of constant voltage is required.
Design and operational safety
The device has an input anti-interference filter, which reduces the influence of interference from the power supply network on the operation of connected devices. Electronic short-circuit protection of the AC power system, as well as short-circuit and overload protection of the power output increase the safety of expLoatation and protect both the power supply and loads. Mounting is designed for electrical plug-in and surface-mounted boxes with a minimum diameter of 60 mm, facilitating integration into typical electrical installations.
Environmental conditions and efficiency
The APS-055 power supply features Environmental Class II and an operating temperature range of -10°C to +55°C, allowing it to be used in typical indoor installation conditions. Energy efficiency of up to 72% ensures optimum energy utilization with low power consumption of the power supply's proprietary systems, resulting in economical expLoatation.
Technical data
| Parameter | Value |
|---|---|
| Device type | Pulsed box power supply |
| Intended use | Power supply for 5 V DC devices (including wireless keypads SATEL) |
| Nominal output voltage | 5 V DC |
| Output voltage stabilization | Yes |
| Output current | 0,5 A |
| Output current of the power supply | 500 µA |
| Power supply voltage | 195...265 V AC |
| Input noise filter | Yes |
| AC power system short circuit protection | Electronic |
| Power supply output short circuit protection | Electronic |
| Power supply output overload protection | Electronic |
| Mounting | In plug-in and surface-mounted boxes with a minimum diameter of 60 mm |
| Environmental class | II |
| Operating temperature range | -10°C...+55°C |
| Weight | 37 g |
| Dimensions | 47 x 47.4 x 22 mm |
| Energy efficiency | up to 72% |
| Power supply type (according to EN 50131) | B |
| Current consumption of power supply circuits | 3 mA |
| Examples of cooperating keypads | INT-KWRL2 (electronics version 3.2 or later), PRF-LCD-A2 (electronics version 2.2 or later), PRF-LCD-WRL (electronics version 2.2 or later), VERSA-KWRL2 (electronics version 2.2 or later) |
Technical data source:data sheet of APS-055 Link
FAQ - the most common questions about APS-055
What devices is the APS-055 power supply designed for?
APS-055 is designed to power 5 V DC devices, especially wireless keypads from SATEL.
Can the APS-055 power the INT-KWRL2 keypad?
Yes, the APS-055 can be used as an external power supply for the INT-KWRL2 keypad in electronics version 3.2 or later.
What other keypads does the APS-055 work with?
The power supply can power PRF-LCD-A2, PRF-LCD-WRL and VERSA-KWRL2 keypads in electronics versions 2.2 or later.
What is the rated output voltage of the APS-055?
The rated output voltage of the APS-055 power supply is 5 V DC.
What output current does the APS-055 provide?
The APS-055 provides an output current of 0.5 A.
What is the mains supply voltage for the APS-055?
The power supply is supplied at 195...265 V AC.
Does the APS-055 have short circuit protection?
Yes, the APS-055 is equipped with electronic short-circuit protection for the AC power supply system and electronic short-circuit and overload protection for the power supply output.
Does the APS-055 have an input noise filter?
Yes, the device has an input anti-interference filter.
In which boxes can the APS-055 be mounted?
The power supply is designed for mounting in electrical plug-in and surface-mounted boxes with a minimum diameter of 60 mm.
What is the operating temperature range of the APS-055 power supply?
The operating temperature range of the APS-055 is from -10°C to +55°C.
What is the environmental class of the APS-055 power supply?
The power supply has an environmental class II.
What are the dimensions of the APS-055 power supply unit?
The dimensions of the device are 47 x 47.4 x 22 mm.
What is the weight of the APS-055?
The weight of the power supply is 37 g.
What is the energy efficiency of the APS-055?
The energy efficiency of the power supply is up to 72%.
What is the type of power supply according to EN 50131 standard?
According to EN 50131, APS-055 is a type B power supply.
What is the current consumption of the power supply's circuits?
The current consumption of the circuits of the APS-055 power supply is 3 mA.
Is the APS-055 suitable for indoor operation?
Yes, the operating temperature range and environmental class II are provided for typical indoor applications.
Is the output voltage of the APS-055 stabilized?
Yes, the power supply provides a stabilized output voltage of 5 V DC.
Can the APS-055 be used only with SATEL devices ?
The manufacturer specifies the intended use for powering 5 V DC devices and gives as an example the SATEL keypads ; the use with other 5 V DC devices should be selected according to their voltage-current requirements.
Is the APS-055 a component of a burglar alarm system?
APS-055 is a power supply designed for use in intrusion alarm systems as a power source for compatible 5 V DC devices.
Summary
APS-055 is a compact switch-mode power supply box with an output voltage of 5 V DC, designed to power, among others, wireless keypads SATEL. The device offers stabilized voltage, a number of electronic protections and the ability to be mounted in standard installation boxes with a diameter of 60 mm.
