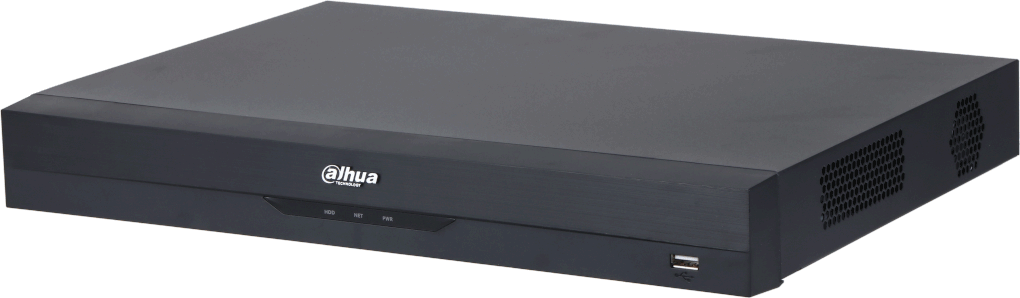

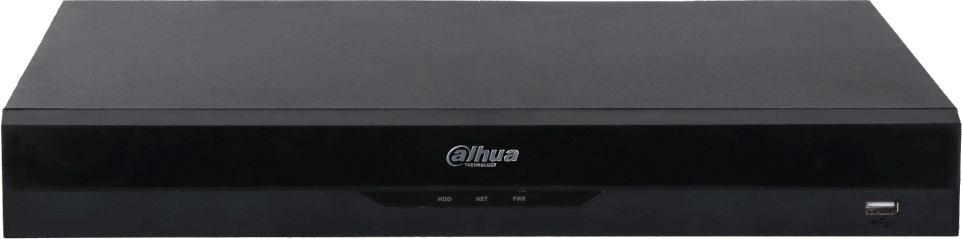

DAHUA IP RECORDER NVR4232-16P-EI
DAHUA IP RECORDER NVR4232-16P-EI
- NVR for up to 32 16MP cameras WizSense SeriesSwitch PoE 16 port Smart H.265+/H.265/Smart H.264+/H.264/MJPEG compression Throughput 256 Mbps (180 Mbps with AI features on) HDD interface 2 SATA ports, up to 16TB each drive (32TB total) AI via NVR:
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
DAHUA IP RECORDER NVR4232-16P-EI
Key Features
- NVR for up to 32 16MP cameras
- WizSense series
- Switch PoE 16 port
- Smart H.265+/H.265/Smart H.264+/H.264/MJPEG compression
- Throughput 256 Mbps (180 Mbps with AI features on)
- HDD interface 2 SATA ports, up to 16TB each drive (32TB total)
- AI via NVR: 1-channel face detection and recognition; 2-channel perimeter protection; up to 10 face databases and 20,000 face images; 4-channel SMD PLus
- AI by camera: Face detection and recognition, perimeter protection; SMD PLus; people counting; stereo analysis; heat map
- Connection of third-party network cameras Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon
- Basic security level 2.3
Dahua Push Notifications
Push notifications for alarm events from Dahua IP network devices. Push notifications are a very useful tool because they allow users to quickly respond to important events without having to constantly monitor apLication. They are especially useful in apLication for monitoring, as they allow users to respond quickly when an important event occurs
DSS EXPRESS / Smart PSS Lite
- The free DSS EXPRESS / Smart PSS lite software for your computer allows you to manage the entire system
- What's more apLication of DMSS mobile for phone is available for most popular pLatforms (Android, iOS, Windows Phone) and allows remote viewing from anywhere in the world
- An important feature is also motion detection thanks to which you will receive information on the detected event via email
- In addition, it has an intuitive interface and Polish menu, which makes it easy to use
ApLikacja mobilna Dahua: DMSS
DMSS is a mobile apLication for surveillance with features such as remote monitoring, video playback, push notifications, device initialization and remote configuration. You can add devices such as IPCs, NVRs, XVRs, VTOs, doorbells, alarm hubs and access controllers. After logging into your account, you can use cloud services such as cloud updates and so on. ApLication supports iOS 9.0 and Android 5.0 or later and can be used with 3G / 4G / Wi-Fi
Back panel:
Dimensions
Technical specifications
| System | |
| Main processor | Industrial-grade processor |
| Operating system | Embedded Linux system |
| Operating interface | Network; Local graphical user interface |
| AI | |
| AI by DVR | Face detection, face recognition, perimeter protection and SMD PLus |
| AI by camera | Face detection; face recognition; perimeter protection; SMD PLus; ANPR; people counting; stereo analysis; cie mappLna |
| Perimeter protection | |
| AI perimeter performance by DVR (number of channels) | 2 channels, 10 IVS rules for each channel |
| AI perimeter performance by camera (number of channels) | 8 channels |
| Face detection | |
| Face attributes | Gender; age group; glasses; expressions; mask; chin |
| AI face detection performance by DVR (number of channels) | 1 channel (up to 12 face images/s per channel) |
| Efficiency of AI face detection by camera (number of channels) | 8 channels |
| Face recognition | |
| Face database capacity | Up to 10 face databases with 200,000 images can be added to each face image with a total capacity of 2.5G. Name, gender, date of birth, address, credential type, credential number, countries and regions, and state can be added to each face image |
| Face recognition by DVR (number of channels) | 8-channel FD (via camera) + FR (via DVR), video stream: 12 face images / s |
| 1-channel FD (via DVR) + FR (via DVR), video stream: 12 face images / s | |
| Face recognition by camera (number of channels) | 8 channels |
| SMD PLus | |
| SMD PLus via DVR | 4 channels: Secondary filtering for people and motor vehicles, reducing false alarms due to leaves, rain and changing lighting conditions |
| SMD PLus by camera | 8 channels |
| Audio and video | |
| Channel access | 32 channels |
| Network throughput | Artificial intelligence disabled: 256 Mbps incoming, 256 Mbps recording and 256 Mbps outgoing |
| Artificial intelligence enabled: 180 Mbps incoming, 180 Mbps recording and 180 Mbps outgoing | |
| Resolution | 16 MP; 12 MP; 8 MP; 6 MP; 5 MP; 4 MP; 3 MP; 1080p; 960p; 720p; D1; CIF |
| Decoding capability | Artificial intelligence off: 2-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 4-channel 8 MP@30 fps; 6-channel 5 MP@30 fps; 8-channel 4 MP@30 fps; 16-channel 1080p@30 fps |
| Artificial intelligence enabled: 1-channel 16 MP@30 fps; 2-channel 12 MP@30 fps; 3-channel 8 MP@30 fps; 4-channel 5 MP@30 fps; 6-channel 4 MP@30 fps; 12-channel 1080p@30 fps | |
| Video output | 1 HDMI jack, 1 VGA jack |
| HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 | |
| *Simultaneous/heterogeneous output sources for VGA and HDMI are configurable | |
| Multi-screen display | 1. screen: 1/4/8/9/16/25/36 |
| 2. screen: 1/4/8/9/16 | |
| Third-party camera access | Panasonic, Sony, Samsung, Axis, Pelco, Arecont, ONVIF, Canon |
| Compression standard | |
| Video compression | Intelligent H.265+; H.265; Intelligent H.264+; H.264; MJPEG |
| Audio compression | G.711a; G.711u; PCM; G726 |
| Network | |
| Network protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; UDP; SMTP; NTP; DHCP; DNS; IP Filter; PPPoE; DDNS; FTP; Alarm Server; IP Search (support Dahua IP camera; DVR; NVS; etc.); P2P; Auto Recording |
| Cell phone access | Ios; Android |
| Interoperability | ONVIF 22.06(T profile; S profile; G profile); .CGI; SDK |
| Browser | Chrome; IE9 and later; Firefox browser |
| Playback of recordings | |
| Multi-channel playback | Up to 16 channels |
| Recording mode | General, motion detection; smart; alarm |
| Backup method | USB device and network |
| Playback mode | Instant playback, general playback, event playback, tag playback, smart playback |
| Storage | |
| Disk group | Yes |
| Alarm | |
| General alarm | Motion detection; privacy masking; video loss; scene change; PIR alarm; IPC external alarm |
| Anomaly alarm | Camera disconnection; storage error; disk full; IP address conflict; MAC address conflict; login blocked; and cyber security exception |
| Intelligent alarm | Face detection; face recognition; perimeter protection; SMD PLus; people counting; stereo analysis; cie mappLna |
| Alarm connection | Record; snapshot; External IPC alarm output; sound; buzzer; .log; Default settings; E-mail |
| Interfaces | |
| Audio input | 1-channel RCA |
| Audio output | 1-channel RCA |
| Alarm input | 4 channels |
| Alarm output | 2 channels |
| HDD interface | 2 SATA ports, up to 16 TB. Maximum HDD capacity depends on ambient temperature |
| RS-232 | 1 |
| USB | 2 (1 USB 2.0 port on front, 1 USB 2.0 port on rear) |
| HDMI | 1 |
| VGA | 1 |
| Network port | 1 Ethernet port 10/100/1000 Mbps, RJ-45) |
| PoE Port | 16 ports, 10/100 Mbps, IEEE 802.3 af/at |
| General | |
| Power supply | 100-240 V AC, 47-63 Hz |
| Power consumption | Total NVR output power is <10 W (without hard drive) Total PoE output power is 130 W, maximum single port output power is 25.5 W |
| Net weight | 2.60 kg (5.73 lbs) |
| Gross weight | 3.80 kg (8.38 lbs) |
| Product dimensions | 375.0 mm × 329.3 mm × 53.0 mm (14.76" × 12.96" × 2.09") (W × L × H) |
| Packaging dimensions | 451.0 mm × 425.0 mm × 147.0 mm (17.75" × 16.73" × 5.79") (W × L × H) |
| Temperature | From -10°C to +55°C (14°F to +131°F) |
| Storage temperature | From -20°C to +60°C (-4°F to +140°F) |
| Humidity | 10%-93% (RH) |
| Installation | Server or desktop cabinet |
| Certifications | FCC: 47 CFR FCC Part 15, Subpart B, Class A |
| CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 | |
| CE-LVD: EN 62368-1:2014 |
