Set Beninca KBOB30M.PM 230V for double-leaf gates up to 3m with photocells and remote control
- Automation set Beninca KBOB30M.PM 230V for double-leaf gates up to 3 meters per leaf. In compLect drives, control unit, photocells and remote control. Quiet operation, smooth start and stop, easy installation.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Set Beninca KBOB30M.PM 230V for double-leaf gates
KompLetny set of automation for swing gates with the entrance light up to 6 m (up to 3 m and 250 kg per leaf). Durable construction, mechanical limiters, quiet operation and easy installation - ideal for private properties.
- Supports gates up to 3 m and 250 kg per leaf (total 6 m of entry)
- Mechanical limiters - no need to install stoppers
- 20 mm worm gear and steel/bronze gearbox for long life
- Wicket function and quiet operation
- Safe operation - photocells PUPILLA.T included

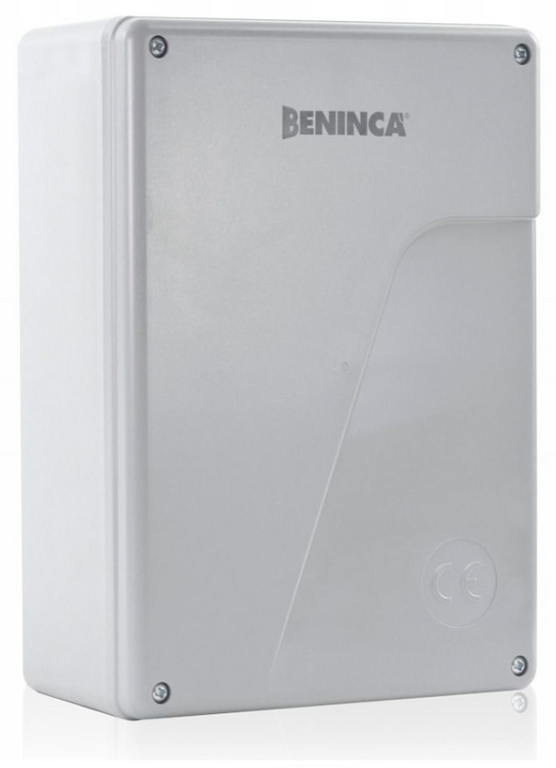

- Easy installation and configuration thanks to Heady control panel with LCD
Key benefits
Automation Beninca KBOB30M.PM 230V is a robust and proven solution for home double-leaf gates. Mechanical stops eliminate the need for stopwatches, and the Heady control panel provides easy parameter programming and ARC remote control operation.
Features and equipment
- Heady control panel with LCD display and 433.92 MHz receiver (ARC, fixed, variable code)
- Wicket function - partial opening of one leaf
- Outputs 230V AC and 12V AC/DC for locks and lighting
- Parameter adjustment, cycle counter, photocell test
- Hermetic housing IP55
Application
The set is designed for double-leaf gates installed on private properties and residences. Thanks to its robust construction and high torque, it is ideal for steel and aluminum gates.
Technical specifications
| Power supply | 230V AC (50-60 Hz) |
| Power supply for motors | 230V AC |
| Current | 1,8 A |
| Maximum force | 2300 N |
| Opening time to 90° | approx. 18 s |
| Duty cycle | 30% |
| Screw travel | 325 mm |
| Degree of protection | IP44 |
| Operating temperature | -20...+50 °C |
| Max. leaf length | 3 m |
| Actuator weight | 8.6 kg |
| Limiters | Mechanical |
Summary
Beninca KBOB30M.PM 230V is a reliable and compLetable set for automation of double-leaf gates, offering reliability, safety and comfort of daily use.
FAQ (customer)
- Q: Does it include installation accessories? A: Yes, basic mounting accessories are included.
- Q: Can it be used outdoors? A: Yes, the housing is weather-resistant.
- Q: Is it compatible with smart home systems? A: It depends on the model; most versions support integration.
- Q: How long is the warranty? A: The warranty period is 5 years.
- Q: Is it easy to install without professional help? A: It’s designed for quick installation, but a certified installer is recommended.
FAQ (expert)
- Q: What communication protocol is supported? A: It supports Modbus RTU and KNX integration.
- Q: What’s the nominal input voltage tolerance? A: ±10% of rated voltage.
- Q: Is firmware upgrade available via USB or OTA? A: Yes, firmware can be updated via both methods depending on model.
- Q: What’s the IP protection rating? A: IP65 or higher, depending on version.
- Q: Can it be integrated into an existing BMS? A: Yes, via RS-485 or Ethernet interface.
