Photocells Beninca PUPILLA.0C (180 degrees)
Photocells Beninca PUPILLA.0C (180 degrees)
- Photocells Beninca PUPILLA.0C 24V DC with 180° adjustment angle. Range 20-25 m, IP44, synchronization of up to 4 pairs. Compact dimensions 110×36×31 mm and easy installation with beam centering LED.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Brand
Entity responsible for this product in the EU
AUTOMATISMI BENINCA' SPAMore
Address:
Via Capitello 45Postal code: 36066City: SANDRIGOCountry: ItalyE-mail: sales@beninca.it
Symbol
940901764
Producer code
2032000014686
Series
Warranty
Photocells Beninca PUPILLA.0C - 180°

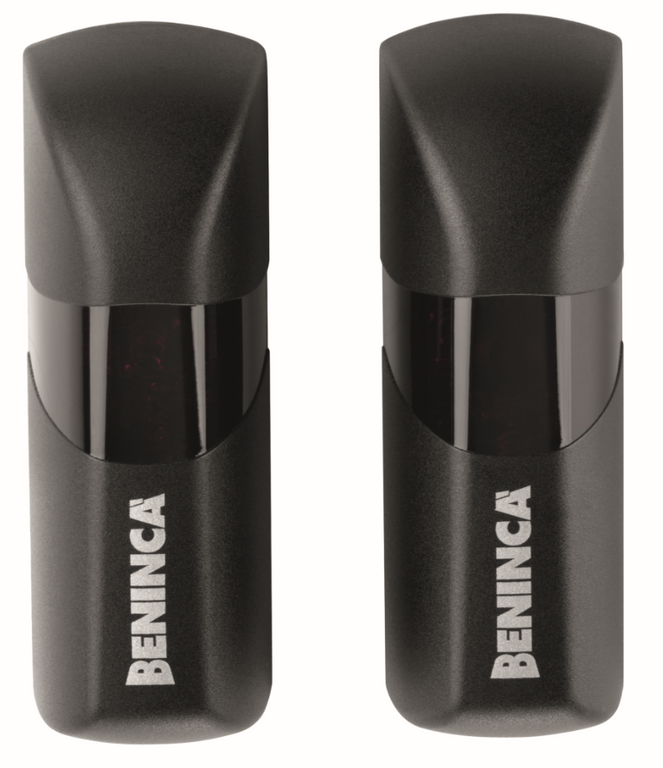

A pair of synchronization photocells Beninca PUPILLA.0C with an adjustment angle of 180° for surface mounting. The devices operate with 24V DC technology and allow synchronization of up to 4 pairs of photocells. A reliable solution to increase the security of automatic swing and sliding gates

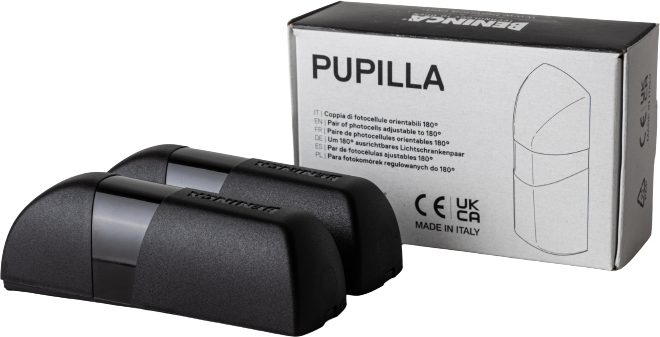

The set includes:
- Transmitting photocell Beninca PUPILLA.0C
- Receiving photocell Beninca PUPILLA.0C
- User manual
- Original manufacturer's packaging
Description
The Beninca PUPILLA.0C photocells, with compact dimensions of 110 × 36 × 31 mm, are designed for easy installation. Thanks to the LED for easy centering of the beam, installation is quick and hassle-free. The devices are designed to work with most gate automation control panels
Technical specifications:
- Power supply: 22-30 V AC or 20-28 V DC
- Range: 20-25 m
- Adjustment angle: 180°
- Degree of protection: IP44
- Operating temperature: -20°C to +70°C
- TX current consumption: 20 mA
- RX current consumption: 50 mA
- Dimensions: 110 × 36 × 31 mm
