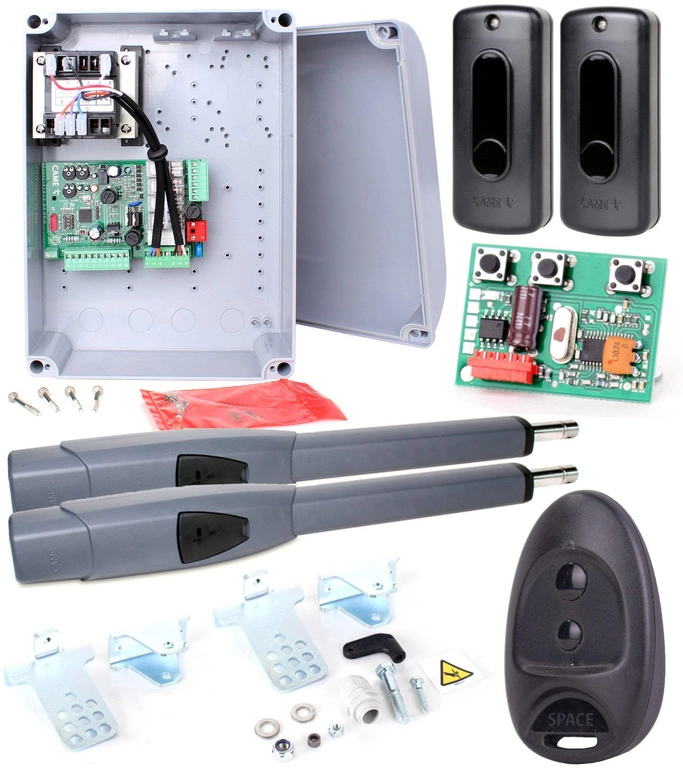

  • Scope of delivery: 2x CAME ATS30AGS 230V actuator with limit switches- Housing for control panel with transformer,Control unit - ZF1N Radio card - AF43SP 1 dual channel remote control CAME SP2 Photocells DIR10 Steel brackets and mounting accessories
Size
P/N:

573,00 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
Product available in our warehouse
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in our warehouse
Shipment
Cheap and fast delivery
30 days for easy returns
This store offers an additional guarantee of up to €20,000 and Trusted Shops insurance. You receive the purchased item or a refund.
After purchase you will receive pts.
Brand
CAME
Entity responsible for this product in the EU
Came SpaMore
Address: Via Risorgimento, 96,Postal code: 36070City: San Pietro Mussolino,Country: ItalyE-mail: info@came-italy.com
Symbol
001PLU0036
Producer code
8050456087119
Series
Came ATS
Warranty
24 Months Warranty

Set for swing gates CAME ATS 30AGS STANDARD 230V up to 3 m (ATS30AGS + ZF1N + AF43SP + SP2 + DIR10)

CompLetable and resistant set of automation for double-leaf gates - up to 3 m leaf length and up to 400 kg, with smooth 230V actuators and built-in limit switches.

  • For wings up to 3 m and 400 kg (up to 800 kg at 2 m length).
  • 2 built-in IP67 limit switches in each actuator.
  • Fast opening to 90 degrees in about 15 seconds.
  • Up to 20 cycles per hour, 230V motor with thermal protection.
  • CompLet: control panel ZF1N, radio AF43SP, remote control SP2, photocells DIR10, mounting accessories.
  • Universal installation on metal and clinker posts, extension up to 40 cm.

Key benefits

  • High reliability in various weather conditions: actuator body with IP44 protection, IP67 limit switches.
  • Smooth and quiet operation due to bevel gear and axial motor placement.
  • Possibility of installation at the offset of the hinge up to 20 cm from the edge of the pole.
  • High thrust force of 400-3000 N and large screw extension of up to 40 cm.
  • Stable operation: 230V motor (250 W) with 150°C thermal protection and up to 20 cycles/hour cycling.
  • Aesthetic appearance: housing in anthracite color (RAL 7024).

Features and equipment

  • CAME ATS30AGS 230V actuators with 2 built-in limit switches (IP67) - no need for bumpers on opening and closing.
  • ZF1N control panel - basic functions for home applications.
  • AF43SP radio card + CAME SP2 2-channel remote control - remote gate control.
  • Pair of DIR10 photocells - safety of use.
  • Steel handles, clutch keys and compLet mounting accessories included.
  • Mechanical drive, fast opening to 90° in about 15 s, easy access to the decoupling from the top of the housing.

Application and installation instructions

  • For the automation of double-leaf backyard gates with a leaf length of up to 3 m and a weight of up to 400 kg (up to 800 kg with a leaf of 2 m).
  • Universal installation on steel and clinker posts; works well with a hinge offset of up to 20 cm.
  • Recommended installation of an electric lock for secure locking; for sashes over 3 m, an electric lock is required.
  • Operates at temperatures from -20 to +55°C, up to 20 cycles per hour in residential applications.

Technical data

Manufacturer CAME
Set name CAME ATS 30AGS STANDARD 230V for swing gates
Actuator model ATS30AGS
Control unit ZF1N
Radio card / remote control AF43SP / 1x CAME SP2 (2 channel)
Photocells DIR10 (1 pair)
Power supply (device / motor) 230 V, 50/60 Hz / 230 V, 50/60 Hz
Maximum motor power 250 W
Current consumption of the motor 1 A
Protection degree of the actuator IP44
Limit switches 2 pcs, built-in, IP67
Thrust force 400-3000 N
Max. leaf length 3 m
Max. wing weight 400 kg (at 3 m); up to 800 kg (at 2 m)
Sash length/sash weight relationship
  • 3.0 m to 400 kg
  • 2.5 m to 600 kg
  • 2.0 m to 800 kg
Screw/arm extension up to 40 cm
Opening time to 90° approx. 15 s
Duty cycle up to 20 cycles/hour
Motor thermal protection 150°C
Operating temperature range -20°C to +55°C
Wicket function No
Housing color Anthracite (RAL 7024)
Installation notes Electric lock recommended; required for wings > 3 m
Accessories included Steel handles, decoupling keys, mounting accessories

Summary

CAME ATS 30AGS STANDARD 230V is a compLetable and robust set for swing gates up to 3 m, combining reliability, fast operation and convenient radio operation. Ideal for home installations on metal and clinker posts.
