CAME ATS 30DGS SAFE 24V SPACE set for swing gates
CAME ATS 30DGS SAFE 24V SPACE set for swing gates
CAME ATS 30DGS SAFE 24V SPACE set for swing gates
CAME ATS 30DGS SAFE 24V SPACE set for swing gates
CAME ATS 30DGS SAFE 24V SPACE set for swing gates
CAME ATS 30DGS SAFE 24V SPACE set for swing gates
CAME ATS 30DGS SAFE 24V SPACE set for swing gates
CAME ATS 30DGS SAFE 24V SPACE set for swing gates
CAME ATS 30DGS SAFE 24V SPACE set for swing gates
CAME ATS 30DGS SAFE 24V SPACE set for swing gates
CAME ATS 30DGS SAFE 24V SPACE set for swing gates
CAME ATS 30DGS SAFE 24V SPACE set for swing gates

CAME ATS 30DGS SAFE 24V SPACE set for swing gates

+ Add to compareAdd to shopping list
  • Included: 2x CAME ATS30DGS 24V with limit switches- Housing, transformer and Control Panel ZL65 Radio card AF43SP 1x CAME SPACE remote control SP2 Photocells DIR10 Mounting accessories Clutch key set
Size
P/N:
679,38 EUR
incl. VAT / pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
You can also buy using:
30 days for easy returns
This store offers an additional guarantee of up to €20,000 and Trusted Shops insurance. You receive the purchased item or a refund.
Brand
CAME
Symbol
001PLU0046
Producer code
8050456086723
Series
Came ATS
Warranty
24 Months Warranty

CAME ATS 30DGS SAFE 24V SPACE set for swing gates

The set includes

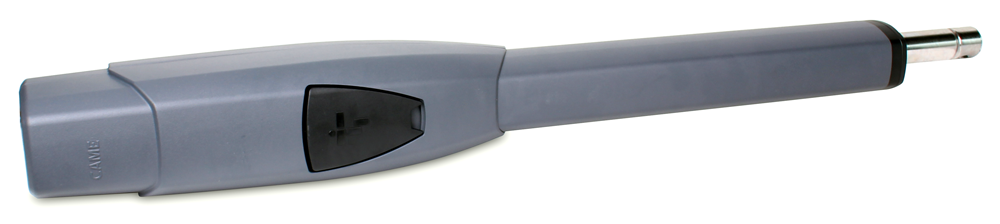

  • Two CAME ATS30DGS 24V telescopic actuators with built-in limit switches

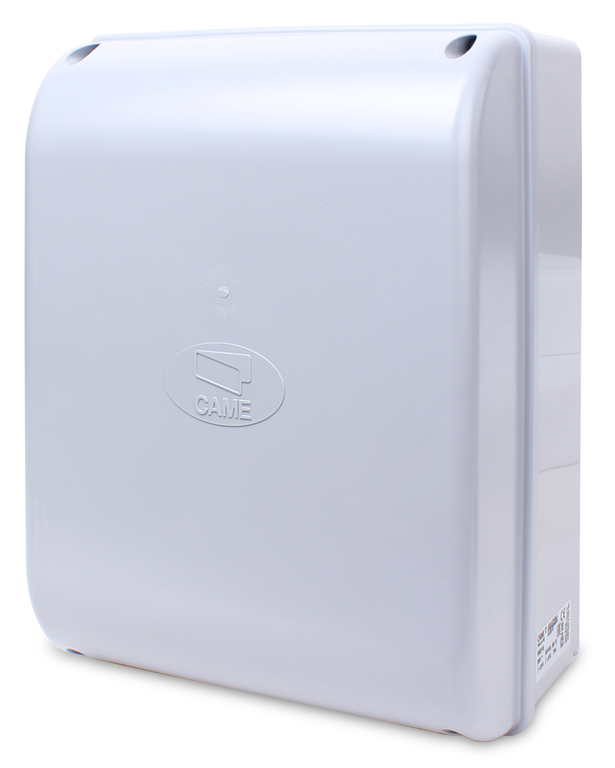

  • Complete control panel housing with transformer and necessary accessories
  • ZL65control unit
  • AF43SPradio card
  • 1 CAME SPACE SP2 dual channel remote control unit
  • A pair of DIR10photocells
  • Steel brackets and a complete set of mounting accessories
  • A set of decoupling keys and accessories

Key features

  • Maximum leaf weight: 400-800 kg
  • Gate power supply: 230V, 24V motor
  • Drive: mechanical
  • Maximum leaf length: 3 m
  • Standard equipped with two limit switches

Purpose and advantages

  • Ideal for use with backyard, residential and business swing gates - 24V motor allows intensive operation
  • Universal - fits gates with different types of posts, even when the hinge is placed 20 cm from the edge of the post
  • High resistance to weather conditions thanks to waterproof and frostproof (IP67) limit switches
  • Unique in its class - telescopic arm allows screw extension up to 40 cm already for gates of 3 m in length
  • 24V motor guarantees safe and efficient operation, while the intelligent control panel controls safety parameters, such as the regulation of the force and speed of response to obstacles
  • Smooth operation of the device with adjustable speed and soft start and braking at end positions
  • The ZL65 control panel allows full control of the device's operation, monitoring the response to obstacles and adjusting the speed at end positions

Product description

  • Complete set with modern telescopic actuators ATS CAME, designed for the automation of double-leaf gates (2x 3 m wing)
  • ATS30DGS model dedicated to household, estate and company gates, equipped with a durable 24V 80W motor, designed for intensive operation
  • ZL65 control panel with intuitive display allows full control of the process of opening and closing the gate, including overload force regulation, which ensures safety and smooth change of speed in end positions
  • The axial arrangement of the motor in the housing gives it an elegant appearance, and the use of bevel gears guarantees quiet and smooth operation
  • The ATS system is designed to automate double-leaf gates with a leaf width of up to 3 m (with a maximum load of 400 kg - for a 2 m leaf up to 800 kg)
  • Designed with versatility in mind - it fits any type of post (metal or clinker), thanks to a telescopic arm extension of up to 40 cm
  • Each actuator is equipped with two, infinitely adjustable limit switches (IP67), which eliminate the need for additional resistance when opening and closing the gate
  • The anthracite ATS housing (RAL7024) blends in perfectly with modern fencing system designs
  • The modern ZL65 control panel in the ATS 24V kit works with the CAME CONNECT system, allowing you to control the device with free mobile applications (e.g. CAME QBE) and manage the gate via the website

Technical specifications

  • Model: ATS30DGS
  • Max. leaf width: 3 m up to 400 kg, 2.5 m up to 600 kg, 2 m up to 800 kg
  • Degree of protection: IP44
  • Gate power supply: 230V, 50/60Hz
  • Motor power supply: 24V DC
  • Current consumption: 8A max
  • Motor power: 80W
  • Dutycycle: intensive use
  • Thrust force: 400/3000N
  • Wicket function: YES
  • Thermal protection: 150°C
  • Opening time to 90°: 15-30 seconds
  • Operating temperature range: from -20°C to +55°C

NOTE: To ensure reliable closing and protection of the drive gear, the installation of an electric lock is recommended, especially for gates with wings exceeding 3 meters
