CAME BXV 4 SAFE ATOMO set (TOP remotes) for 400kg sliding gates

CAME BXV 4 SAFE ATOMO set (TOP remotes) for 400kg sliding gates

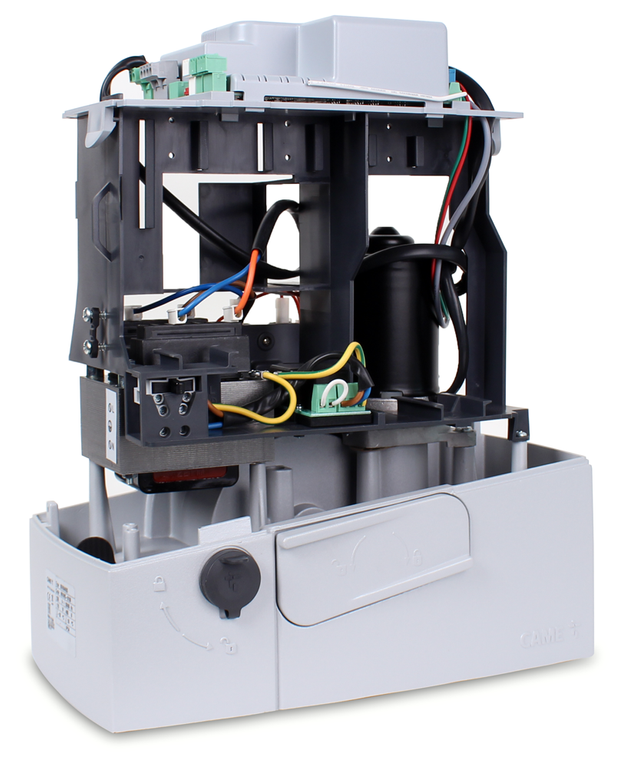

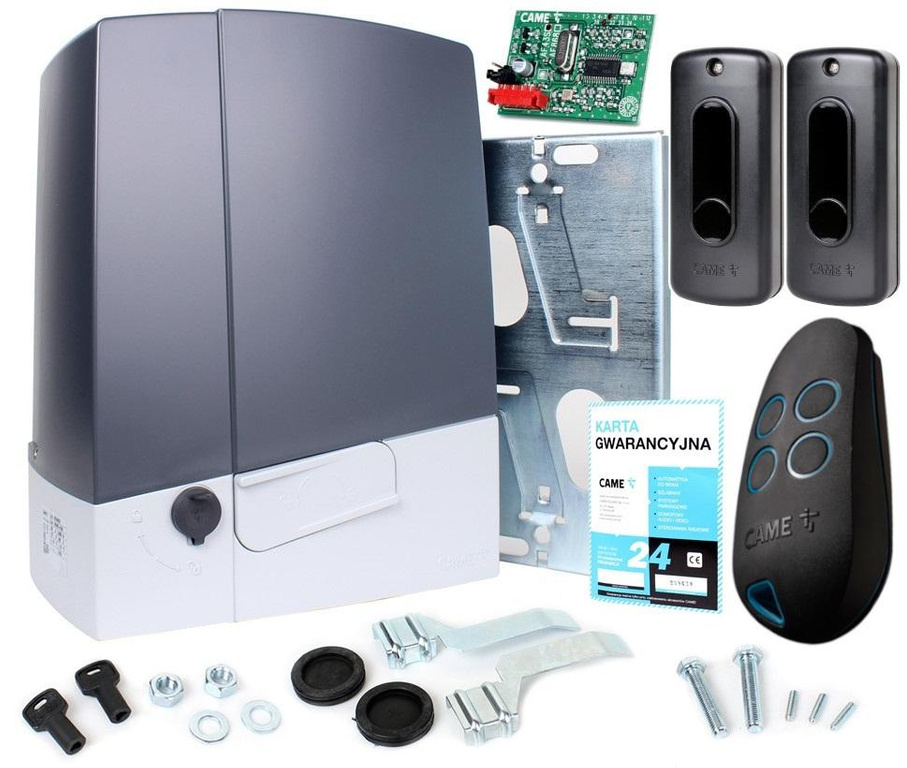

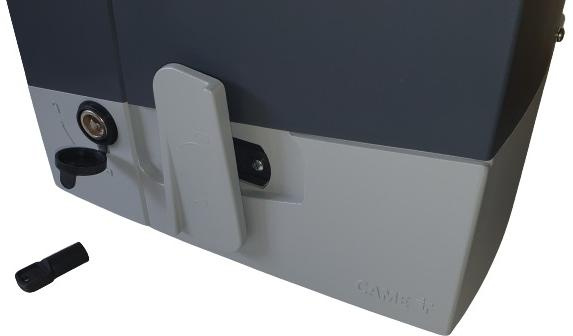

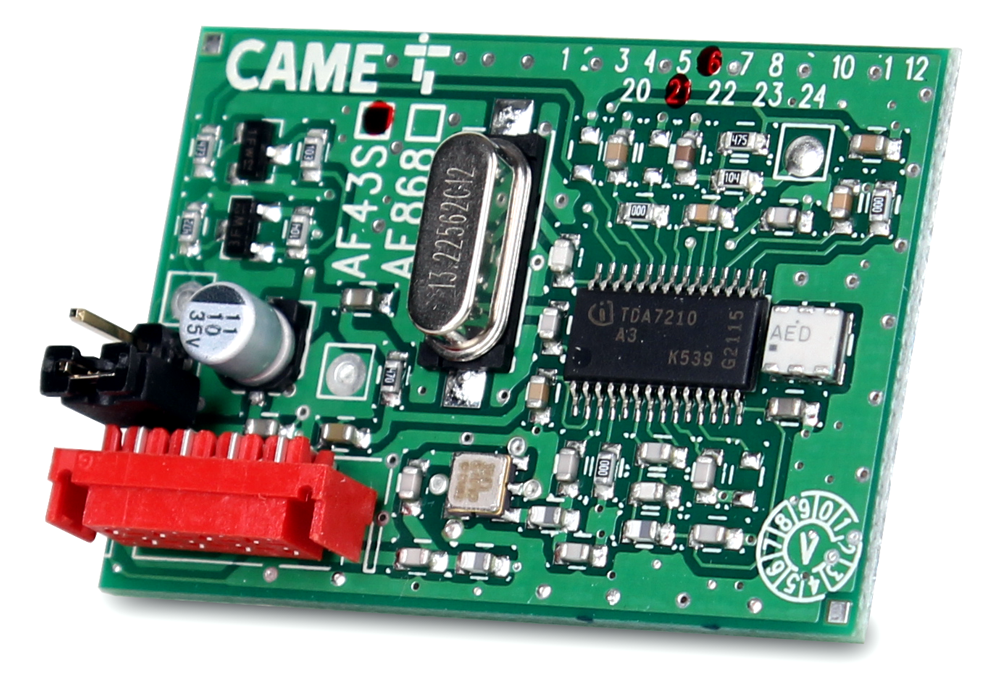

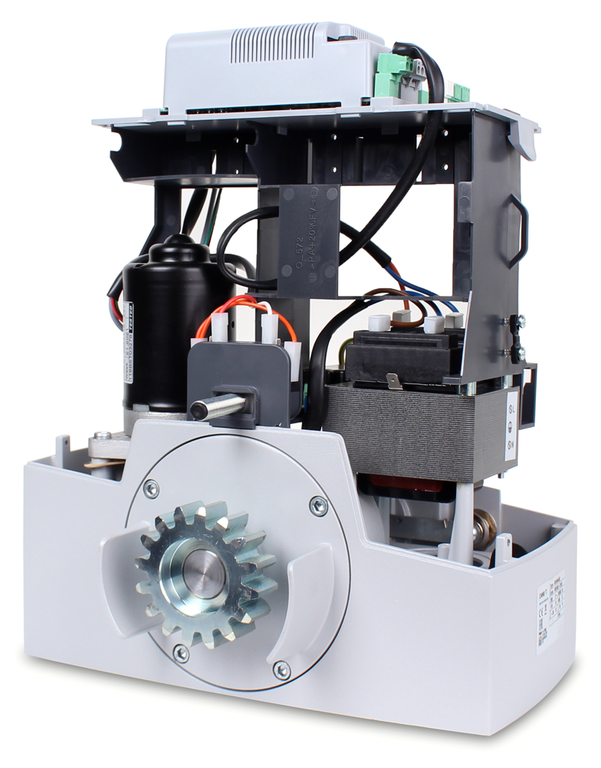

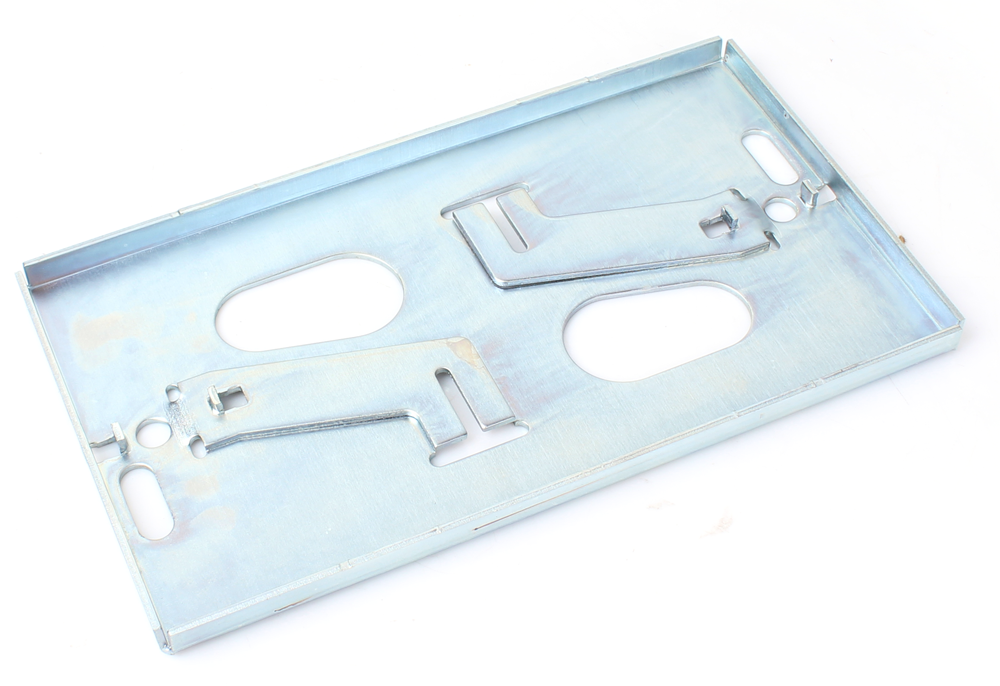

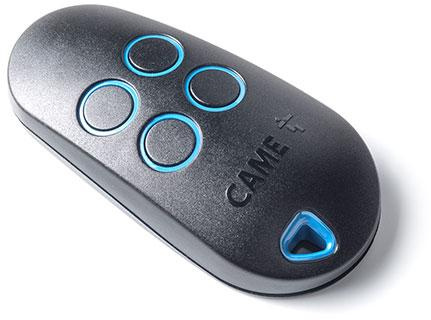

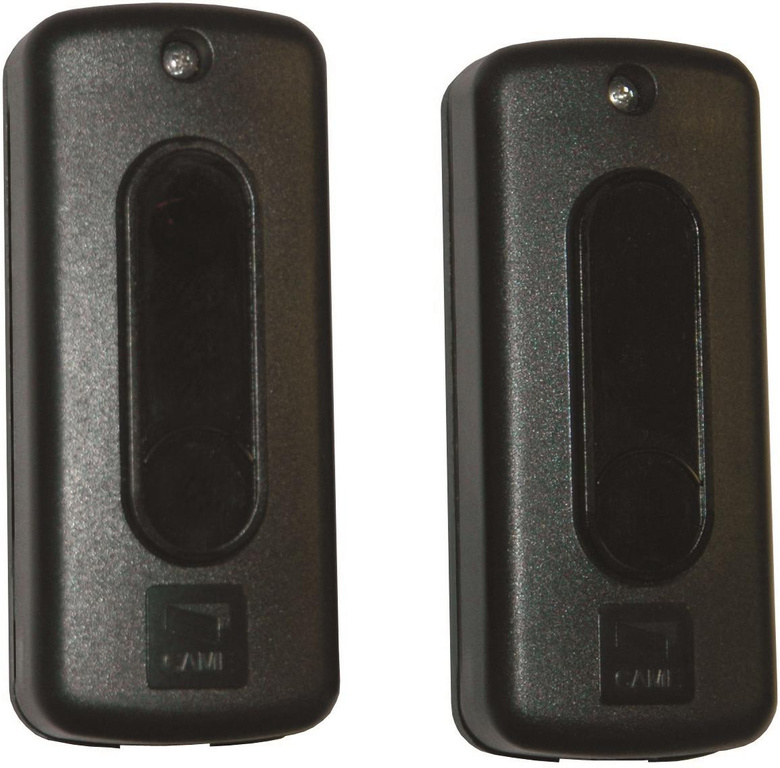

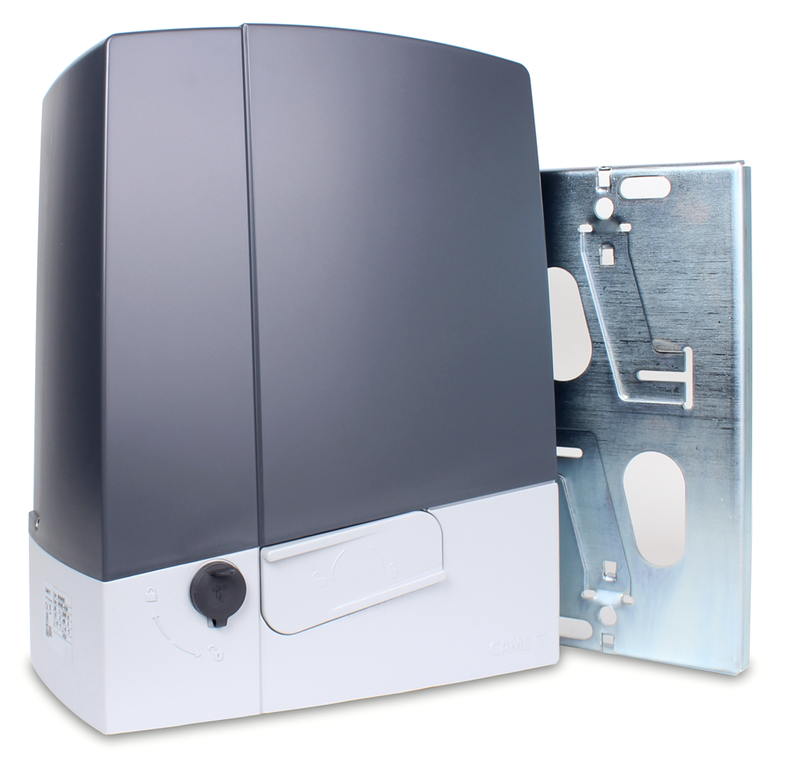

Included: CAME BXV04AGS 24V actuator Control panel: ZN7 Radio card: AF43S 1 TOP/ATOMO four-channel remote control Photocells DIR10 Foundation plate and mounting accessories Mechanical limit switches 2 decoupling keys

Brand

Symbol

8K01MS-011

Producer code

8050456091277

Series

Warranty

CAME BX PLUS SPACE kit for 400kg sliding gates (001PLU0052)

Purpose

The CAME BX PLUS set is designed for gates weighing up to 400kg and up to 14 meters long. It has a robust and resistant 230V motor with 300N thrust . The ZBX7N control panel with built-in display of an intuitive programming system gives you full control of the process of opening and closing the gate - including regulation of the overload force ensuring safety and stopping (or reversing) the movement when encountering an obstacle

The advantage of this solution is the smooth change of speed in the end positions and the ability to eliminate the effect of sudden stopping of the gate

The set includes:

CAME BX Plus (BX704AGS) 230V actuator with ZBX7N control panel
Radio card: AF43SP
1 pc four-channel remote control CAME SPACE SP2 - black
Pair of photocells: DIR10
Steel foundation plateand mounting accessories
2 sets ofclutch keys

Description

Timeless design and latest generation electronics. The BX Plus is a reliable solution for both private property and heavy-duty applications

the easy-to-read display and accessible menu will make the setup process easier and faster
Memory Roll function to back up the user base and settings
Possibility to connect RIOCN8WS, R700, R800, RSE - CAME KEY, AF cards
Possibility of direct connection of resistance edge strips
The control panel supports all types of CAME radio control in two frequency ranges 433.92 Mhz and 868.35 Mhz: TOP (fixed code), Rolling Code (variable code) and Twin (KeyBlock)

OPTICAL reader mounted on the stator of the BX Plus motoris responsible for automatically adjusting the gate's slowdown. The drive is characterized by SLOW operation with the possibility of soft start and braking the gate in the end positions
INTELLIGENT control unitZBX7N gives users and installer the ability to fully control the operation of the device and control the reaction to the appearance of an obstacle in the light of the gate

The BX PLUS actuator has an encoder optical reader - a sensor that controls the movement of the gate , which will stop the gate when it encounters an obstacle to provide users with greater security. This action raises the level of security above the standard, while using photocells. The anthracite color of the housing of CAME BX actuators matches the popular and modern designs of fence systems

The innovative control unit used in the kits is dedicated to the intelligent control system CAME CONNECT allowing control and status of the device using free applications for your phone - check out CAME QBE and other accessories giving a very wide range of possibilities for convenient and secure management of your gates from a smartphone or website
The built-in slotdesigned for CAME KEY also gives the installer access to advanced programming and configuration via smartphone and tablet, access to memory and uploading data on settings and stored users

Came Connect

Cloud system allows remote management of the installation via a downloadable device or computer connected to the internet

Dimensions and technical specifications

Actuator type:BX704AGS
Maximum leaf length:14m
Maximum leaf weight:400kg
Degree of protection:IP44
Power supply:230V AC
Power supply for the motor:230V AC
Power consumption in STAND BY mode:2.6W
Power consumption with RGP1 module (option):0.5W
Power:420W
Pulling force:300N
Travel speed:10m/min
Duty cycle:30%
Capacitor:12uF
Operating temperature:from -20 to +55 degrees Celsius
Motor protection:150 degrees Celsius

Mounting base with built-in stabilizing whiskers.
