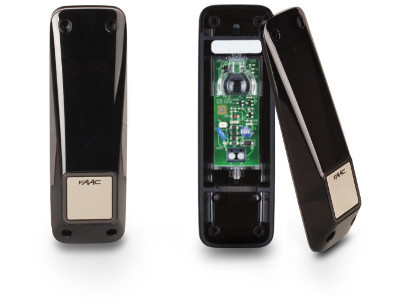

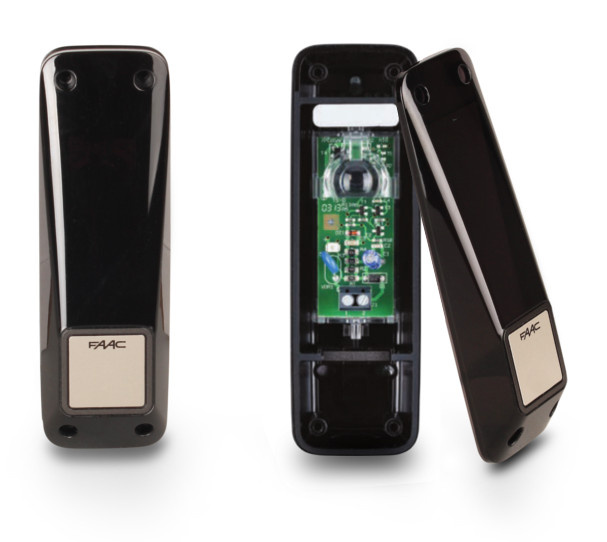

Faac XP20D photocell "with adjustable eye"
Photocell XP 20 D "with eye adjustment"
- Surface-mounted installation or on a dedicated column
- Directional photocell with adjustable eye angle
- Operating range up to 20 m
- Degree of protection: IP 54
- Automatic vertical calibration
Purpose
A set of XP 20D photocells (transmitter + receiver) intended for use with FAAC control panel models: 455, 748D, E045, E721. These control panels together with the photocells will be used in FAAC drives and Genius: C720, C721, C740, 414, 414 long, G-bat 300, G-bat 400, Milord and others
The set includes
- Set of XP 20 D photocells (cat. no. 6525)
Item description
The new XP 20 D adjustable photocells consist of a transmitter and a receiver operating on the basis of a modulated infrared beam with a range of up to 20 m. Refraction of the beam of rays changes the mode of operation of the receiver. Extremely compact dimensions: 41 x 130 x 42 mm. Possibility of inserting the cable into both the rear and bottom parts of the housing (16 mm) and mounting on a bracket
The photocells allow both wall and bracket mounting, offering the ability to mechanically adjust the horizontal viewing angle by 180° (from -90° to +90°) and a vertical optical self-adjustment function, especially useful when the monitored area is not entirely flat
Buy from an authorized FAAC partner
Only buying from an authorized FAAC brand partner (which we are) guarantees the purchase of an original FAAC product with Polish warranty protection
Advantages of buying from Polish distribution:
- Service and warranty provided within the country
- Access to a wide range of spare parts
- Professional service
Specification
- Power supply voltage: 24V / 24V~
- Nominal range: 20 m
- Installation type: Wall mounting
- Dimensions (LxWxH): 41 x 130 x 42 mm
- Horizontal adjustment angle: -90° to +90°
- Self-adjustment angle: ±7° (at 20 m) / ±13.5° (at 5 m)
- Obstacle detection time: 13 ms
- Current consumption: Rx (30 mA) + Tx (20 mA)
- Protection class: IP54
- Maximum contact capacity: 60VA/24W
- Operating temperature: -20°C ÷ +55°C
