Set Nice ROBUS 400 ERA ONE BiDi for sliding gates

Set Nice ROBUS 400 ERA ONE BiDi for sliding gates

• Purpose

  Complete automation kit Nice ROBUS 400 designed to automate residential and industrial sliding gates with:

  • maximum weight: up to 400 kg

  • maximum length: up to 8 meters

  Equipped with a reliable actuator with a bronze and steel gearbox, ensures longevity and quiet and precise operation.

  ---

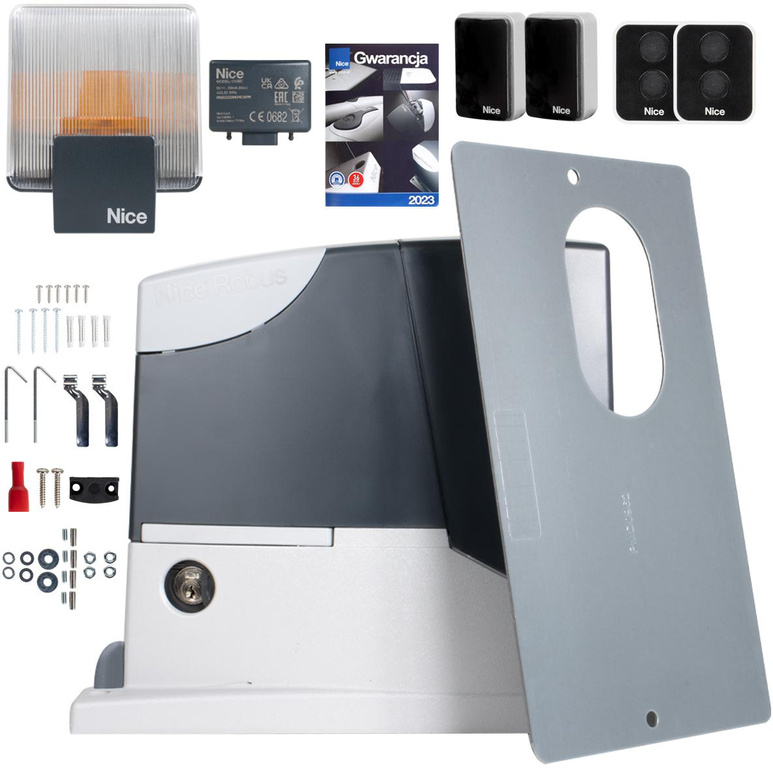

  The set includes

  • Robus 400 actuator with RBA3R10 (BlueBus) control panel

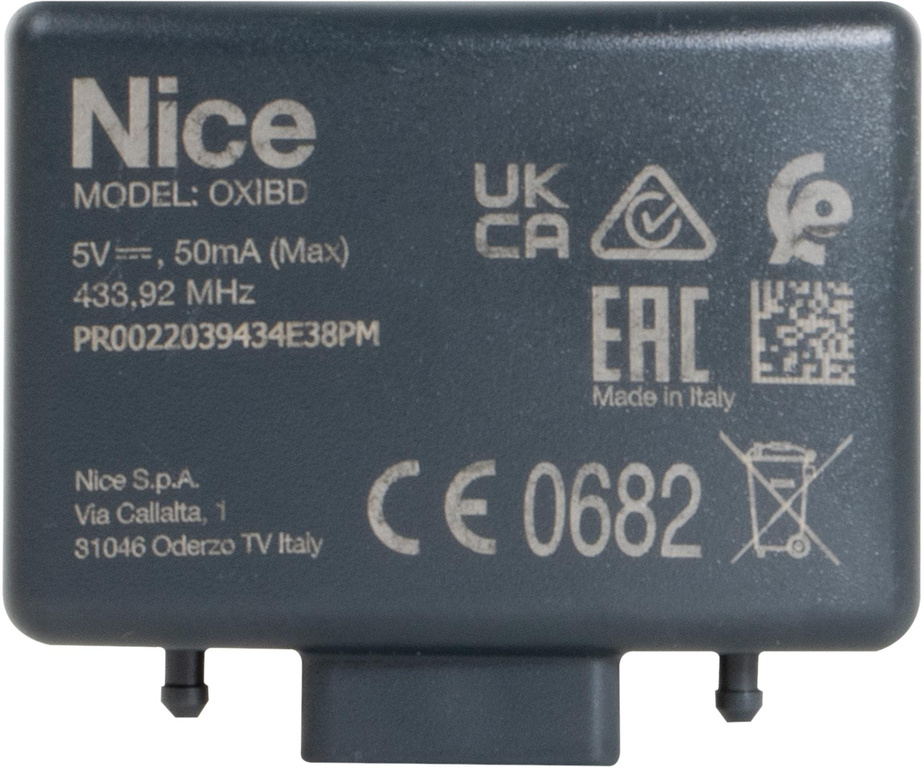

  • OXIBD radio receiver

  • 2 × MyGO4 four-channel remote controls

  • EPMB (BlueBus) photocells - transmitter + receiver

  • ELDC 12-36V LED lamp with built-in antenna

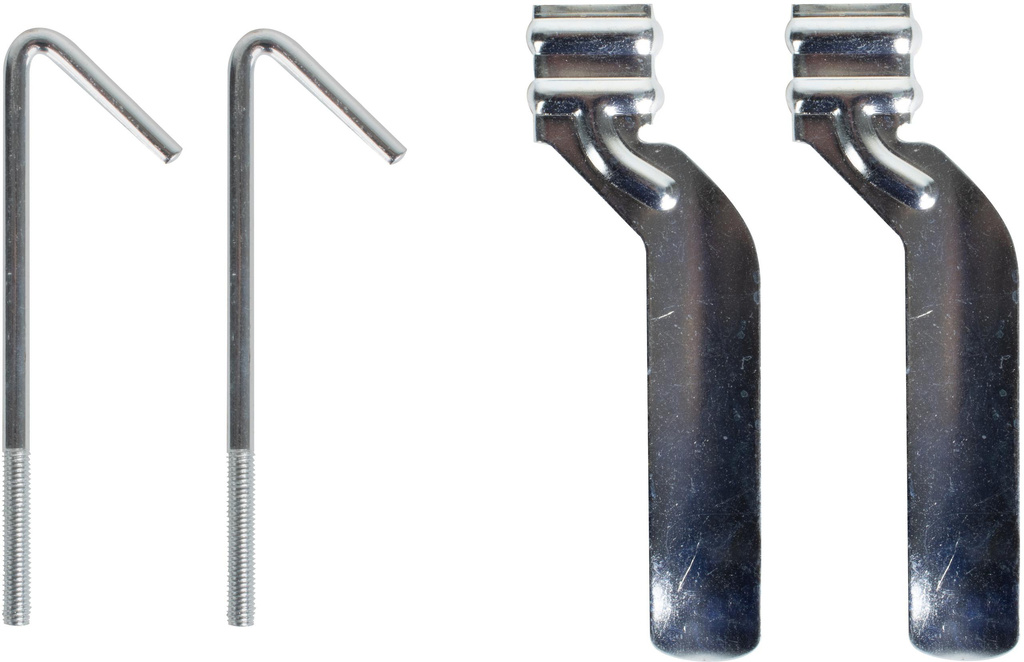

  • Mounting plate with anchors

  • Mechanical limit switches

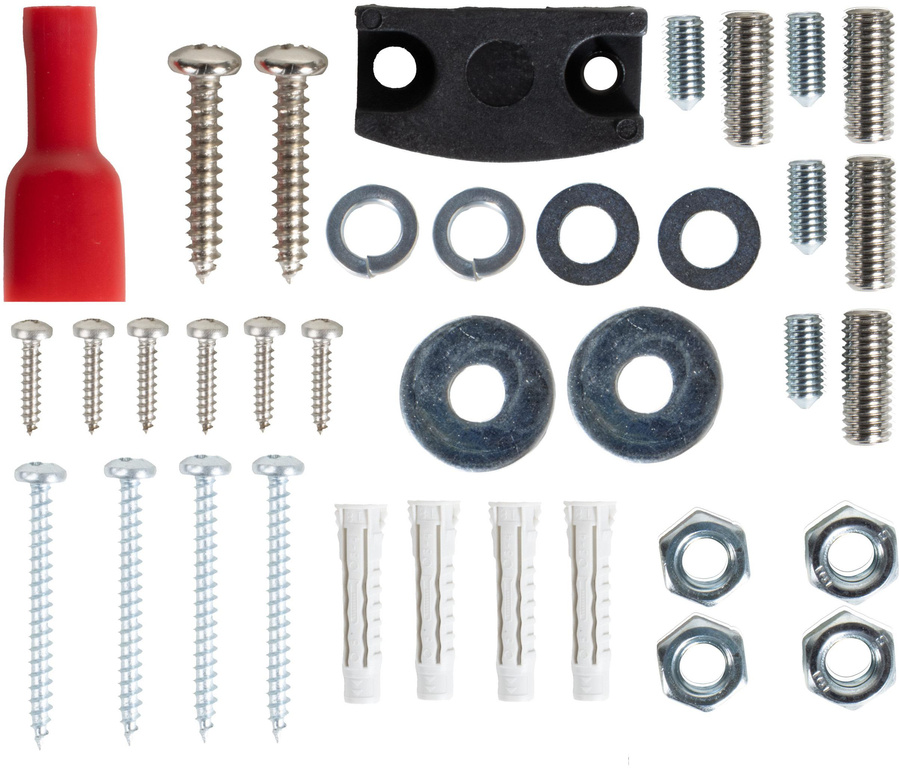

  • Set of mounting accessories

  ---

  Key features

  • Built-in RBA3R10 BlueBus control panel - simplified installation and enhanced features

  • Wicket function - partial opening of the gate for pedestrians or cyclists

  • Parameter adjustment - force, speed and mode of operation (6 levels)

  • Energy saving mode (stand-by) - reduced power consumption when the device is not working

  • Smooth operation - soft start and slowdown when closing

  • Emergency power supply - possibility to connect PS124 battery (option)

  ---

  Description

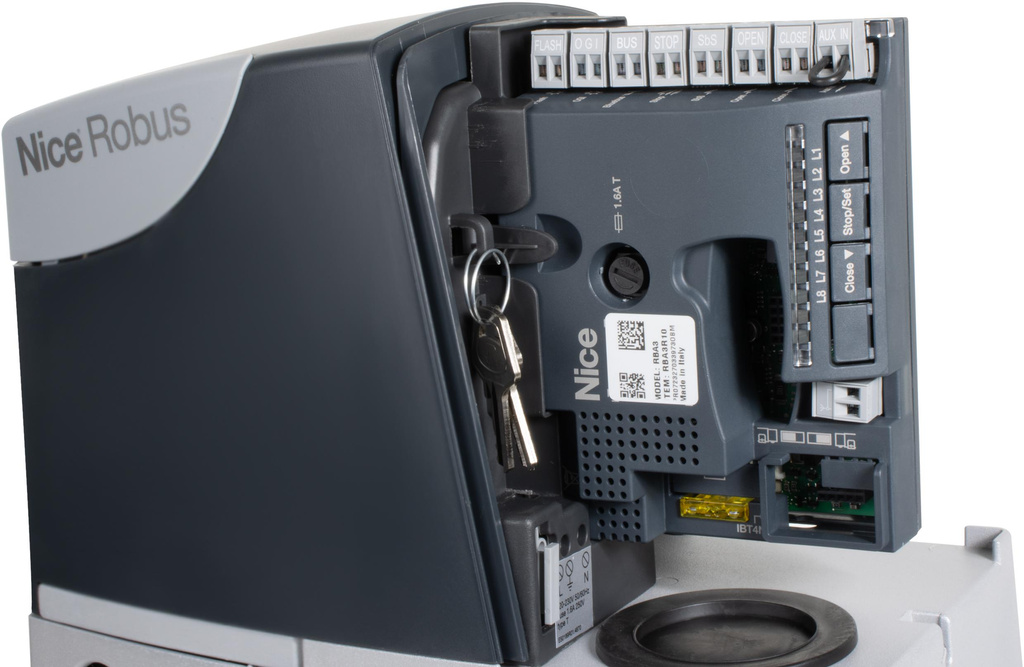

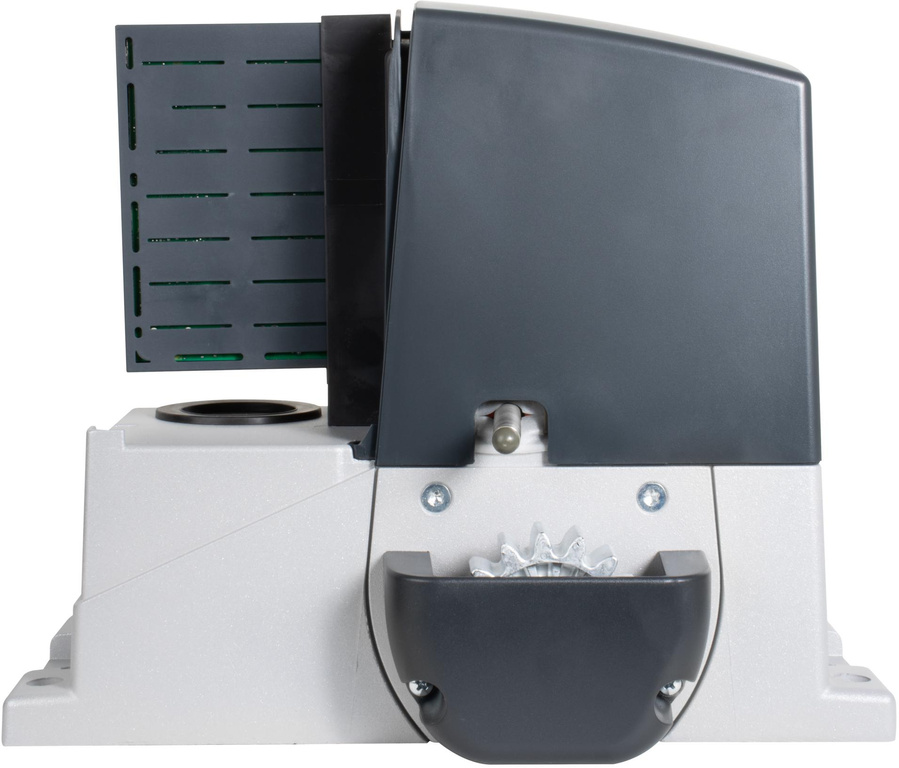

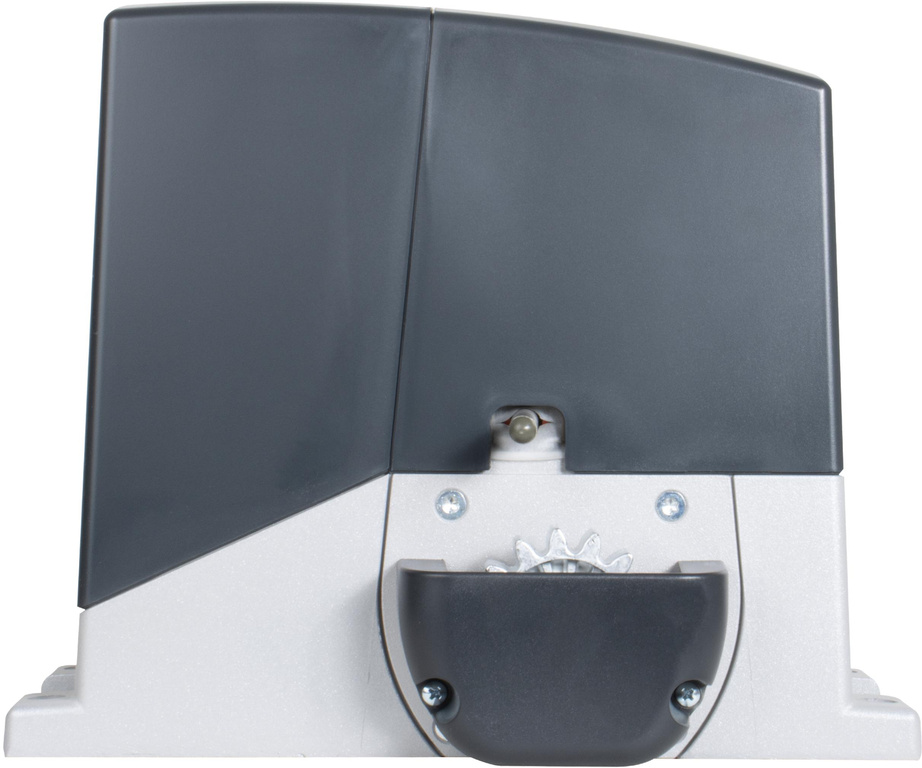

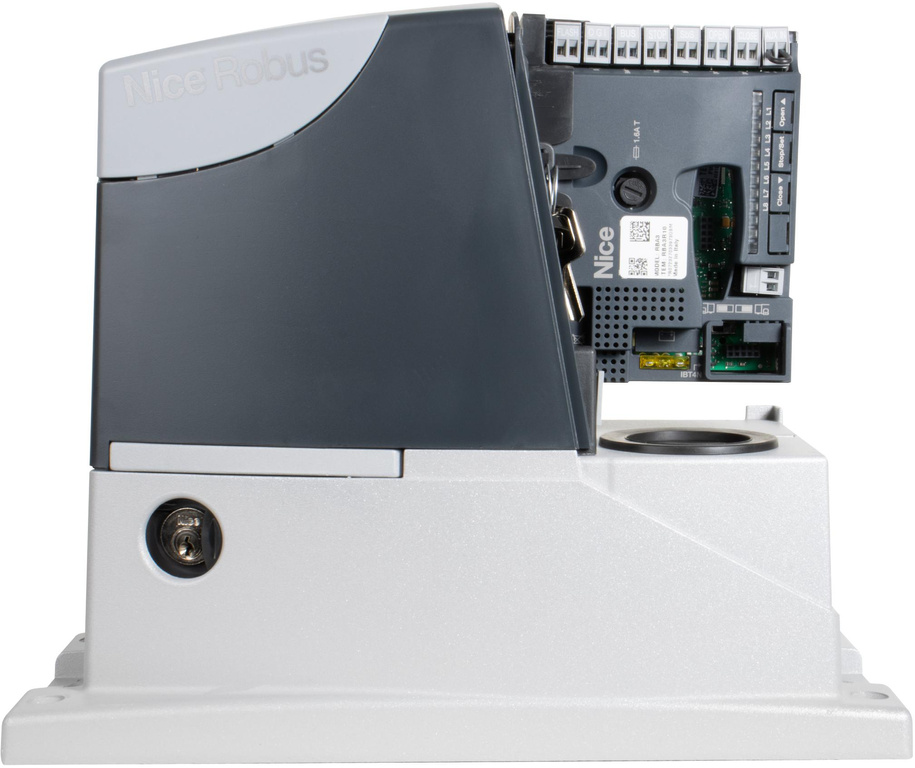

  Robus 400 operator is a modern and durable solution for the automation of sliding gates, equipped with a reliable control unit RBA3R10.
  Thanks to the bronze and steel gearbox used, the device is characterized by an exceptional service life and operation free of unnecessary vibration and noise.
  Ideal for demanding users looking for robustness and convenience.

  ---

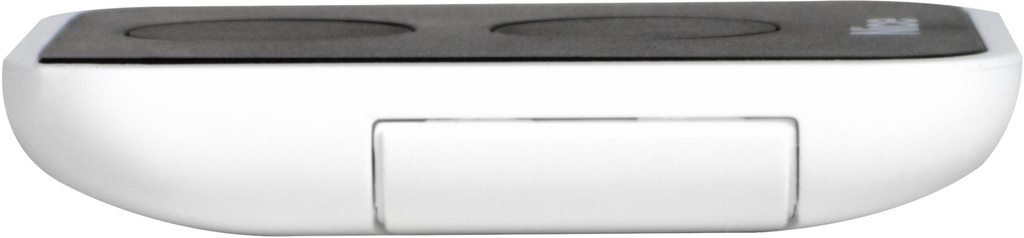

  Remote controls Nice MyGO4

  • 4-channel 433.92 MHz remote control with O-Code coding

  • Works with installations based on: SMX2R, OXIBD, Proxima NW1 FL, NW2 FL, NMx FL

  • Replacement for: ON2E, ON4E, INTI2, FLO2RE, FLO4RE

  • Can be programmed using MyNice Pro application and Pro-View interface

  ---

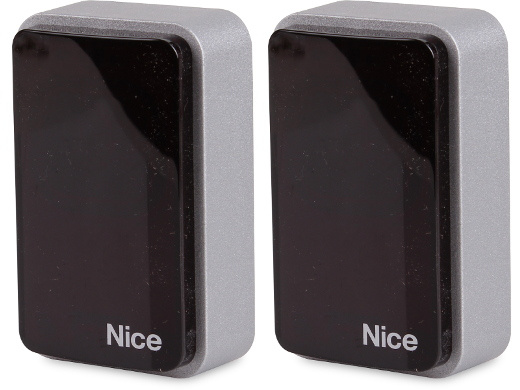

  EPMB BlueBus photocells

  • Range: up to 30 meters

  • Polycarbonate housing - resistant and aesthetically pleasing

  • Can be mounted vertically or horizontally

  • BlueBus technology - connection with only 2 wires

  ---

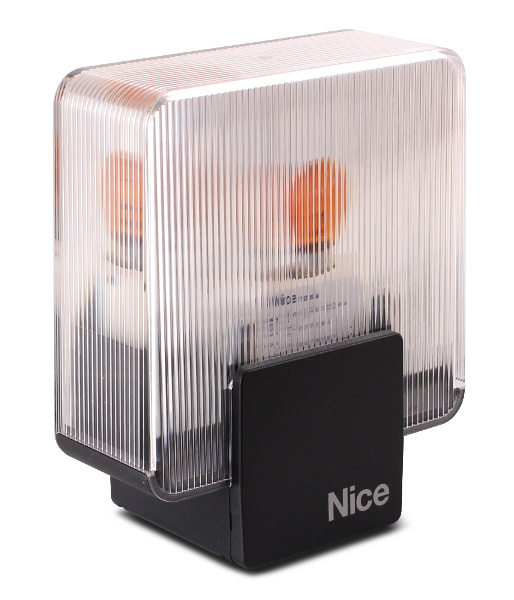

  LED warning lamp Nice ELDC 12-36V

  • Power supply: 12-36V

  • Built-in 433.92 MHz antenna - extends remote control range

  • Can be mounted vertically or horizontally

  • Impact-resistant housing

  • Energy efficient - up to 80% lower consumption thanks to LED technology

  ---

  Technical specification

  Parameter	Value
  Maximum gate length	8 m
  Maximum gate weight	400 kg
  Power supply / motor supply	230 V / 24 V
  Current consumption	1,1 A
  Power	250 W
  Traverse speed	0.34 m/s
  Maximum starting torque	12 Nm
  Force	400 N
  Protection class	IP44
  Working temperature	-20°C to +50°C
  Dimensions	330 × 195 × 277 mm
  Weight	8 kg
  Control panel	RBA3/C
  Cycles per hour	up to 20
