Beninca KBILL4024.PM TRUST 24V - drive for double-leaf gates up to 8 m
KompLetny set of automation for double-leaf gates with the entrance light up to 8 m (up to 4 m / 300 kg per leaf). Telescopic actuators BILL4024 (24 V DC) with TRUST control panel provide fast opening (approx. 11 s / 90°), intensive operation and a high level of security
- 24 V DC - intensive operation (up to 1180 cycles/day), smooth releases.
- Safety - photocells, amperometric protection, encoder inputs.
- Convenience - TO.GO2VA remote control (ARC 433.92 MHz), gate function, self-learning.
- Durability - IP54, 400 mm screw pitch, weatherproof.
- Smart - ProUP programming, ADVANTOUCH, KNX integration (X.BE).
Purpose
Automation of backyard and residential swing gates, where you count:
- range up to 4 m / 300 kg per leaf (up to 8 m of light in total),
- frequent, smooth operation (24 V DC, intensive cycle),
- simple operation and configuration, wicket function, secure closing.
Key benefits
- Speed - about 11 s to 90°.
- Energy efficiency - ESA+ reduces power consumption at rest.
- Full control - 2 relay outputs, cycle counters, service reminders.
- Expandability - KNX (X.BE), ProUP, ADVANTOUCH, virtual encoder.

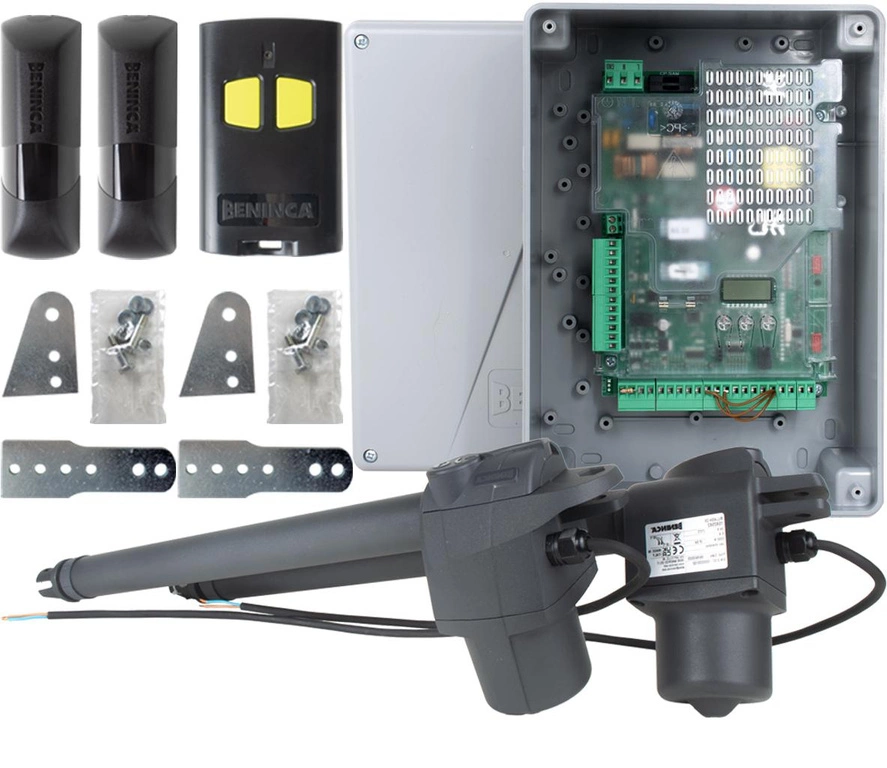

The set includes

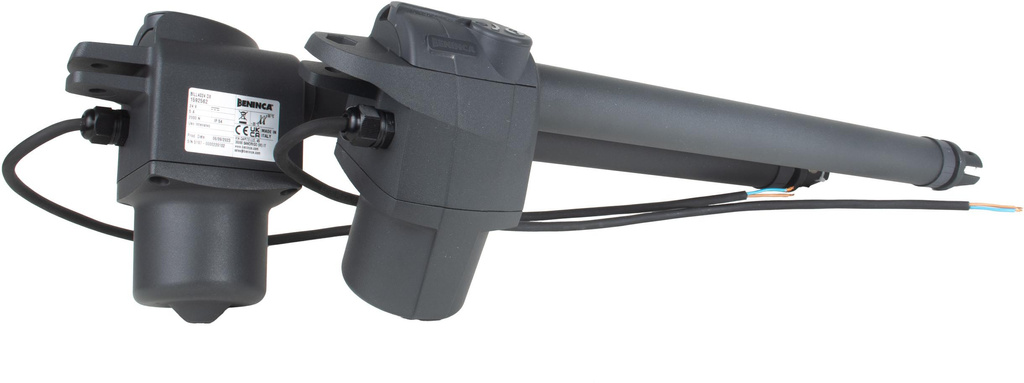

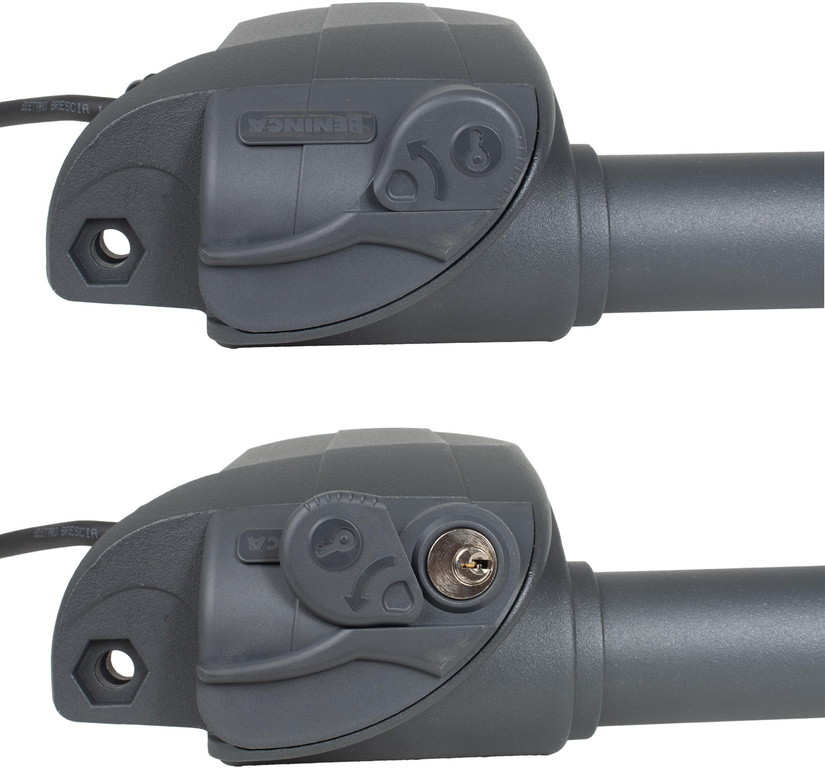

- BILL4024 right-hand actuator (9592562)
- Actuator BILL4024 left (9592563)

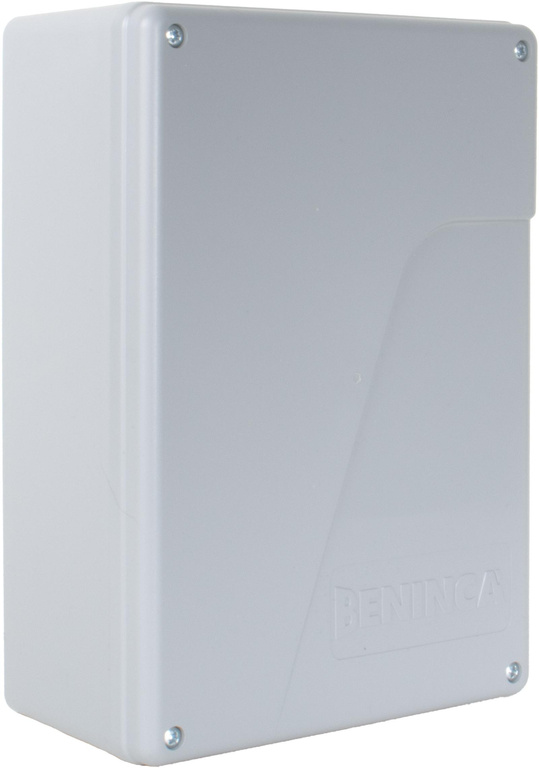

- TRUST control panel with housing

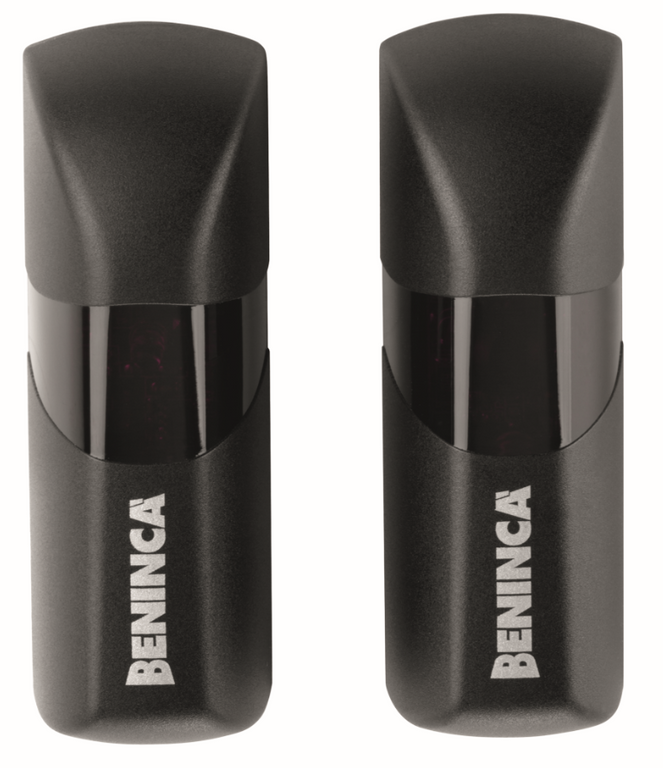

- Pair of photocells Pupilla.T

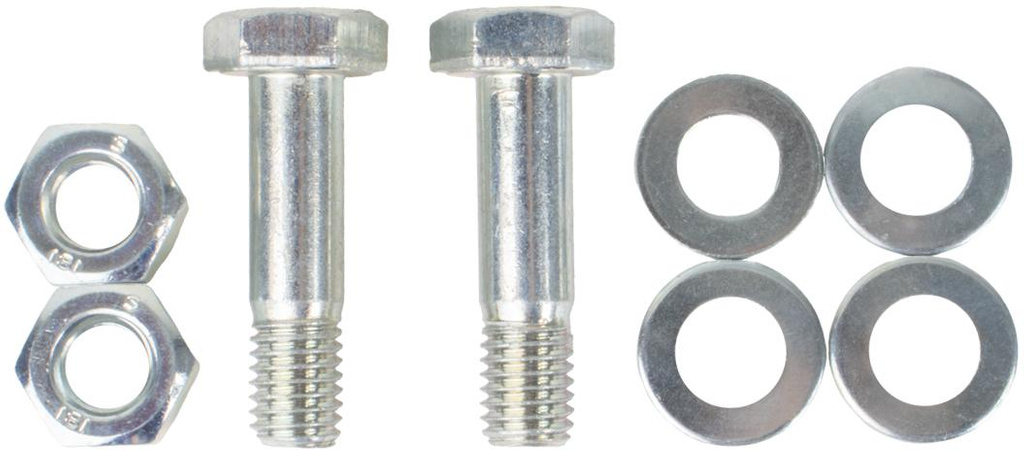

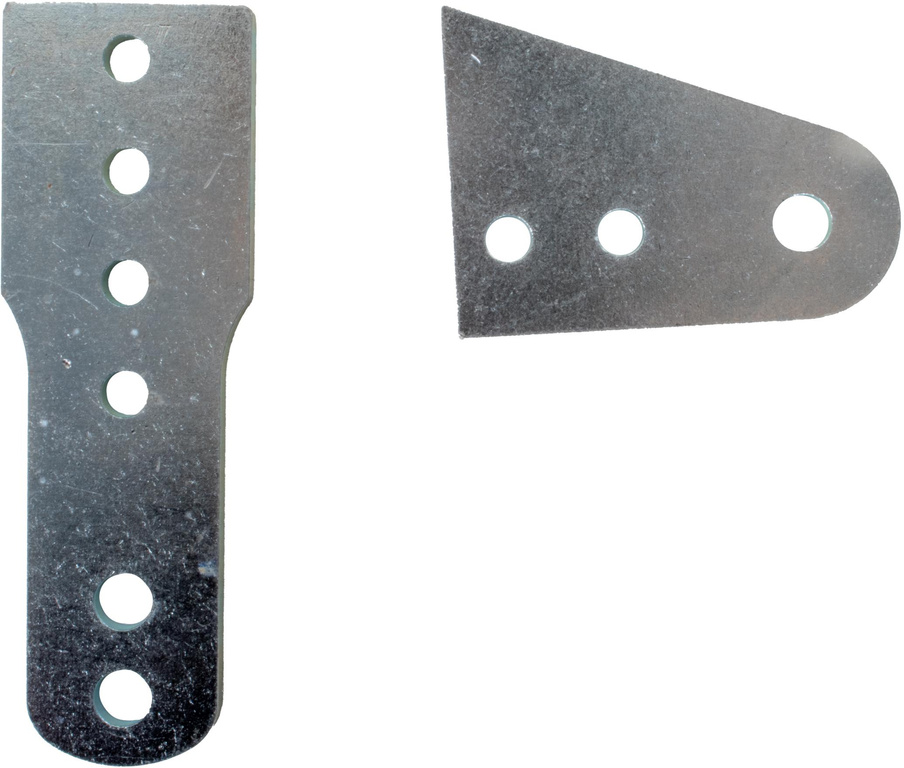

- Welding brackets, mounting accessories

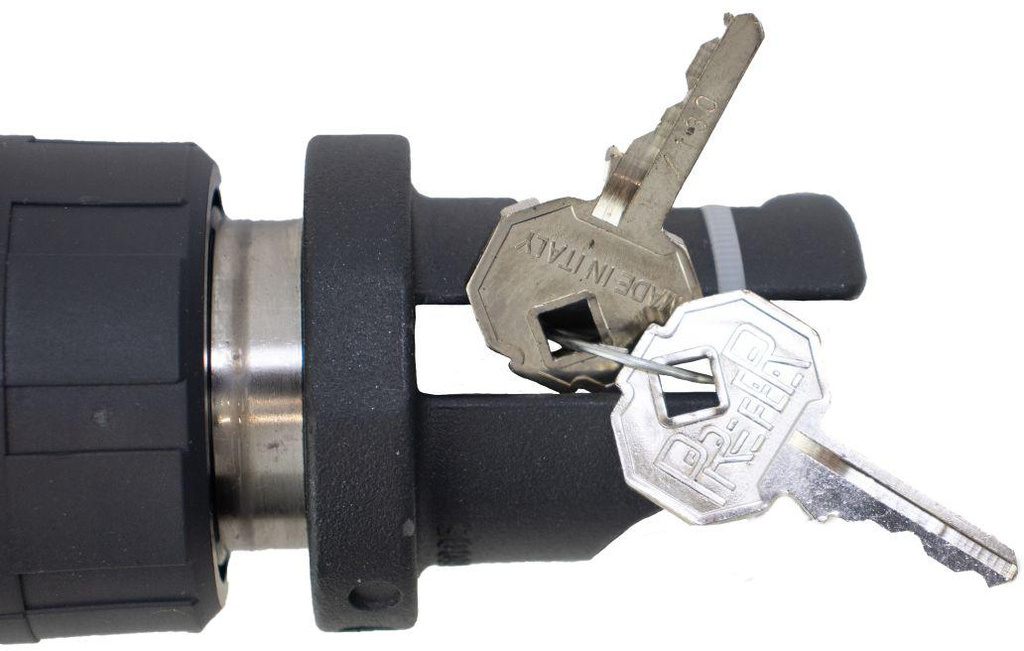

- 2 declutching keys (manual unlocking)

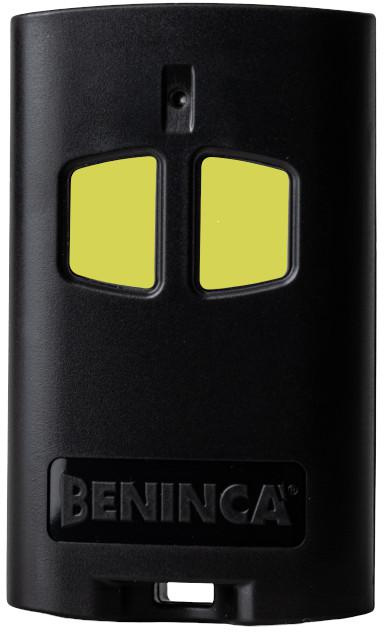

- TO.GO2VA remote control (2-channel, ARC 433.92 MHz)
- Manual, warranty card (Beninca)

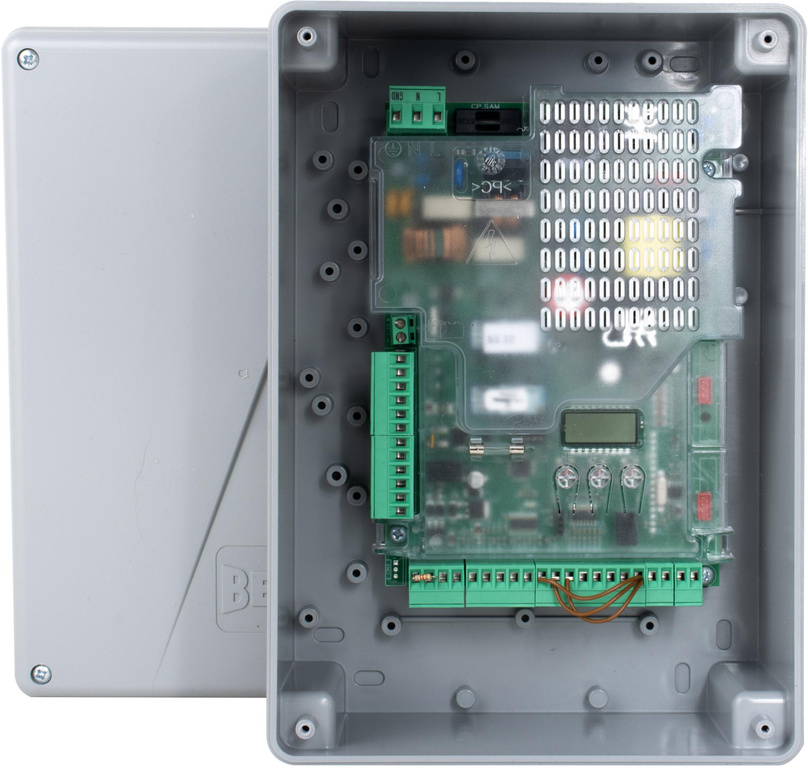

TRUST control panel - key features
- Built-in 433.92 MHz radio receiver, 64 ARC codes.
- Separate encoder inputs for each motor + virtual encoder.
- Inputs: open, close, step-by-step, gate, stop; photocell test.
- 2 relay outputs; service light, position indicator, second radio channel.
- Self-learning, independent release on opening/closing.
- Crush protection (amperometric + encoder), access password.
- KNX integration (2 serial inputs, X.BE module), ProUP programming, ADVANTOUCH remote control management.
- ESA+ - energy saving mode; cycle counter; service reminders.
Technical data
| Gate type | Double-leaf (swing) |
|---|---|
| Max. entry light | 8 m (up to 4 m per leaf) |
| Max. leaf weight | 300 kg |
| Power supply for the control panel | 230 V AC (50-60 Hz) |
| Power supply for motors | 24 V DC |
| Current | 5 A |
| Maximum force | 2000 N |
| 90° opening time | approx. 11 s |
| Duty cycle | up to ~1180 cycles/day |
| Screw travel | 400 mm |
| Protection class | IP54 |
| Temperature range | -20 °C to +50 °C |
| Weight of the actuator | approx. 5.2 kg |
| Weight of the set | approx. 12 kg |
| Installation note | Central stopper required |
Beninca KBILL4024.PM TRUST 24V - fast, powerful and flexible set for double-leaf gates up to 8 m: 24 V DC, IP54, photocells, ARC remote control, extensive control panel functions, KNX integration readiness.
