KUSTOS BFT Ultra BT B25 KIT for swing gates

KUSTOS BFT Ultra BT B25 KIT for swing gates (MDM 2614871)

Modern and compLety automation kit BFT KUSTOS Ultra BT B25 KIT is designed for swing gates with leaf length up to 3 m and weight up to 400 kg. Equipped with the D-Track system, Thalia BT A80 DUO control unit and magnetic limit switches, it ensures safe, smooth and quiet gate operation.

• 24V drive - energy-efficient and safe

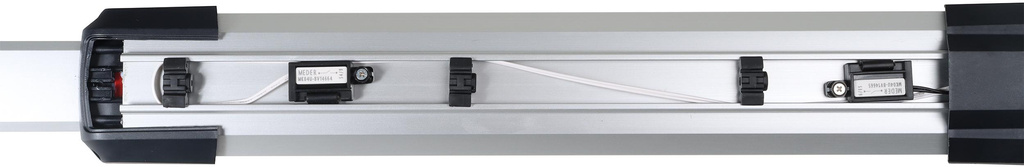

• Magnetic limit switches with autoSET function
• D-Track system - dynamic torque control
• Modern mounting with magnetic pin
• Compatible with U-Link technology

Purpose

The KUSTOS Ultra BT B25 set is designed for the automation of swing gates mounted on steel or masonry posts, with a maximum hinge extension of up to 14 cm. Thanks to the design of the actuator with a shielded pull bolt, the device can be mounted low to the ground - an ideal solution in areas exposed to dust, mud and rain.

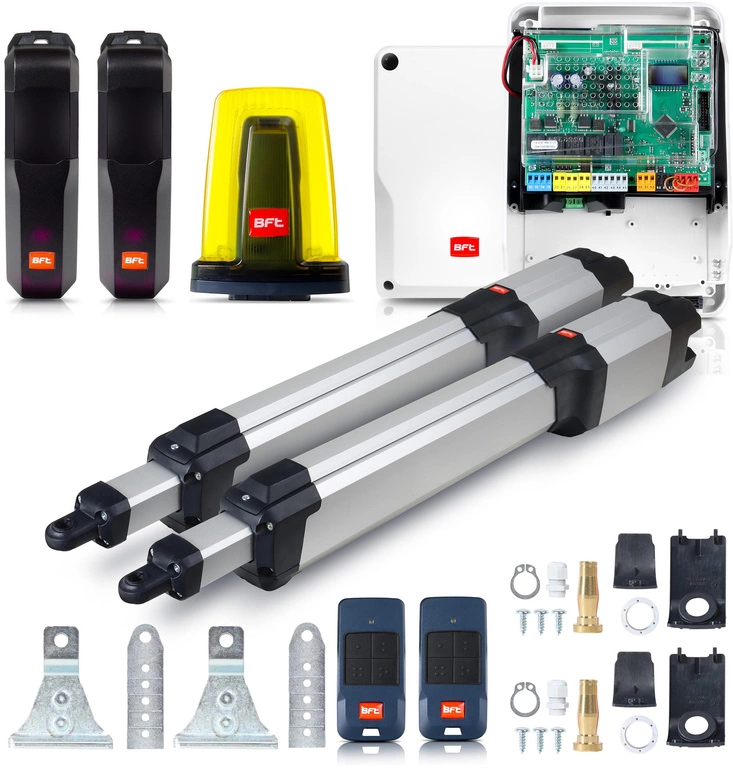

The set includes

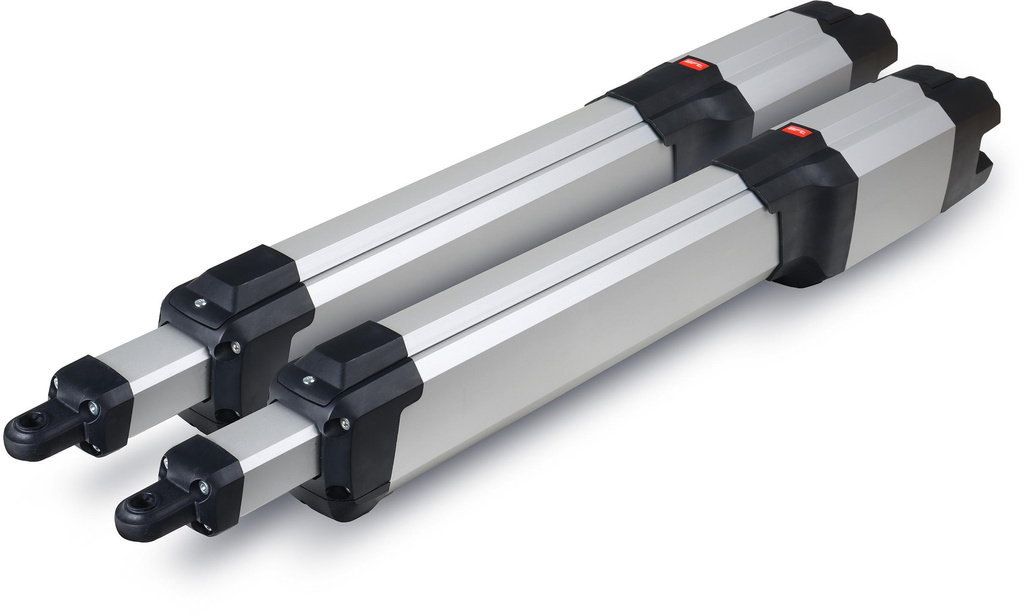

• 2 × Kustos BT B25 actuator

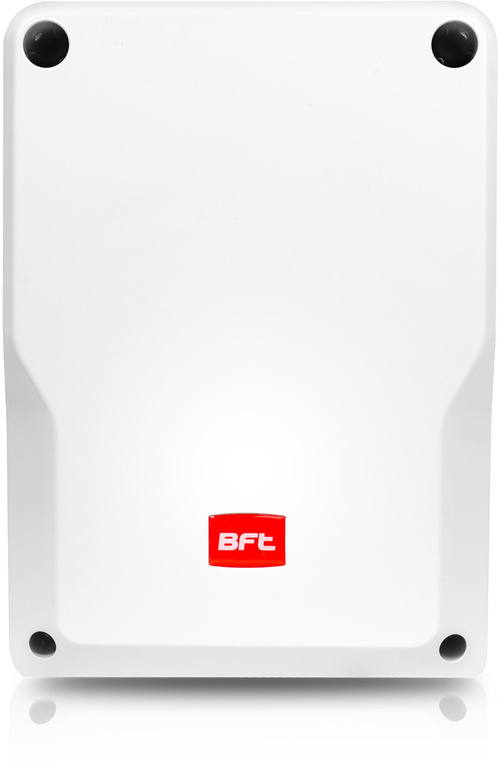

• Thalia BT A80 DUO control panel with housing
• A pair of Compacta A20-180 photocells

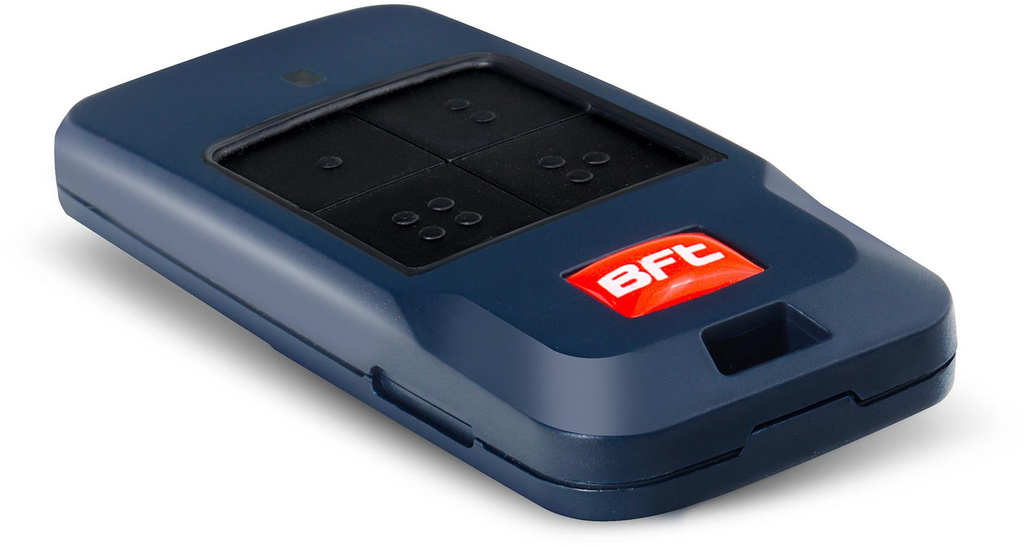

• 2 × Mitto COOL C4 remote control

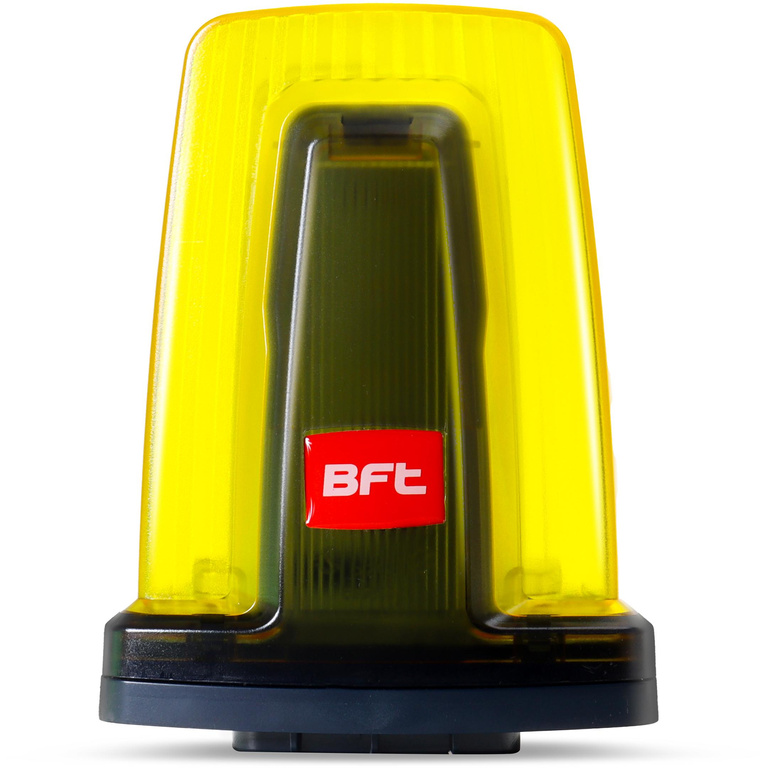

• Radius LED warning lamp BT A R1
• KompLet mounting accessories
• Clutch keys

Note: Standard mounting brackets (straight) are included. SFR mounts must be purchased separately.

Key features

• 24V DC powered motor
• Magnetic limit switches

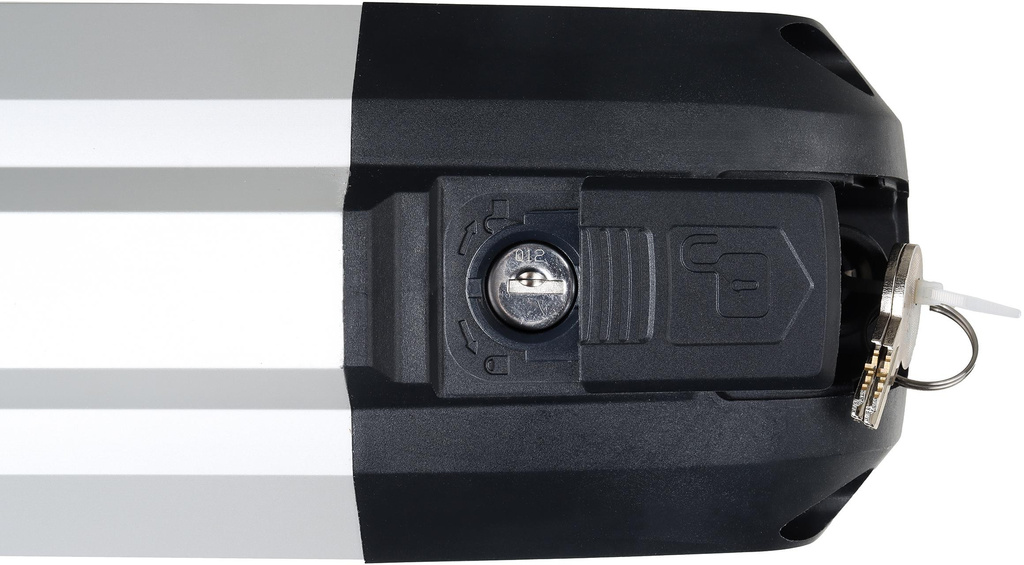

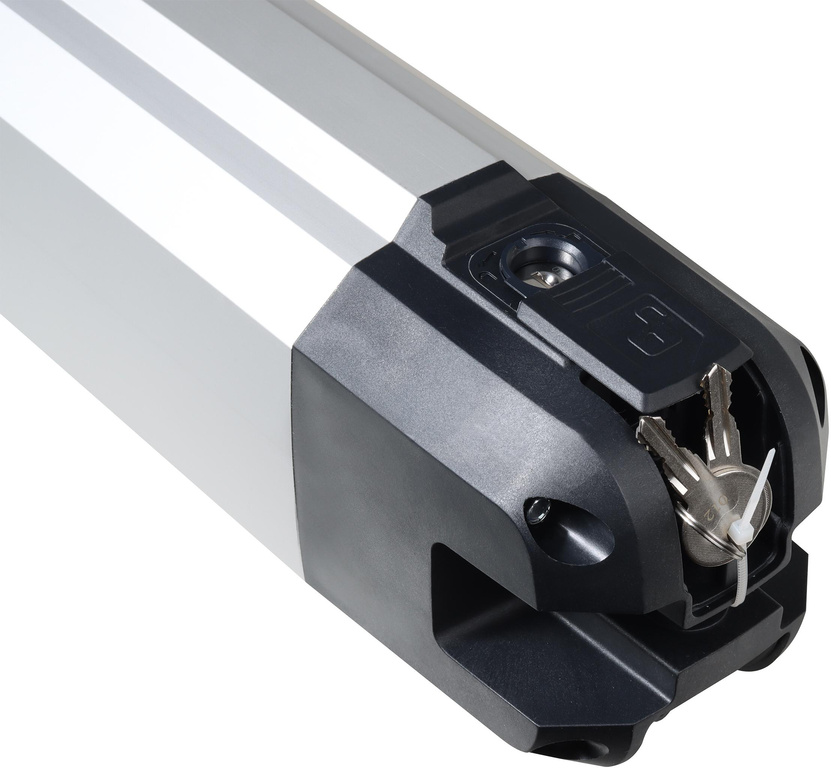

• Secure decoupling with personalized key
• Amperometric obstacle detection
• High frequency of use - up to 30 cycles/hour
• Aesthetic and durable mounting with magnetic pin
• D-Track system - intelligent torque management

Description

The BFT KUSTOS BT B25 actuators are designed for swing gates with leaf lengths up to 3 meters and weights up to 400 kg. The drive has magnetic limit switches, autoSET function for easy calibration, and electronic obstacle detection system. Combined with the Thalia BT A80 DUO control panel, the drive offers advanced security and automation functions, including wicket mode and automatic closing after passing through the photocell line.

The innovative magnetic pin mounting system makes installation faster and the appearance more aesthetically pleasing. The actuators are sealed, weatherproof and designed for heavy use.

D-Track system

The D-Track system analyzes the force required to move the gate in real time and dynamically adjusts it to guarantee maximum safety and smooth operation - regardless of temperature or mechanical wear. This solution eliminates the risk of false obstacle detection, while extending the life of the entire assembly.

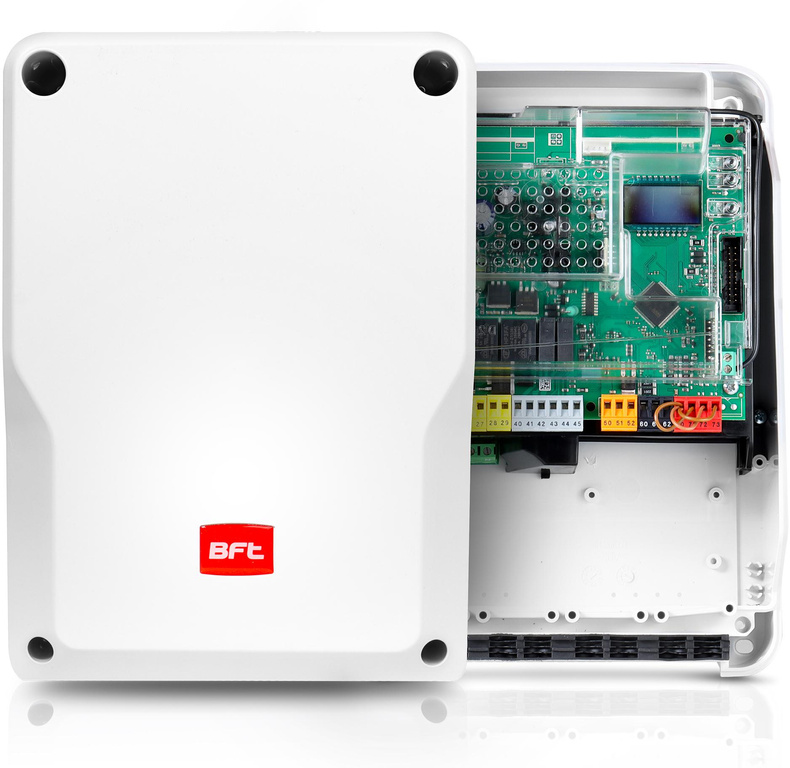

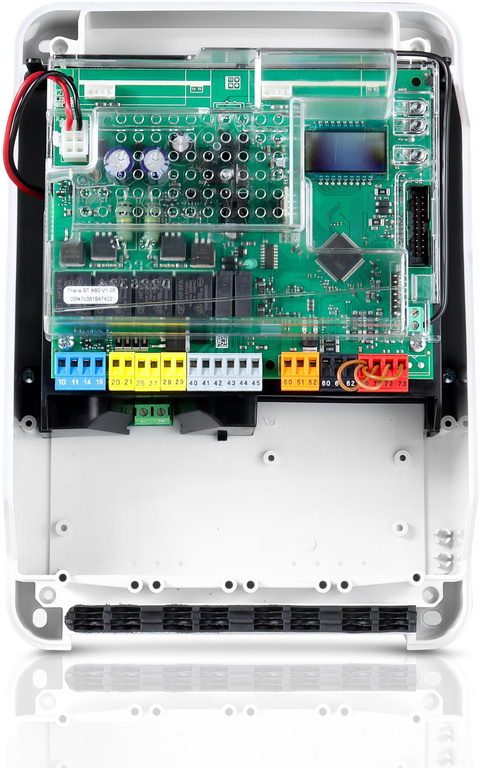

Thalia BT A80 DUO control panel

Thalia BT A80 DUO control panel with LCD display supports 24V actuators such as KUSTOS BT, PHOBOS BT, GIUNO, or ELI 250 N BT. It has a built-in radio receiver, memory for 128 remote controls, and support for wicket and automatic closing functions. It also allows integration with the U-Link system after connecting the B-EBA module.

• Electric lock operation: YES
• Automatic locking: YES
• Wicket function: YES
• Support for 2 lines of photocells: YES
• Photocell and security strip test: YES
• Maintenance signaling: YES
• Standby mode < 0.5W
• 2 U-Link inputs for B-EBA modules

Technical specifications

Summary

BFT KUSTOS Ultra BT B25 KIT is an ideal kit for modern residential gates. It combines quiet operation, security and aesthetic design. Thanks to D-Track technology, magnetic limiters and Thalia BT A80 DUO control panel, it ensures reliable operation for many years.
