KUSTOS BFT Ultra BT B40 KIT for swing gates
- A compLet 24-volt set for swing gates weighing up to 700 kg and up to 4 m in length.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
KUSTOS BFT Ultra BT B40 KIT for swing gates (MDM 2614874)
Professional automation kit BFT KUSTOS Ultra BT B40 KIT designed for swing gates with leaf lengths up to 4 m and weights up to 700 kg. Equipped with D-Track system, Thalia BT A80 DUO control unit and magnetic limiters. The set ensures reliable operation, safety and convenience of daily use.
- 24V drive - safe and energy efficient
- Magnetic limit switches - precise positioning
- D-Track system - dynamic torque control
- Support for autoSET function - automatic positioning of limit switches
- Compatible with U-Link technology
Purpose
KUSTOS Ultra BT B40 KIT is dedicated to the automation of swing gates with leaf lengths up to 4 m and weights up to 700 kg. Ideal for installation on steel or masonry posts, also in areas exposed to dust and mud - thanks to the pull bolt cover, low installation is possible. The maximum distance from the axis of the hinge to the edge of the post is 14 cm.

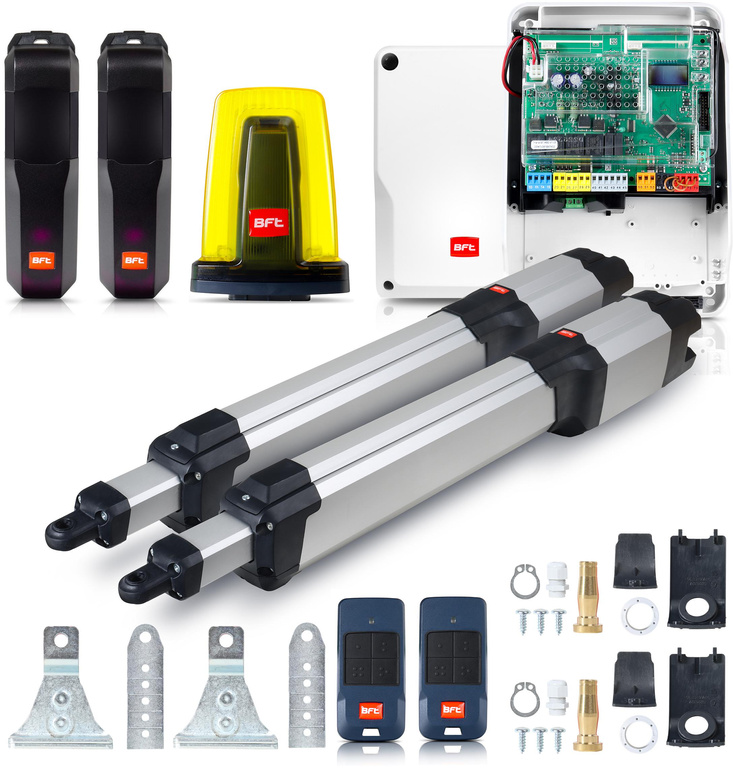

The set includes

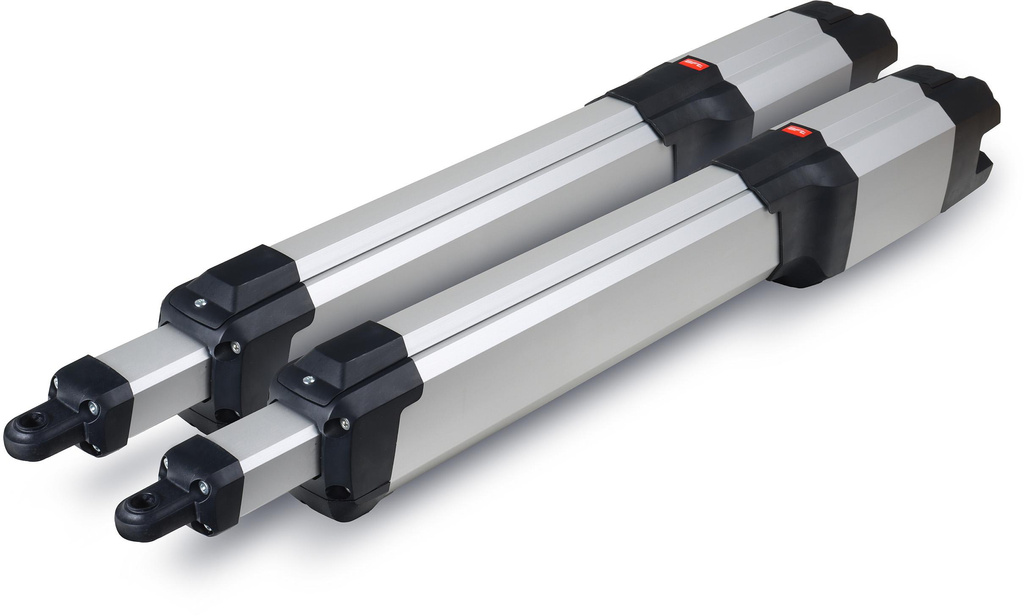

- 2 × Kustos BT B40 actuator
- Thalia BT A80 DUO control unit with housing
- Pair of photocells Compacta A20-180

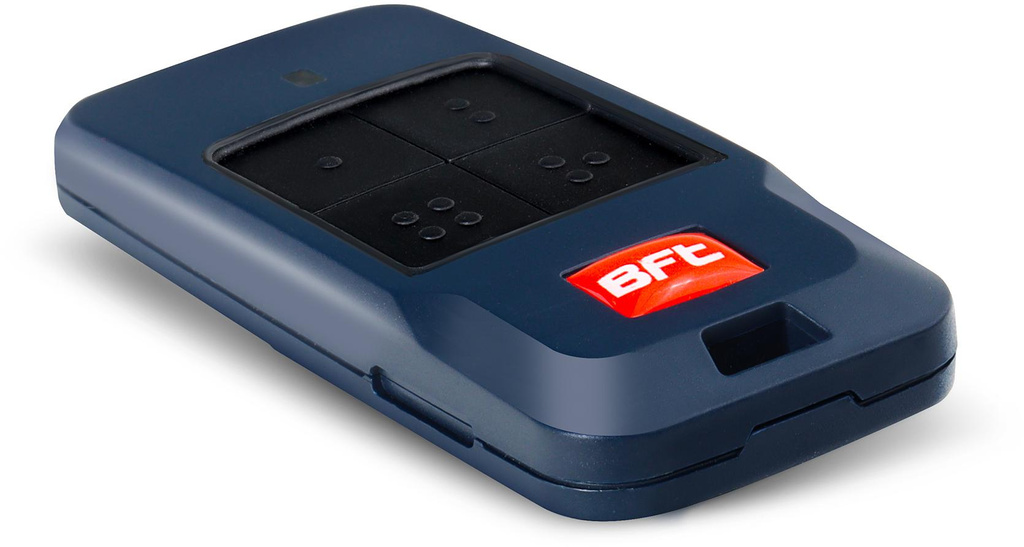

- 2 × Mitto COOL C4 remote control

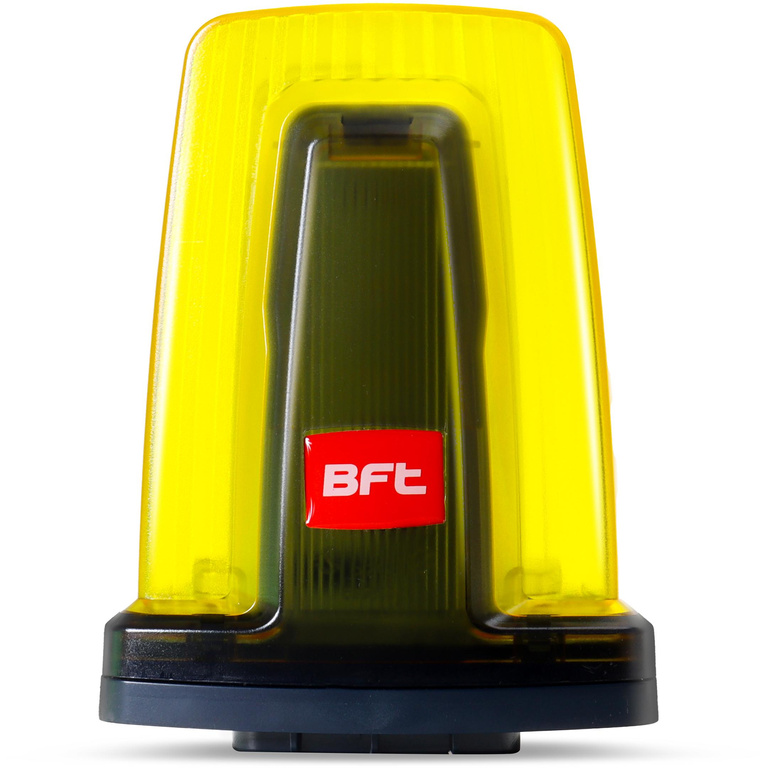

- Radius LED warning lamp BT A R1
- KompLet mounting accessories
- Clutch keys
Key features

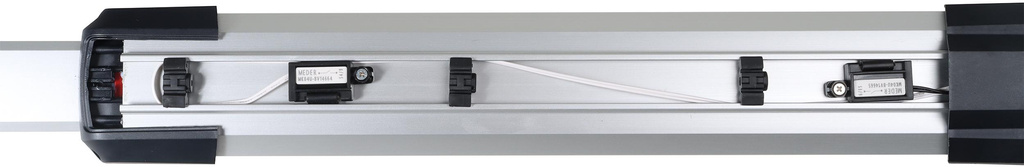

- Magnetic limit switches (top)
- Amperometric obstacle detection
- Mechanical locking and personalized key
- AutoSET with vibration indication when setting position
- Frequency of operation up to 30 cycles/hour
- IPX4 protection - resistant to outdoor conditions
- U-Link system support via B-EBA expansion card
Description

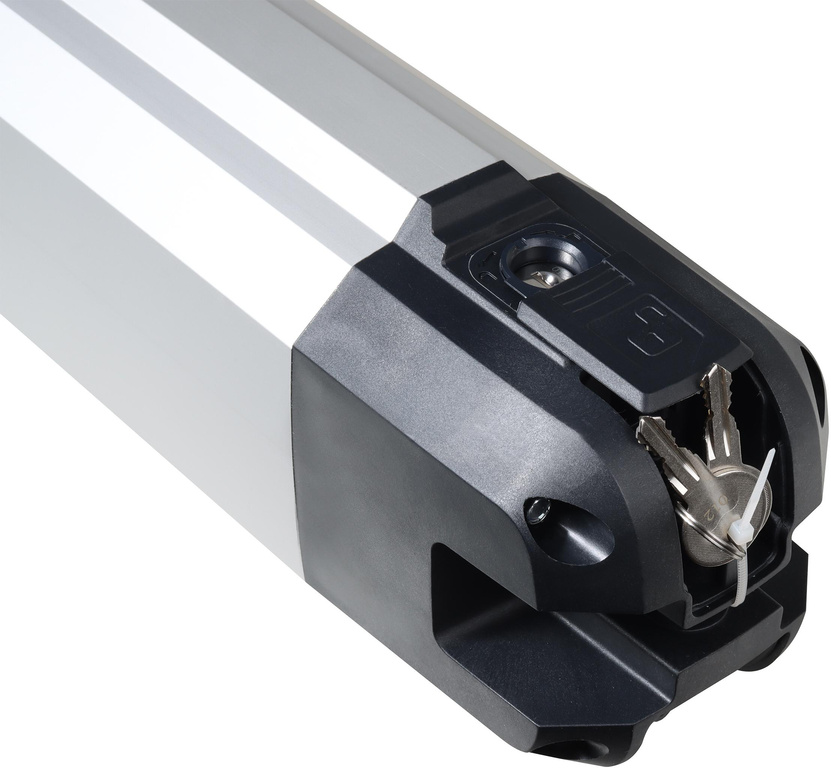

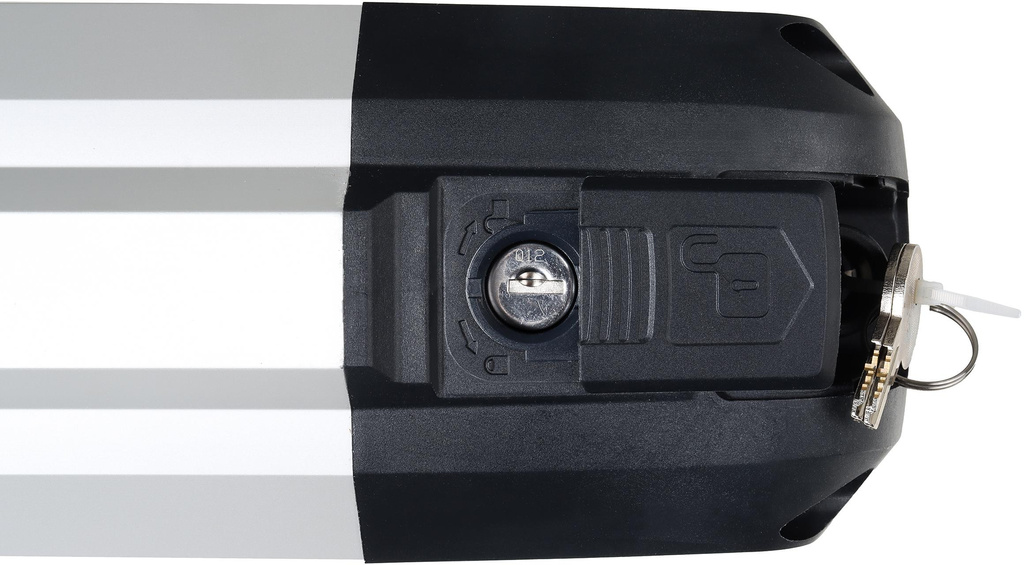

Kustos BT B40 actuators are equipped with magnetic opening and closing stops for faster and more precise installation. Declutching with a personalized key guarantees security. D-Track optimizes the drive force according to the operating conditions, guaranteeing the safety of users and the long life of the mechanism.
D-Track system
The D-Track system dynamically adjusts motor torque to current operating conditions, responding to changes in temperature, resistance and wear. Thanks to microprocessor-based data analysis, the system ensures maximum safety and smooth movement, while making the installation certification process easier for the installer.

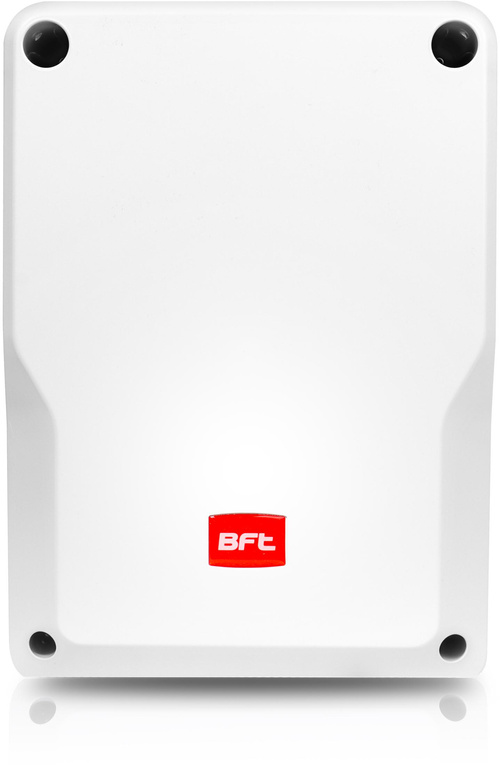

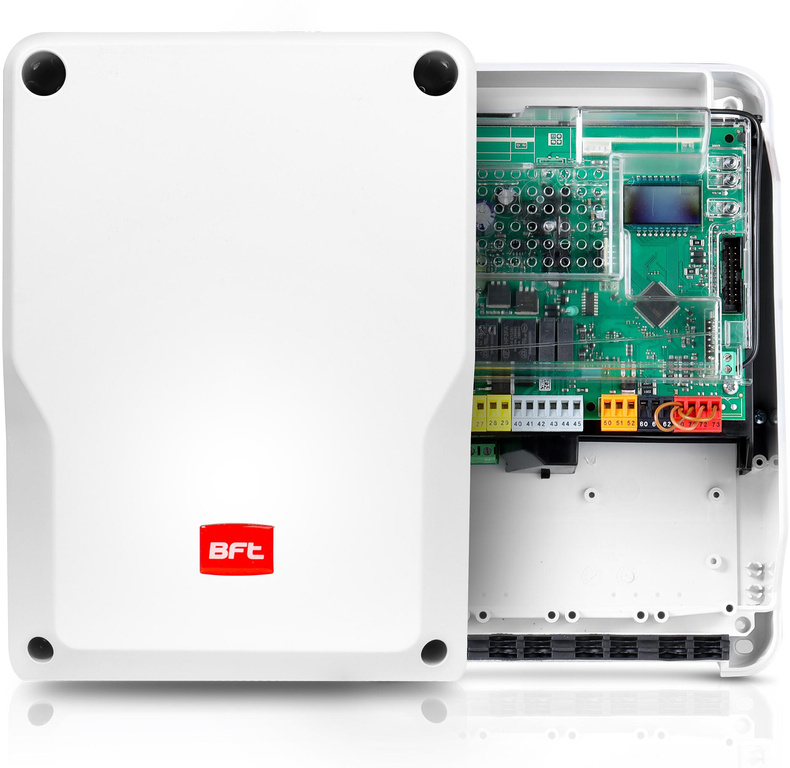

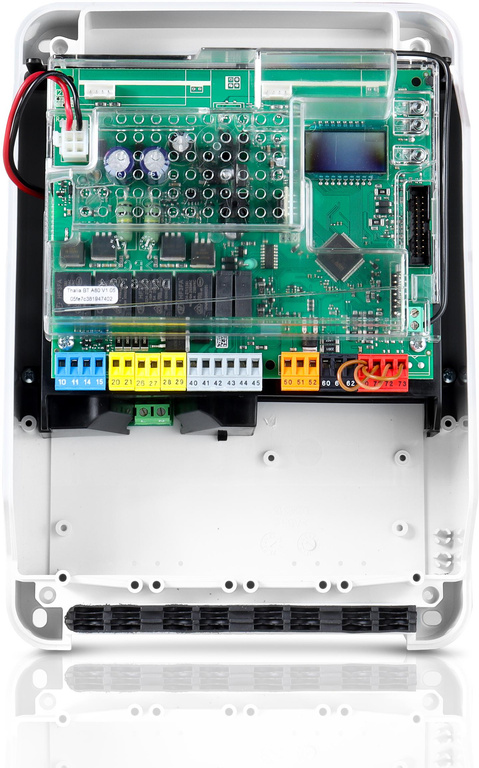

Thalia BT A80 DUO control panel
The Thalia BT A80 DUO control panel is equipped with an LCD display, built-in radio with dynamically variable code and memory for 128 remote controls. It offers automatic closing functions, photocell test, zone lighting, gate function and security edge operation. Supports two U-Link modules, allowing integration with smart home systems.
Technical specifications
| Power supply | 230V ±10% 50Hz |
|---|---|
| Motor | 24V DC |
| Max. wing length | 4 m |
| Max. wing weight | 700 kg |
| Opening time | 16 s |
| Opening angle | 124° |
| Limit switches | Magnetic |
| Obstacle detection system | D-Track |
| Operating temperature | -20°C ÷ +55°C |
| Degree of protection | IPX4 |
| Usage mode | 30 cycles per hour |
| Actuator weight | 9 kg |
| AutoSET function | Yes |
| Wicket function | Yes |
| Slowdowns | Yes |
| Unlocking | Personalized key |
Summary
BFT KUSTOS Ultra BT B40 KIT is a compLetne and advanced solution for swing gate automation. It offers high operating culture, security and automatic programming and obstacle detection functions. Ideal for modern residential and estate installations.
FAQ (customer)
- Q: Does the set include all mounting accessories? A: Yes, the compLete mounting hardware is included.
- Q: Can it be installed on wide pillars? A: Yes, suitable for masonry or steel pillars up to 14 cm hinge offset.
- Q: Is it compatible with smart home systems? A: Yes, via optional U-Link expansion cards.
- Q: Does it include obstacle detection? A: Yes, integrated D-Track electronic system.
- Q: Can the gate operate automatically after crossing photocells? A: Yes, automatic closing is supported.
FAQ (expert)
- Q: What’s the maximum recommended duty cycle? A: Up to 30 cycles per hour.
- Q: Are limit switches magnetic or mechanical? A: Magnetic, top-mounted for easy setup.
- Q: What communication protocol is supported? A: U-Link via optional B-EBA modules.
- Q: Can it be battery-powered? A: Yes, compatible with BFT BBT BAT CBOX DUO backup system.
- Q: What’s the control board power output? A: Up to 180W with configurable AUX channel.
