PHOBOS BT B40 KIT BFT PL for swing gates (R935359 00005) (2614863)
PHOBOS BT B40 KIT BFT PL for swing gates (R935359 00005) (2614863)
- PHOBOS BT B40 SMART KIT PLProduct code R935359 00005 International code 2614863 KompLetny 24-volt kit for swing gates weighing up to 700 kg and up to 4 m in length.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart
Brand
Entity responsible for this product in the EU
Somfy Sp. z o.o.More
Address:
Marywilska 34Postal code: 03-228City: WarszawaCountry: PolandE-mail: biuro@somfy.com
Symbol
2614863
Producer code
8027908783905
Series
Warranty
Set BFT PHOBOS BT B40 KIT PL for swing gates
KompLetny 24V automation kit designed for swing gates with leaf weights up to 700 kg and lengths up to 4 m. The system offers fast, precise and safe operation using D-Track technology and autoSET function.
- Supports leafs up to 4 m in length and 700 kg in weight
- Thalia BT A80 DUO control panel with memory for 128 remote controls
- D-Track system - dynamic torque control
- Magnetic limit switches and autoSET function

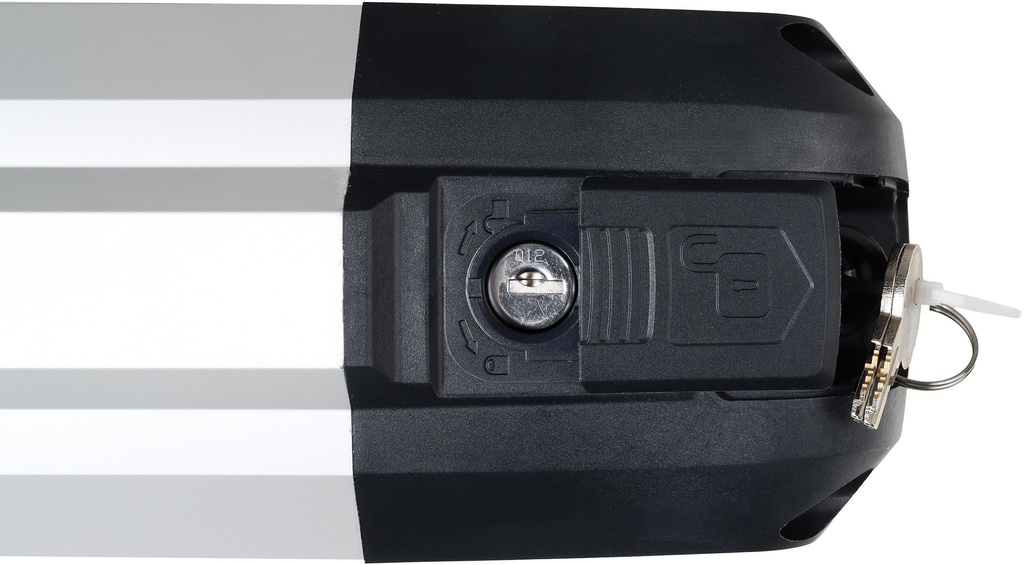

- Secure decoupling with personalized key
- Up to 80 duty cycles per day
Key benefits
The BFT PHOBOS BT B40 drive combines reliability, safety and modern automation. The D-Track system automatically adjusts the force of the drive depending on weather conditions, which ensures smooth and safe operation.
- High operating culture - quiet and smooth operation of actuators
- Electronic obstacle detection
- Built-in slowdowns when opening and closing
- Possibility to connect an electric lock and photocells
- IP X4 protection and operation in temperatures from -20°C to +55°C
Features and equipment
- D-Track system - dynamic force and torque control
- AutoSET - automatic learning of end positions
- Wicket function and automatic closing after passing the photocell line
- Expandable with U-Link technology (remote control via apLication)

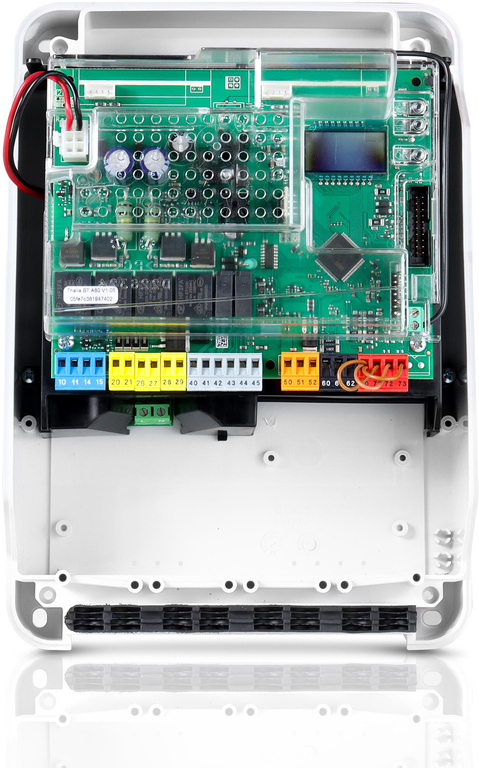

- Thalia BT A80 DUO control unit with LCD display and integrated radio receiver

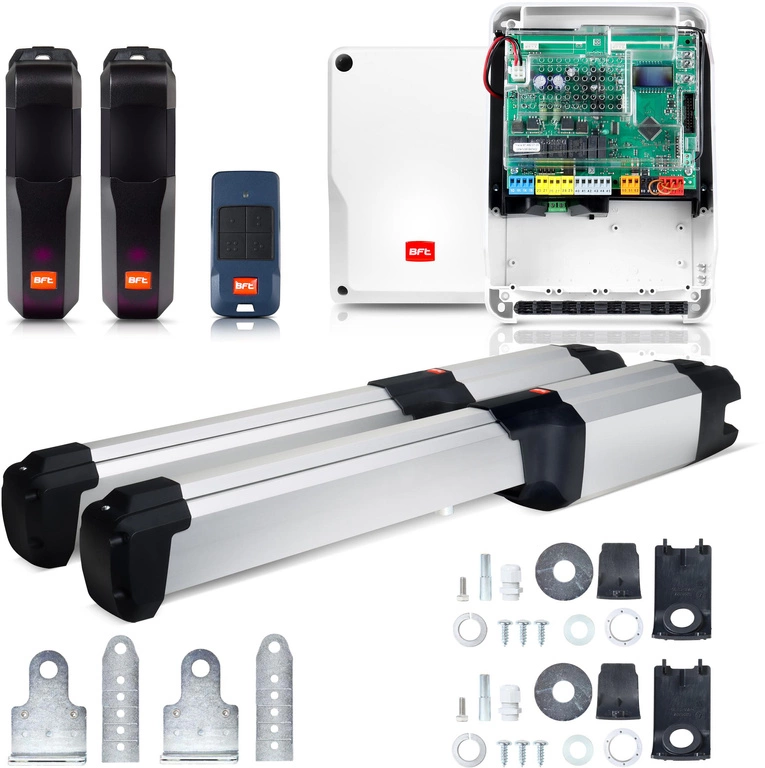

The set includes

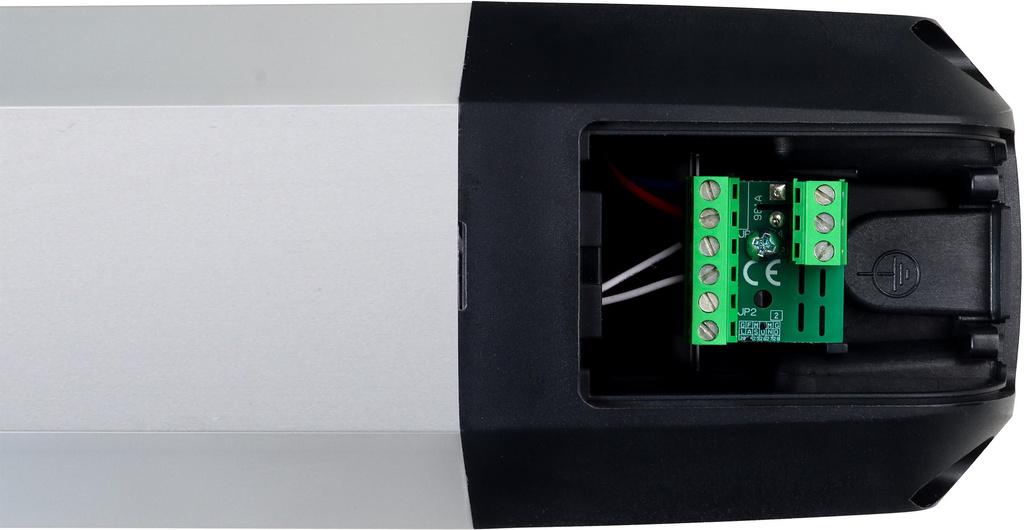

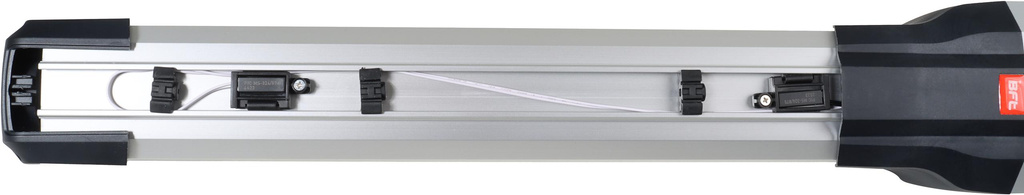

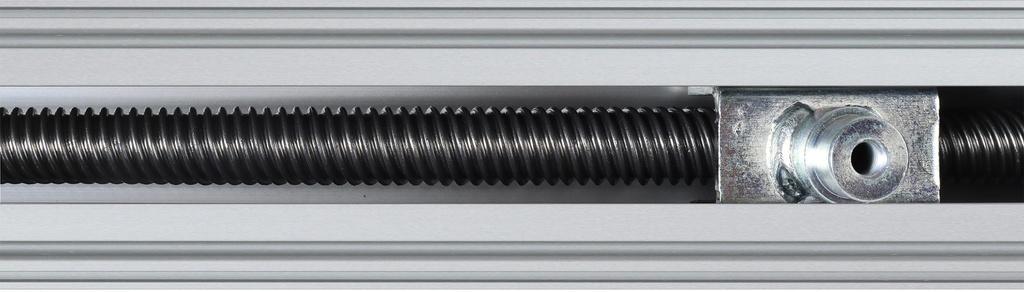

- Two actuators BFT Phobos BT B40

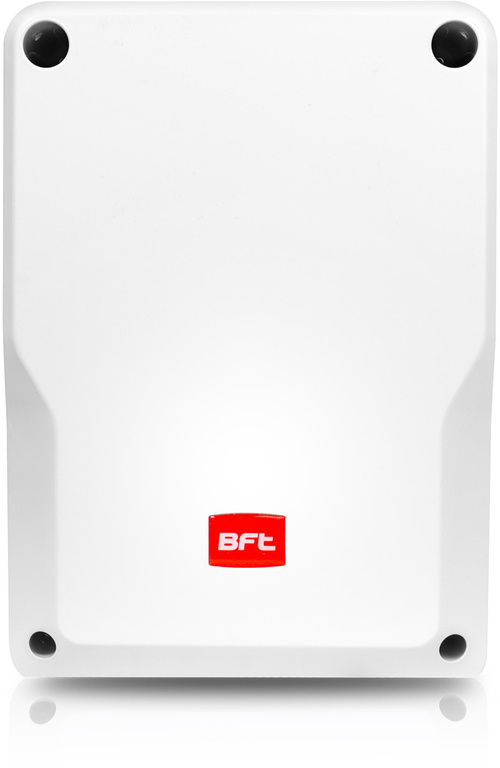

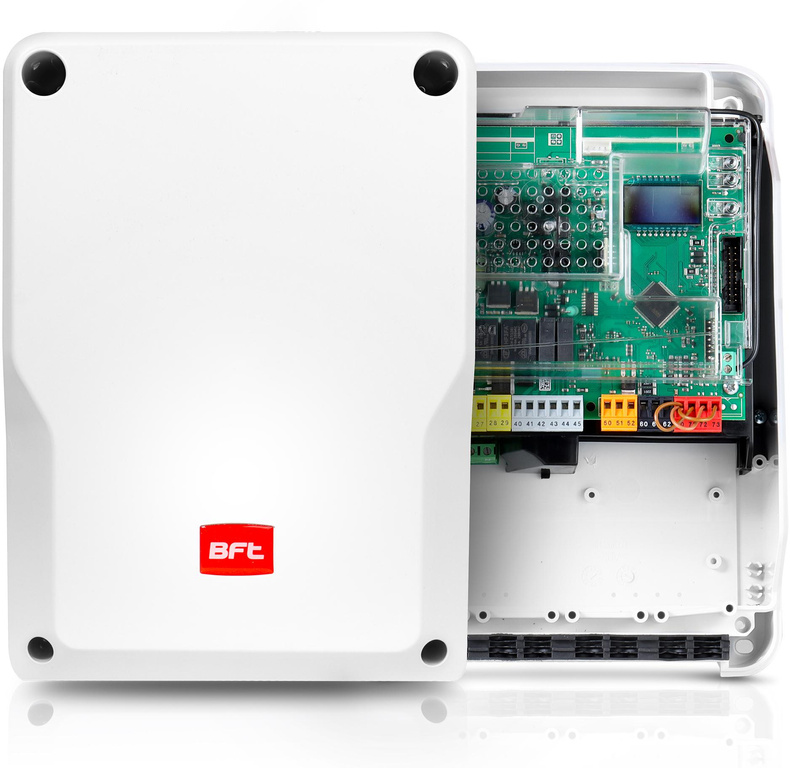

- Thalia BT A80 DUO control unit with housing

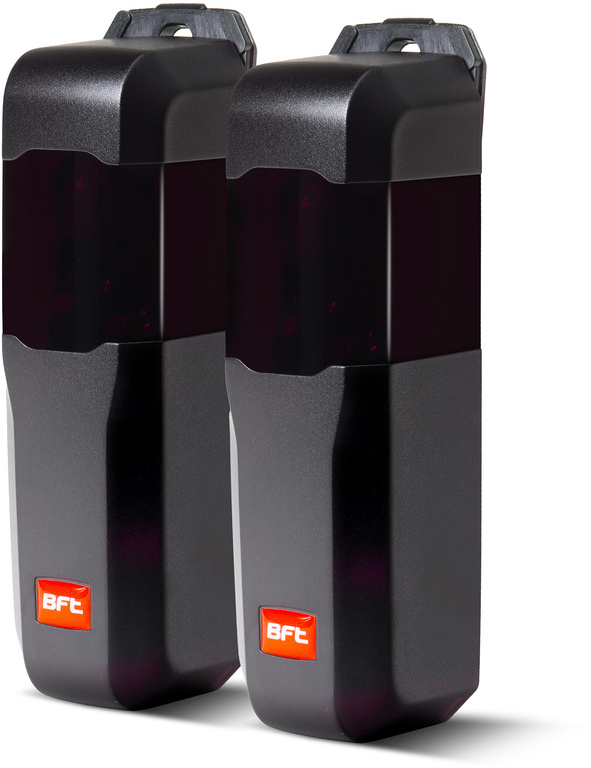

- Compacta A20-180 photocells

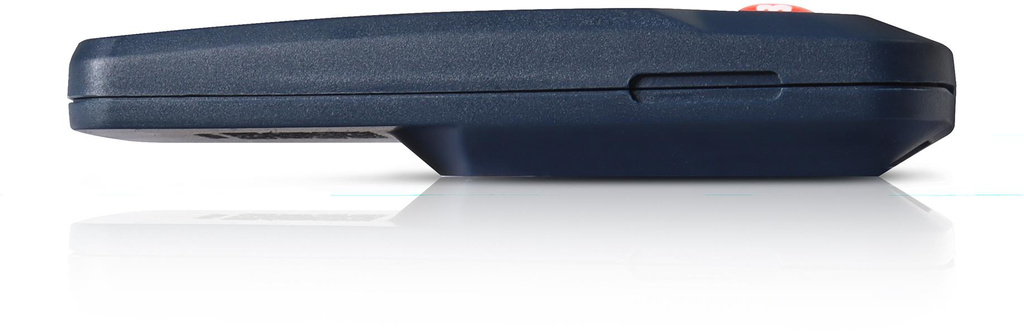

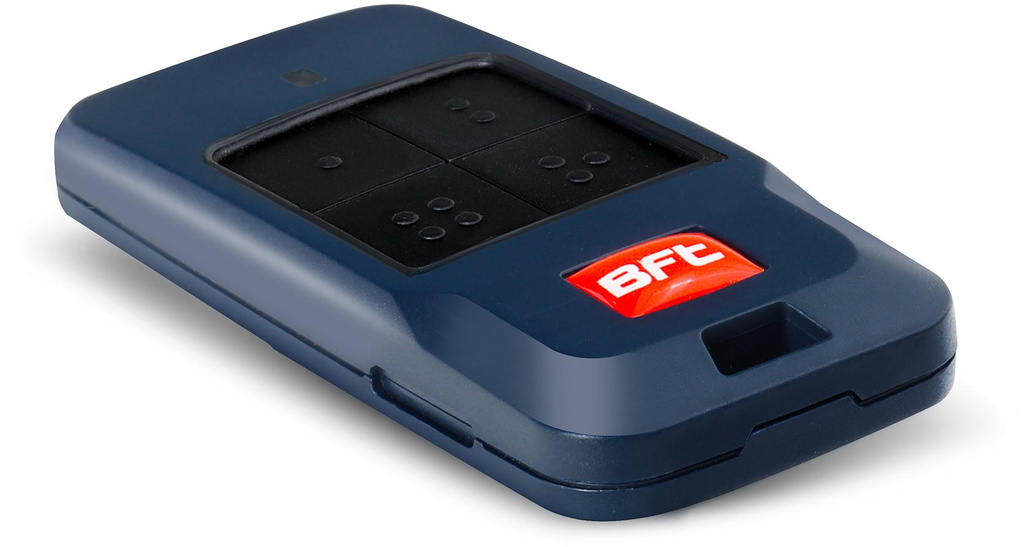

- Mitto COOL C4 remote control (4-channel)
- KompLet mounting accessories

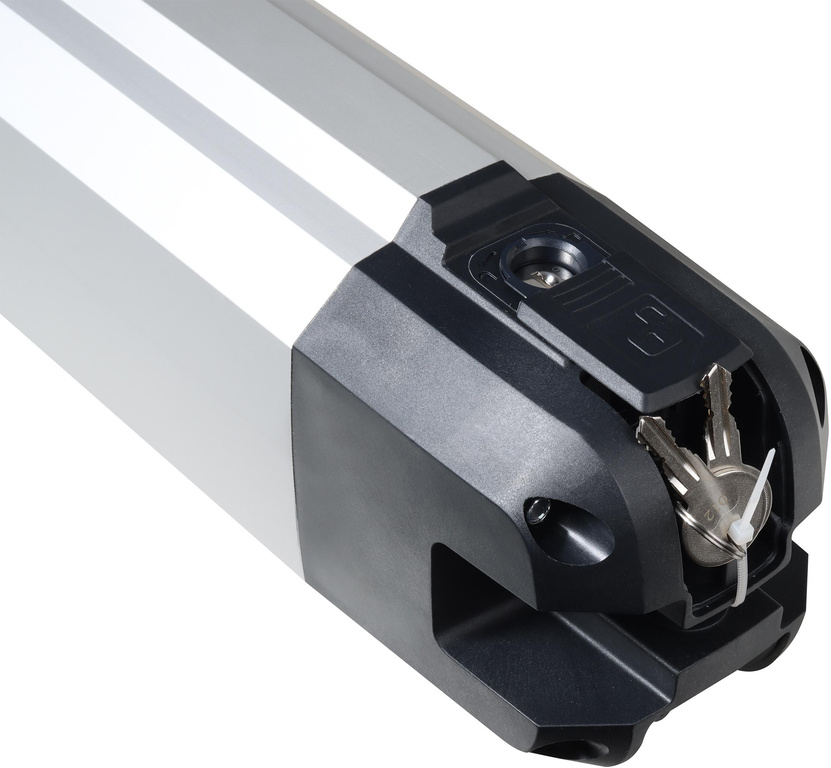

- Keys for decoupling the drives
Note: SFR brackets are not part of the kit.
Technical data
| Power supply | 230V ±10% 50Hz |
| Motor | 24V |
| Power consumed | 40W |
| Max. wing length | 4 m |
| Max. wing weight | 700 kg |
| Opening time | 20 s |
| Working stroke | 400 mm |
| Max. opening angle | 124° |
| Limit switches | magnetic |
| Protection class | IP X4 |
| Operating temperature | -20°C to +55°C |
| Operating mode | 80 cycles/day |
| Locking type | mechanical |
| Obstacle detection | D-Track (electronic) |
| Control unit | Thalia BT A80 DUO |
| Wicket function | YES |
| AutoSET (self-learning) | YES |
Summary
BFT PHOBOS BT B40 KIT PL is a compLety professional swing gate automation kit that combines precise operation with security and easy installation. It is ideal for domestic and residential applications.
brand=BFT
model=PHOBOS BT B40 KIT PL
type=Gate opener set
voltage=230V
motor_voltage=24V
power=40W
max_wing_length=4m
max_wing_weight=700kg
control_unit=Thalia BT A80 DUO
protection_class=IPX4
temperature_range=-20°C to +55°C
appLication=Swing gates
connectivity=U-Link compatible
coil=No
warranty=5 years
return_policy=30 days
FAQ (customer)
- Q: Does it include installation accessories? A: Yes, basic mounting accessories are included.
- Q: Can it be used outdoors? A: Yes, the housing is weather-resistant.
- Q: Is it compatible with smart home systems? A: It can be expanded via U-Link technology.
- Q: How long is the warranty? A: The warranty period is 5 years.
- Q: Is it easy to install without professional help? A: It’s designed for quick installation, but a certified installer is recommended.
FAQ (expert)
- Q: What communication protocol is supported? A: It supports U-Link and optional B EBA modules.
- Q: What’s the nominal input voltage tolerance? A: ±10% of rated voltage.
- Q: Is firmware upgrade available via USB or OTA? A: Yes, depending on control unit version.
- Q: What’s the IP protection rating? A: IPX4.
- Q: Can it be integrated into an existing BMS? A: Yes, with U-Link extension modules.
