Set Nice WALKY 2024 MyGO for swing gates

Set Nice WALKY 2024 MyGO for swing gates

• Purpose

  The Nice WALKY 2024 kit is a compact and modern solution for the automation of swing gates of delicate construction (such as gates made of PVC or wood).
  The set is designed for gates with a maximum length of one leaf of up to 180 cm and a maximum weight of a leaf of up to 100 kg, which makes it possible to automate a gate with an entry light of up to 360 cm and a total weight of up to 200 kg.

  Thanks to its small size, it will be perfect for installation on narrow posts (as small as 10 cm wide), including very tight corners (min. 80 mm hinge seating depth).

  ---

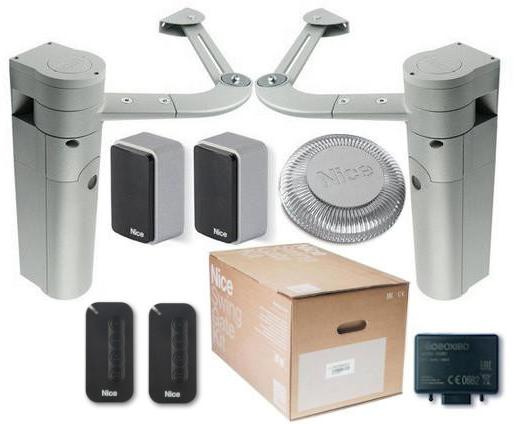

  The set includes

  • 1 × Drive WL1024C with built-in control panel WLA1 (BlueBus)

  • 1 × Drive WL1024 (without control panel)

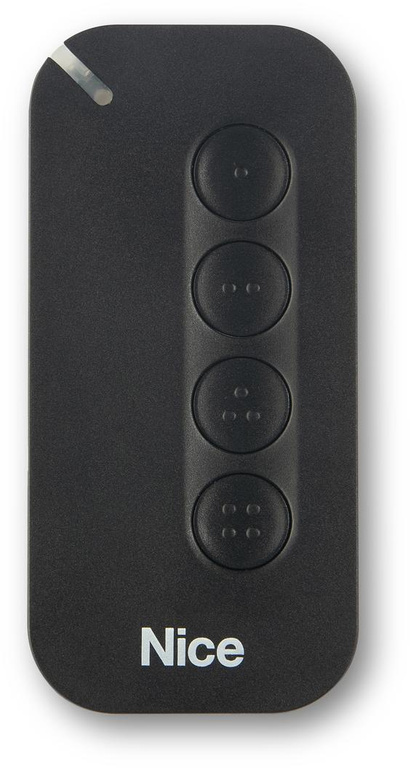

  • 2 × MyGO4 four-channel remote controls

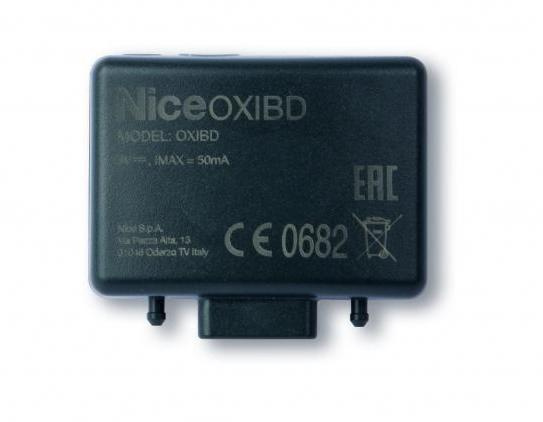

  • 1 × OXIBD radio receiver

  • 1 × WLT 12V signaling lamp (LED)

  • 1 × Set of EPMB (BlueBus) photocells

  • Set of mounting elements

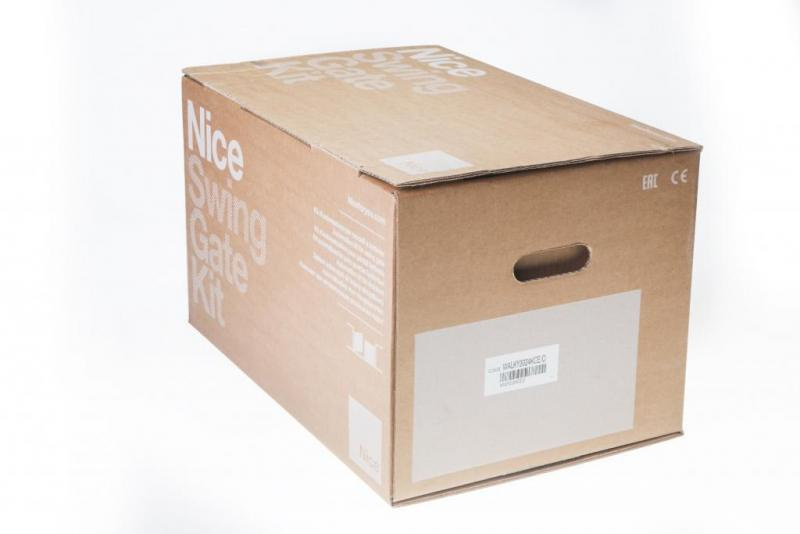

  • Original manufacturer's packaging

  ---

  Key features of the set

  • Ideal for wickets and lightweight gates - especially made of wood and PVC

  • Compact actuators - can be mounted even on very narrow posts

  • Very fast operation - full opening time is only 7 seconds (under optimal conditions)

  • Easy installation - pivoting brackets, simplified installation

  • BlueBus - communication with peripheral devices via two wires

  • 4 speed levels, smooth start and release

  • Wicket function - partial opening of one leaf

  • Automatic closing with adjustable delay

  • Quiet and precise operation - ideal for lightweight construction

  • Emergency power supply from PS424 battery (optional)

  • Compatible with systems: OPERA, SOLEMYO, PRO-VIEW, O-View

  • Safety: overload system, phototest function, continuous device monitoring and self-diagnosis

  ---

  WLA1 control panel - main functions

  • Auto-programming of gate end positions

  • Automatic recognition of safety devices (NO / NC / 8.2 kΩ)

  • Adjustable sensitivity level

  • Programming of pause time and speed of actuators

  • Radio interface compatible with SM, OXIBD modules

  • Stand-by operation - low energy consumption, possibility of power supply from solar kit

  ---

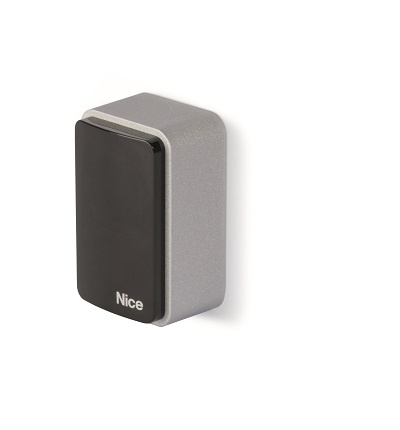

  EPMB (BlueBus) photocells

  • Range up to 30 meters

  • Housing resistant to weather conditions

  • Aesthetically pleasing appearance - fit into modern fences

  • Quick installation thanks to 2-wire BlueBus communication

  • Possibility to install a second line of photocells on aluminum posts (50 cm or 100 cm - optional)

  ---

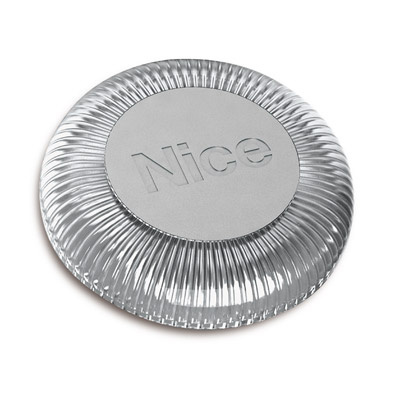

  Signaling lamp Nice WLT 12V (LED)

  • Power supply: 12V (constant or variable)

  • Built-in dusk sensor - the lamp turns on automatically after darkness

  • Lighting mode: continuous light (standard) or pulsating light (when connected to BlueBus control panel)

  • Can be mounted in two positions - illumination in different directions

  • Can be used as a warning light or spot light for the driveway

  • Compatible with FLO, FLOR, ONE, SMILO, Nice WAY series remote controls

  ---

  Technical specifications (WL1024)

  Parameter	Value
  Power supply / motor supply	230V / 24V
  Max. wing length	180 cm
  Max. wing weight	100 kg
  Opening time	7 seconds
  Degree of protection	IP44
  Working temperature	from -20°C to +50°C
  Dimensions of the drive	compact - for 10 cm posts
  Operation from an emergency battery	Yes (PS424 - optional)
  Communication	BlueBus, OXIBD, O-Code
