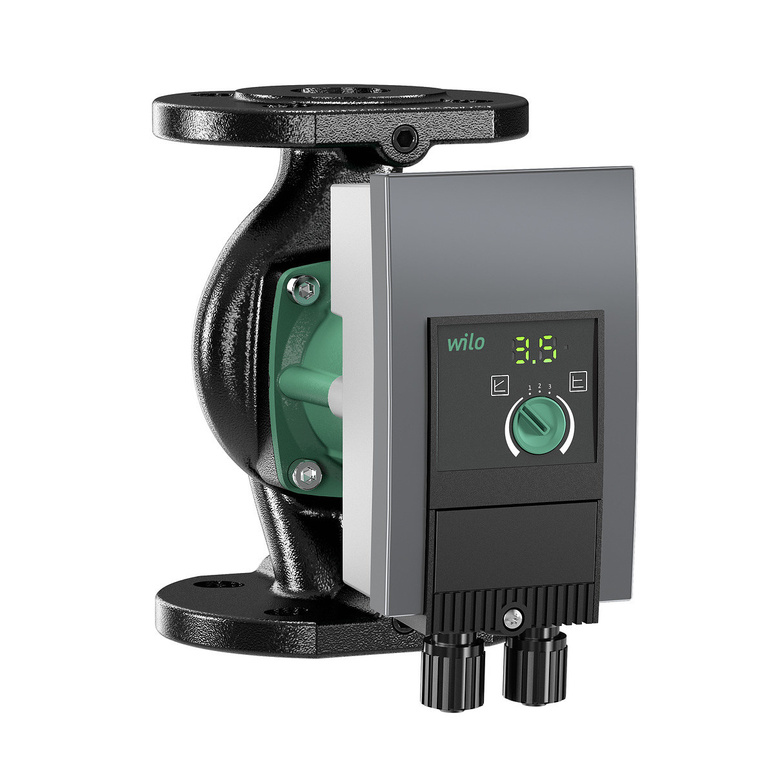

Wilo-Yonos MAXO 40/0.5-4 PN 6/10
The Wilo-Yonos MAXO 40/0.5-4 PN 6/10 is a high-performance electronic circulating pump for heating, air-conditioning and closed refrigeration systems, designed for operation with heating water and water-glycol mixtures. The device is characterized by simple operation through the green button function, high energy efficiency and compact design for easy installation and service.
- Electronic capacity control with Δp-c, Δp-v and constant speed modes (3 gears).
- Temperature range of the pumped medium from -20°C to +110°C, with the possibility of using water-glycol mixtures.
- Maximum operating pressure up to 10 bar (PN 6/10) and maximum head up to 4 m.
- Spinning rotor motor, resistant to blocking currents, with overload protection and automatic unlocking.
- Clear LED display showing current power consumption in watts and lift height in meters.
- Compact design with DN 40 connection ferrules for easy integration into existing installations.
Applications and control functions
The Wilo-Yonos MAXO 40/0.5-4 PN 6/10 pump is designed for water heating circuits according to DIN/EN, air-conditioning systems and closed cooling circuits in residential and commercial buildings. It can pump heating water according to VDI 2035, cooling water and water-glycol mixtures, whereby a suitable operating point must be selected for high glycol percentages. Electronic control allows the pump to be selected according to the characteristics of the system: Δp-c (constant differential pressure) mode for volume-controlled systems, Δp-v (variable differential pressure) mode for systems with thermostatic radiator valves, and constant speed mode (n = const) with three levels for systems with stable operating conditions.
The pump has protective functions, including automatic unlocking of the impeller after standstill, built-in motor overload protection and a venting function. With a tidy control panel with a single knob, the user can set the required head and control mode, while LEDs indicate current settings and possible error conditions. The design is suitable for installation in horizontal and vertical pipelines, according to the flow direction marked on the pump body.
Construction and materials
Wilo-Yonos MAXO 40/0.5-4 PN 6/10 is a wet rotor pump in which the motor and hydraulics are a compact unit mounted between the pipeline connection flanges. The pump body is made of gray cast iron, suitable for use in heating and cooling systems, while the impeller is designed from wear-resistant plastic, ensuring quiet operation and high efficiency. The shaft is made of corrosion-resistant material (e.g. stainless steel/ceramic, depending on the design), supported by plain bearings lubricated by the pumped medium.
Sealing between the wet part and the motor stator is realized by a separating sleeve made of thin-walled, corrosion-resistant material, which ensures hermetic separation of the stator winding from the medium. The stator is equipped with electrical insulation of ciepLn class to match the conditions of expLoatation in heating systems. The entire outer casing and junction box are designed to allow easy access to the terminal block and to provide a degree of protection against external agents suitable for installation in technical rooms.
| Parameter | Wilo-Yonos MAXO 40/0.5-4 PN 6/10 |
|---|---|
| Medium | Heating water according to VDI 2035, water-glycol mixtures, cooling water |
| Temperature range of the medium | from -20°C to +110°C (depending on pressure characteristics and proportion of glycol) |
| Type of pump | Circulation pump with wet rotor, electronically regulated |
| Control modes | Δp-c (constant differential pressure), Δp-v (variable differential pressure), constant speed operation (3 speeds) |
| Maximum head | up to 4 m |
| Capacity range | up to approx. 4-5 m³/h (depending on operating point and settings) |
| Nominal diameter of connections | DN 40 |
| Connection | Flanged, PN 6/10 |
| Maximum operating pressure | 10 bar (PN 6/10) |
| Motor type | Spinning rotor motor, directly coupled to the hydraulics, resistant to blocking currents |
| Motor protection | Built-in overload protection, automatic unblocking of the rotor |
| Protection functions | Automatic venting, blockage protection, fault indication |
| Power supply | 1~230 V, 50 Hz (standard design) |
| Input power range | low energy consumption due to electronic control (exact values according to data sheet) |
| Degree of protection | IP according to design (typically IPX4D / IP44 for indoor installation applications) |
| Energy efficiency class | High-efficiency circulating pump that meets ErP requirements for electronic pumps |
| Display | LED: current power consumption (W), head (m), error states |
| Operating elements | One button/knob (green button) for operating mode selection and head setting |
| Installation orientation | In horizontal or vertical pipeline; shaft axis should be horizontal |
| Bearing lubrication medium | Pumped medium (water / water-glycol mixture) |
| Pump casing material | Gray cast iron |
| Impeller material | Corrosion-resistant plastic |
| Shaft material | Corrosion resistant material (e.g. stainless steel/ceramic - depending on catalog design) |
| Sealing between wet part and stator | Separation sleeve made of non-corrosive material |
| Ambient temperature | Typically 0°C to +40°C (in accordance with the permissible ambient temperature for circulation pumps in technical rooms) |
| Minimum suction pressure | Adapted to the temperature of the medium; ensure no cavitation according to the NPSH chart in the documentation |
| Noise level | Low noise emissions typical of wet rotor pumps (specific values according to data sheet) |
| Electrical mounting | Cable connection to terminal strip in junction box; overcurrent protection on supply side required |
| Compliance with standards | Compliance with ErP requirements for circulating pumps, electrical and pressure safety standards for installation equipment |
| Installation type | Heating, air-conditioning, closed refrigeration systems in residential and commercial buildings |
| Application restrictions | Do not use for chemically aggressive, solids-containing or highly contaminated media; selection for high glycol content requires consideration of viscosity and density variations |
Wilo-Yonos MAXO 40/0.5-4 PN 6/10 is a modern circulating pump that, thanks to its electronic control and high efficiency, helps reduce energy consumption in heating and cooling systems. Thoughtful design and intuitive operation make it a reliable and convenient solution for daily expLoatation in both residential and commercial buildings.
