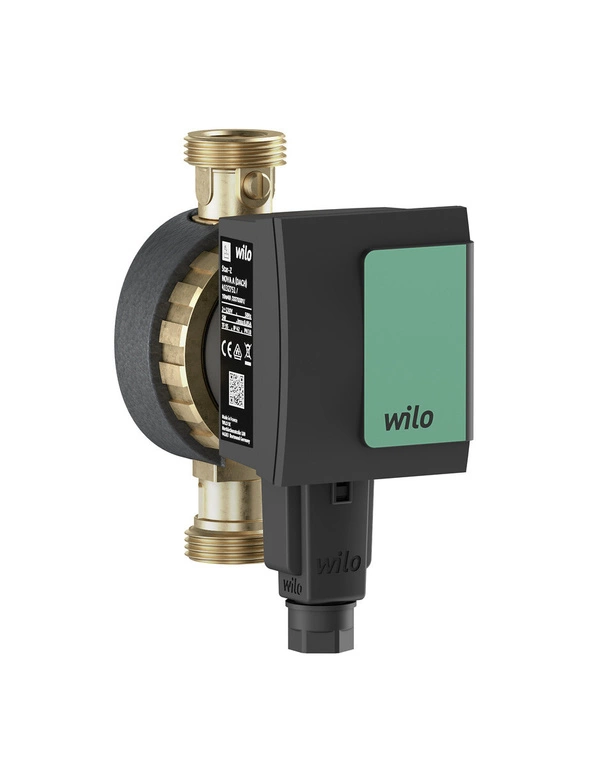

Circulation pump Wilo-Star-Z NOVA A
Circulation pump Wilo-Star-Z NOVA A
This circulation pump is designed exclusively for domestic hot water and is ideal for single-family buildings. The glandless version of the Wilo-Star-Z NOVA A is mounted directly on the pipeline, which allows efficient circulation of hot water in heating systems. The unit is equipped with a synchronous motor resistant to current at blockage, which is characterized by high starting torque
The pump body is made of brass (CW617N) and the impeller is made of noryl, while the shaft is made of ceramic material. The pump features very low power consumption - from 3 to 5 watts. As standard, the unit is equipped with a thermal insulation cover and has a Rp ½ body thread. It also comes with a ball shut-off valve and a check valve with G1 thread
Performance data
| Parameter | Value |
|---|---|
| Max. temperature of the pumped liquid (Tmax) | 95 °C |
| Min. temperature of the pumped liquid (Tmin) | 2 °C |
| Ambient temperature (min) | 2 °C |
| Max. ambient temperature | 40 °C |
| Ambient temperature range | +2 ... +65 °C |
| Max. operating pressure (PN) | 10 bar |
| Max. permissible hardness in circulating systems | 3.57 mmol/l (20 °dH) |
Motor data
| Parameter | Value |
|---|---|
| Interference generation | EN 61000-6-3 |
| Interference immunity | EN 61000-6-2 |
| Mains connection | 1~230 V, 50 Hz |
| Power consumption (P1 max) | 5 W |
| Speed max (nmax) | 3000 1/min |
| Rated current | 0,05 A |
| Motor protection class | IP42 |
| Cable gland | 1 x PG11 |
Materials
- Pump casing: Brass, CW617N
- Impeller: PPE/PS-GF30
- Shaft: Ceramic material
- Bearings: Sintered carbon, impregnated with resin
Installation dimensions
- Suction side connection: G 1
- Discharge side connection: G 1
- Installation length L0: 138 mm
Summary
The Wilo-Star-Z NOVA A hot water circulation pump is a reliable solution for single-family buildings, guaranteeing efficient hot water circulation with low power consumption (3-5 W). Its robust design, made of brass and high-quality materials, combined with intelligent features (such as high starting torque, automatic venting and thermal insulation cover) ensure long-lasting and energy-efficient operation in heating systems
Article number: 4132761
