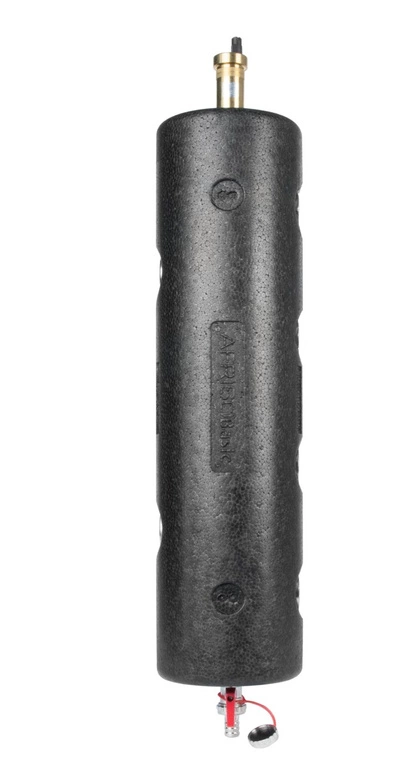

Insulated hydraulic coupling BLH 850 with manifold 70 kW 6x GW G 1 inch 2x GW G 1/2 inch vent automatic drain valve

Insulated hydraulic coupling BLH 850 with distributor for two circuits - 70 kW

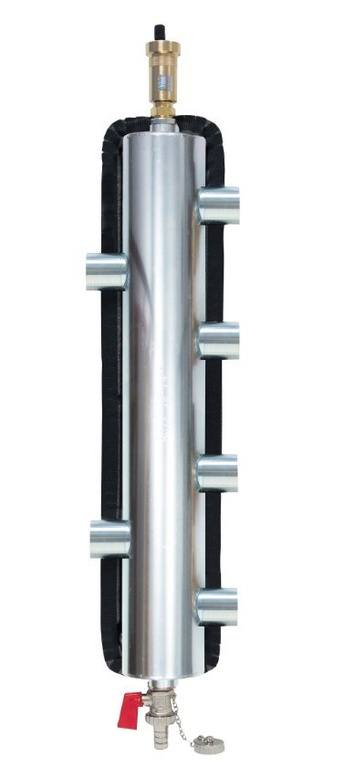

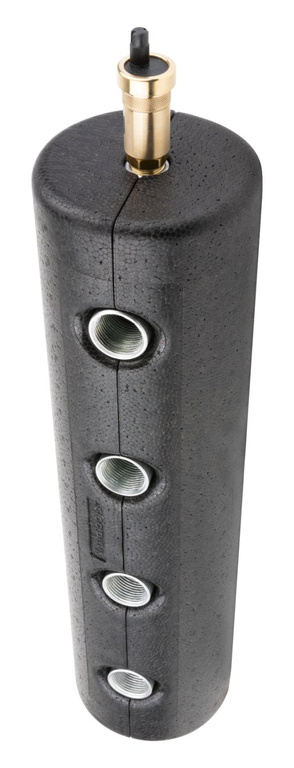

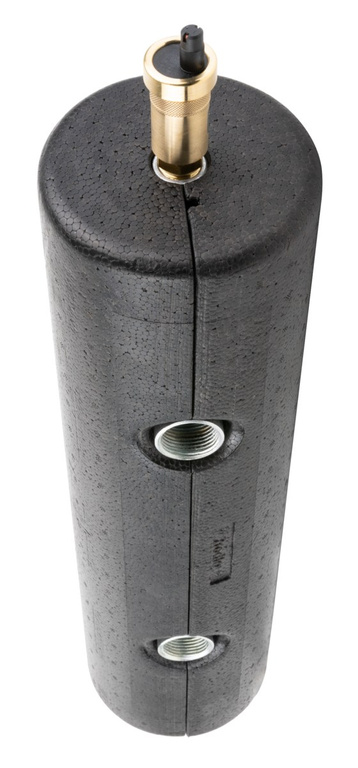

Hydraulic coupling BLH 850 with built-in manifold for two circuits is an advanced solution for heating systems that require not only hydraulic coupling, but also the separation of the circuit into two lines. The unit is equipped with thermal insulation to minimize heat loss, and the manifold makes it possible to connect two independent circuits from one side of the coupling. The BLH 850 is suitable for systems of approximately **70 kW**.

Application

• Medium power boiler plants (~70 kW) requiring separation into two circuits
• Heating systems with multiple zones or varying heat demand
• Systems where hydraulic separation of circuits and parallel operation of several lines is required
• Heating circuits with thermal insulation to reduce heat loss

Technical data

Advantages and distinctive features

• Combines the function of a hydraulic coupling and a manifold in one device

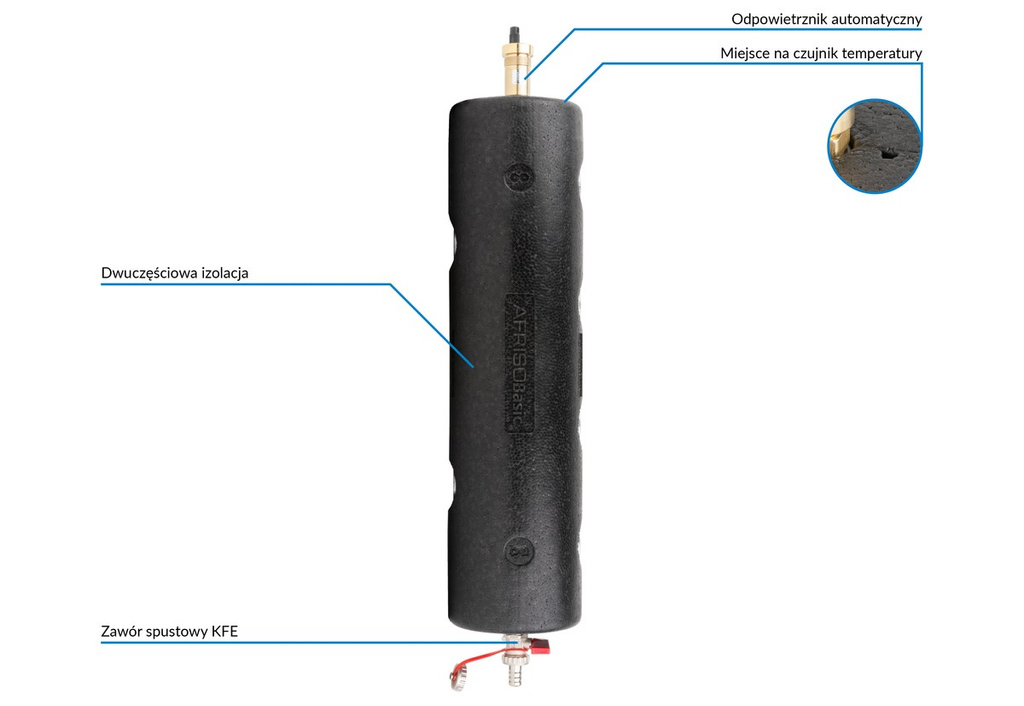

• Thermal insulation - reduced heat loss during operation
• Installation flexibility - two independent circuits from one unit
• Facilitated management of multiple heating zones
• Robust design - compliance with Afriso manufacturer's specifications

Installation and operation tips

• Ensure that the manifold and circuits are properly connected according to the flow direction
• Maintain proper insulation during installation - avoid thermal damage

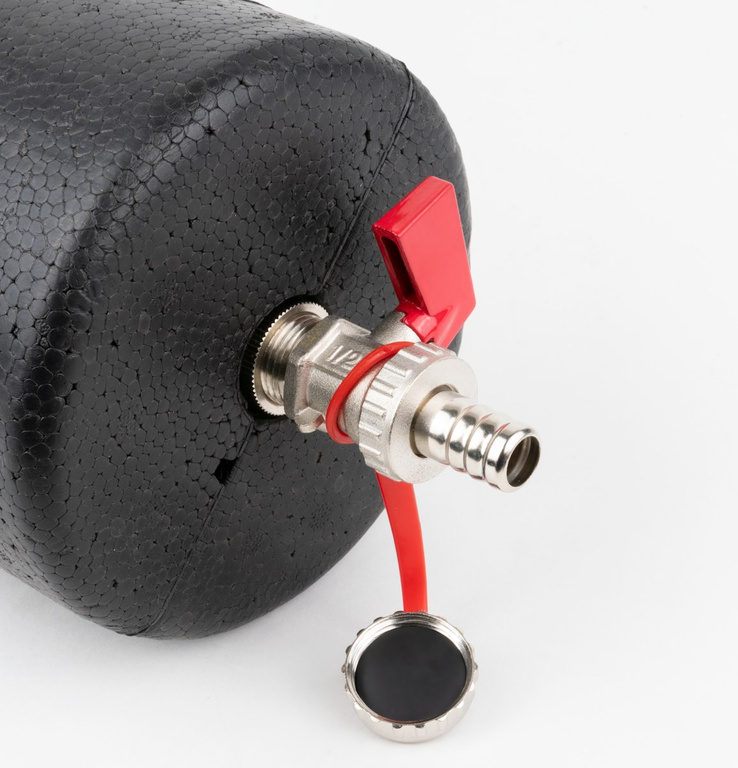

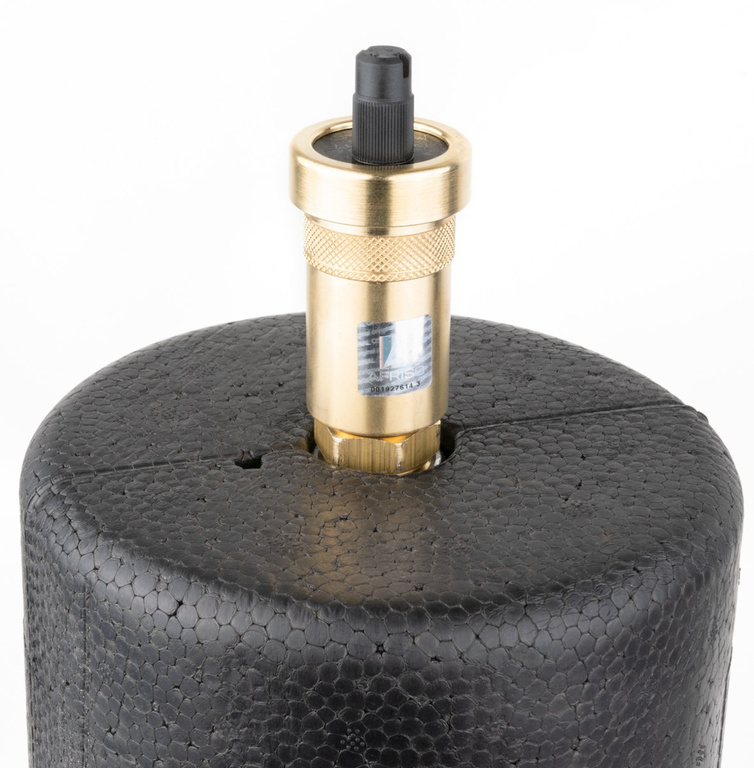

• Ensure access to valves, vents and lines when maintenance is required
• After commissioning the system, bleed all circuits
• Regularly check the tightness and operation of the unit during operation
