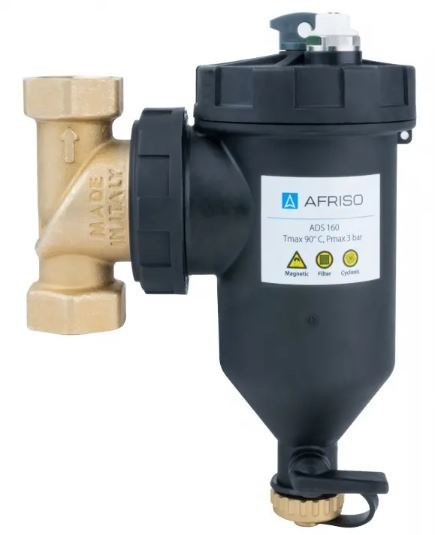

Magnetic dirt separator ADS 160, movable GW connection G 1 inch, Kvs 6.9 m3/h
Magnetic dirt separator ADS 160, movable GW connection G 1 inch, Kvs 6.9 m3/h
Magnetic dirt separator ADS 160, movable GW connection G 1 inch, Kvs 6.9 m3/h
Magnetic dirt separator ADS 160, movable GW connection G 1 inch, Kvs 6.9 m3/h

Magnetic dirt separator ADS 160, movable GW connection G 1 inch, Kvs 6.9 m3/h

+ Add to compareAdd to shopping list
  • Magnetic dirt separator ADS 160 with movable GW G 1 inch connection, Kvs 6.9 m3/h, removes solid impurities from CO and refrigeration systems. It works on the principle of mechanical and magnetic filtration,
Size
P/N:

131,20 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
Product available in our warehouse
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in our warehouse
Shipment
Cheap and fast delivery
14 days for easy returns
This store offers an additional guarantee of up to €20,000 and Trusted Shops insurance. You receive the purchased item or a refund.
After purchase you will receive pts.
Brand
AFRISO
Symbol
77 160 00
Producer code
5902510007577
Series
Afriso ADS
Warranty
36 Months Warranty
Manufacturer's Index
7716000

Magnetic dirt separator ADS 160 with insulation

Magnetic dirt separator ADS 160 with insulation is a device designed for heating and cooling systems, usually installed on the return line before the heat source. It works through a double filtration system: **magnetic and mechanical**, which allows it to effectively capture metallic particles and other impurities suspended in the medium.

Application

  • Central heating and cooling installations
  • Installation before the heat source on the return of the system
  • Systems where it is necessary to clean the medium of sediment and metallic particles
  • Systems with water or water-glycol mixture (up to 50% concentration)

Technical data

Connection typeMovable, 2 × GW G1"
Kvs6.9 m³/h
Recommended flow rate2.1 m³/h
Maximum operating pressure3 bar
Maximum medium temperature90 °C

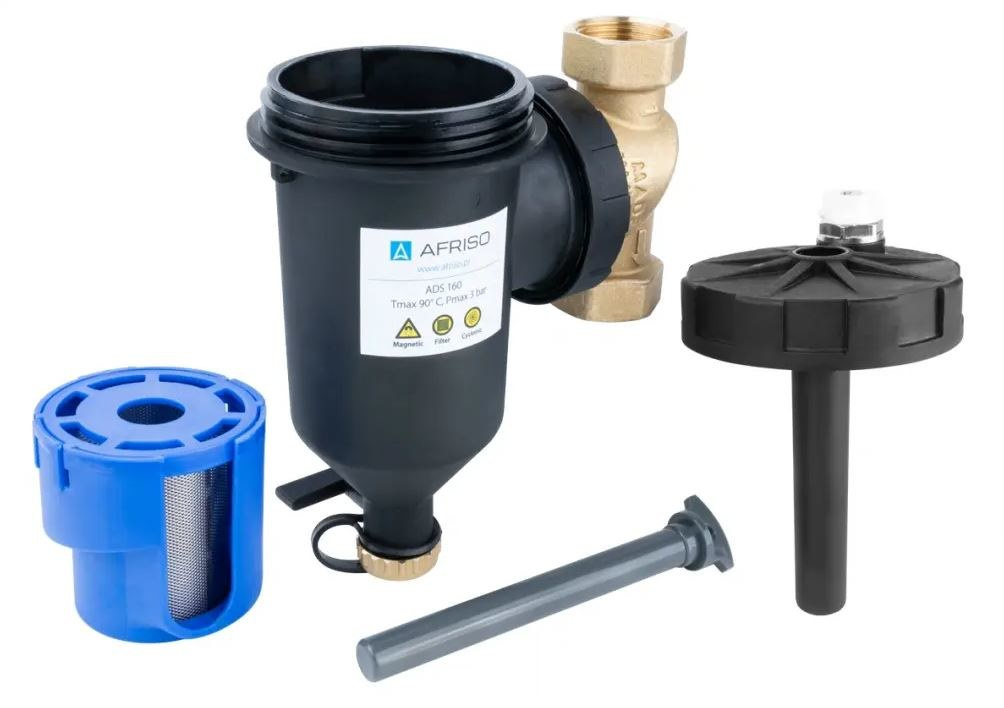

Materials and constructionPolyamide (PA66) housing, EPDM seals, stainless steel filter nets (500 µm and 800 µm), neodymium magnet of approx. 14,000 Gs

Advantages and special features

  • Dual filtration system: mechanical and magnetic - effective purification of the medium
  • Thermal insulation to reduce heat loss
  • Rotatable connection - easy installation in vertical and horizontal systems
  • Easy removal of sediment via drain valve
  • Seal protects the magnet from unauthorized removal
  • Provides protection for the pump and other equipment from wear caused by contamination

Installation and operation notes

  • Always install the separator with the drain valve facing downward
  • It is recommended to install shut-off valves before and after the separator for easier maintenance
  • Manual air vent is used to remove air after filling the system
  • After some time of operation, the 500 µm filter mesh can be replaced with 800 µm in older systems
  • The concentration of glycol in the system should not exceed 50% to maintain the effectiveness of magnetic separation
