  • The PrimoBox AZB 355 mixing kit is a compact hydronic unit in a cabinet, used to separate a heat source from 2-3 heating zones, with the option of direct or mixed supply.
Size
P/N:

1 633,11 EUR

incl. VAT / 1pcs.
Lowest price in 30 days before discount: / pcs.
Regular price: / pcs.
List price:
You can buy for pts.
of
You can also buy using:
Product available in our warehouse
Contact the shop staff, in order to estimate time of preparing this product for shipment.
Product available in our warehouse
Shipment
Cheap and fast delivery
14 days for easy returns
This store offers an additional guarantee of up to €20,000 and Trusted Shops insurance. You receive the purchased item or a refund.
After purchase you will receive pts.
Brand
AFRISO
Symbol
76 355 00
Producer code
5902510003906
Series
Afriso PrimoBox
Warranty
36 Months Warranty
Manufacturer's Index
7635500

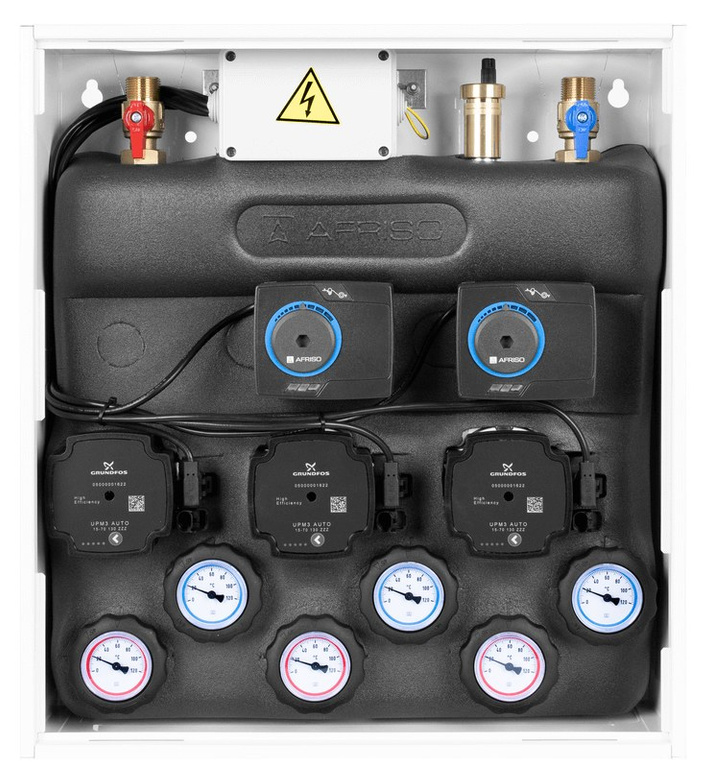

PrimoBox AZB 355 with hydraulic coupling - mixing set of 3 circuits

PrimoBox AZB 355 is a comprehensive hydraulic solution supplied in a cabinet housing, combining three circuits: - one circuit without mixing (direct), - two circuits with ARV mixing valves and ARM actuators. The kit includes a hydraulic coupling to ensure pressure stability between circuits. The set is dedicated to systems with a maximum power of 35 kW.

Application

  • Installations where temperature control is needed in several circuits simultaneously
  • Heating systems requiring proper distribution, mixing and hydraulic stabilization
  • New and modernized boiler plants where compactness and efficiency are important
  • Facilities with a requirement for independent temperature control in different zones

Technical data

Circuit 1Direct (without mixing)
Circuits 2 and 3ARV valve + ARM ProClick actuator (mixing set)
Hydraulic couplingYes - included
Maximum power of the set35 kW
Boiler connectionsG ¾"
Pressure of mediumMax 4,5 bar
Temperature of mediumUp to 95 °C

Advantages and distinctive features

  • Built-in hydraulic coupling - stabilization between circuits
  • Three circuits in one compact housing - space saving
  • Flexible temperature control in two mixing circuits
  • Prefabrication - quick installation and reduction of installation errors
  • Compatible with ARV / ARM ProClick system

Installation and operation tips

  • Position the kit to allow access to the valves and pumps
  • Bleed and check the entire system for leaks before commissioning
  • Configure actuator movement limiters for proper ranges
  • Avoid operating outside the allowable pressure and temperature parameters
  • Regularly check the condition of connections, pumps and valve operation
